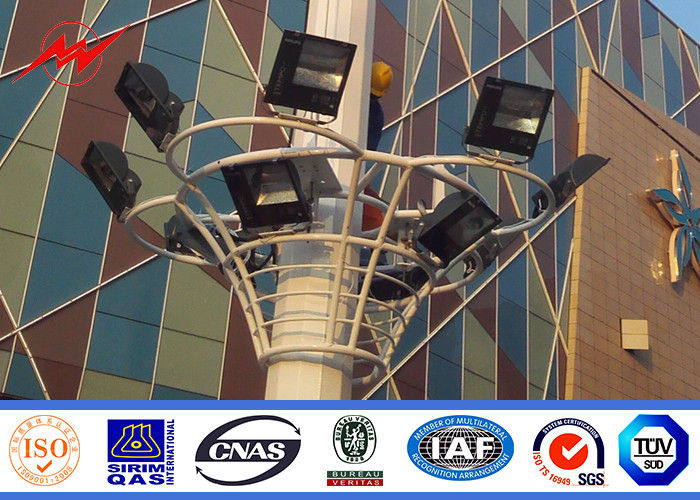

Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel

China Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel supplier
Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel supplier Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel supplier Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel supplier Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel supplier

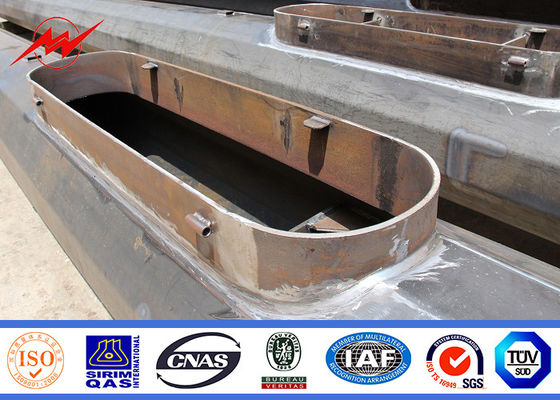

Large Image :  Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: High Mast Poles Application: Seaport Lighting
Wind Speed: 160km/h Galvanization Thickness: Average 86μm
Thickness: 1 Mm To 30 Mm Lift Time: 50 Years
High Light:

high mast lighting pole

,

Sports Light Poles

 Slip Joint Bitumen 3mm 20m High Mast Poles with Round Lamp Panel Wind Speed 30m/s





 Specifications:



Type

Street Lamp pole, lamp post . Lamp column

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123,

color polyester power or any other standard by client required.

Standard

Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

Suit for

Highway
Roadway
Residential subdivisions
Commercial development

Option

Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.

Production Process

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )

→Dimension verify →Flange welding →Hole drilling →Calibration

→Deburr→Galvanization or powder coating ,painting →Recalibration

 →Thread→Packages





 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm

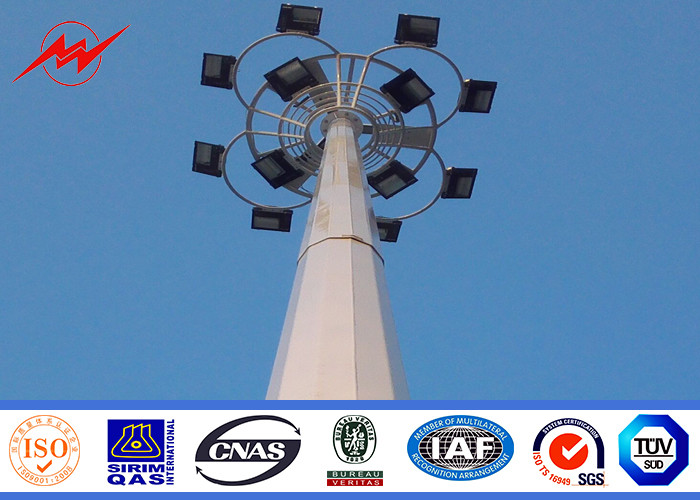

  Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel 0





 Raising-and-Lowering System Types
 A:Single Drum 150/300/600/1000KG
 B:Double Drum 800/1000KG
 C: Dual Hanger 150/300/600/800/1000KG
 D:Double Hoist Main:600/1000KG Sub:150KG

 Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel 1





 Company Introduction:
 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.




 After 20 years of development, our company products are exported to overseas. Pakistan, Germany,  Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad  market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales,  which made us become one of the leading export enterprises in china.

 Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel 2
