Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete

China Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete supplier
Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete supplier Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete supplier Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete supplier Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete supplier

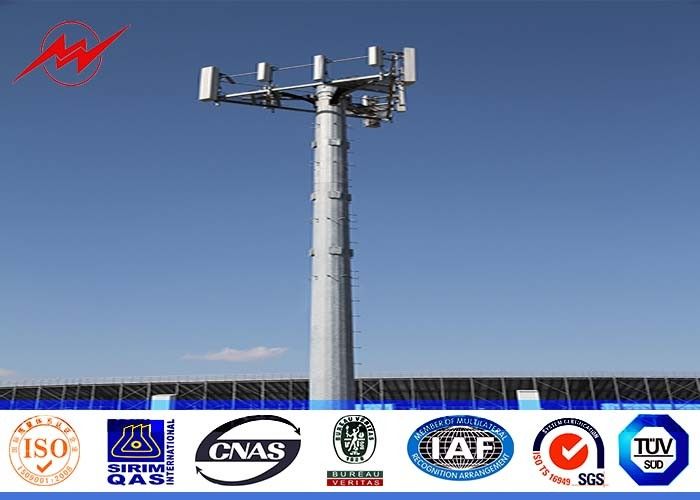

Large Image :  Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Mono Pole Tower

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Mono Pole Tower Height: 60feet To 80feet
Footprint: 18-72 Inches Types Of Base: Poured Concrete, Rock Bolt, Pile
Welding Standard: AWS D 1.1 /BS EN 1011-1,BS EN 1011-2 Galvanization Standard: ASTM A 123
High Light:

monopole transmission tower

,

monopole antenna Tower

80ft Mono Pole Tower galvanized single member self supporting slip sleeve flange joint for GSM monopole cell tower





 Specifications:



Standard Tower Characteristics Purpose
Series MP230 15-30 m Telecommunication - designed for one operator
Series MP300 18-24 m Telecommunication - designed for two operators
Series MP440 15-30 m Telecommunication - designed for three operators
Series MP1500 30-48 m Telecommunication - designed for four operators or 15 m2 of windages for antennas

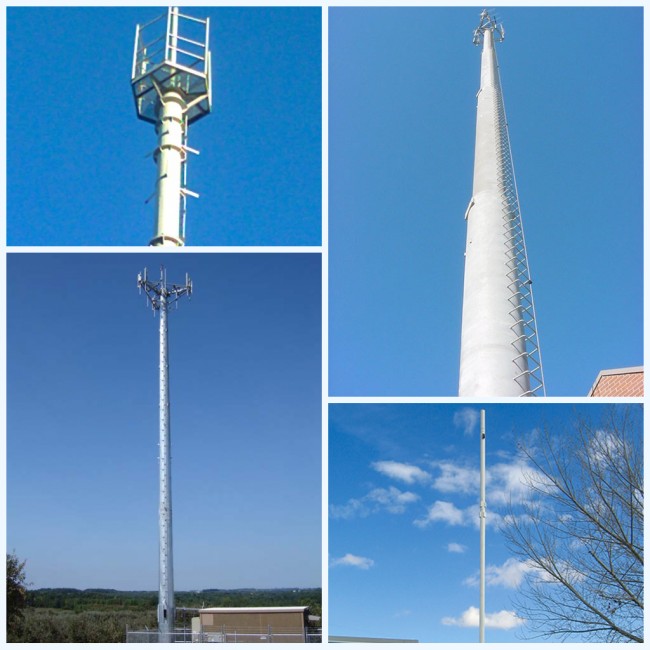

Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete 0

Quick Detials



Monopole Towers are used for a variety of communication applications and are ideal for use when zoning is difficult. They are the least intrusive and easiest communication towers to erect making them one of the most popular tower types in the wireless communication industry. Monopoles can also be designed as concealment poles: pine poles, flag poles, palm poles and other stealth towers. Many uses include cellular monopoles, wireless internet monopoles, homeland security monopoles, two-way monopoles, and wind tower monopoles.



Monopole towers are developed for the telecommunication business as an alternative to the lattice tower. Its characteristics are a slim design without visible assemblings between the sections and a high load capacity with a small deflection in the top.

The monopole towers are made as 12 to 18 angular tubes with decreasing diameters. As an extra service the tower can be painted in an optional colour.



The monopole towers are designed for up to four operators without making the deflection exceed more than 1 degree. Standard monopole towers are delivered in heights up to 48 meters.

The monopole towers can be delivered with extra equipment such as a combined ladder and safety device system as well as an anti climb device in the bottom.



Single Member Self-Supporting Structures

Milky Way monopoles are single member self-supporting structures used in urban areas where space is limited. We offer steel tapered monopoles or flanged pipe poles depending on your communication application. All of our poles are custom-engineered to meet your specifications.



Slip-Sleeve Monopoles

Milky Way’s steel tapered monopoles are designed to carry wireless and microwave communication equipment. Fabricated in our state-of-the-art facilities, our monopoles are available 12, 16, or 18-sided and in heights that meet your specifications.

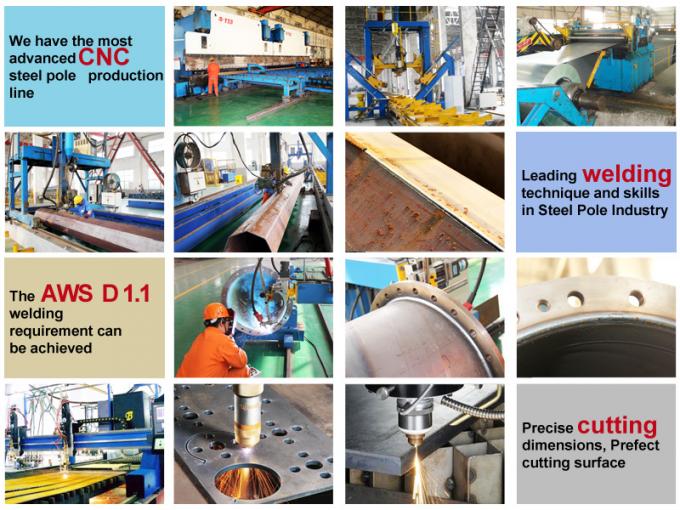

Workshop

Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete 1



Milky Way monopoles feature:

Minimum of 65 ksi high-strength steel

Slip-sleeve tapered sections

Steel templates to assure proper base bolt alignment

Step bolt working rings at handhole levels

Loop step bolts at all working points

Flanged Pipe Poles

Milky Way flanged pipe poles are capable of carrying a variety of communication applications. Internally and externally flanged, they are custom-engineered to heights that meet your specifications.



Our pipe poles feature:



Steel templates to assure proper base bolt alignment

Step bolt working rings at handhole levels

Loop step bolts at all working points



Recommended Use for Flange Monopole Towers:



GSM/CDMA Equipment
Video Surveillance Equipment
Wind Turbines
FM Radio
TV
Meteorological Equipment
Flood Light
Flag Poles
Traffic Control Cameras
Crime Prevention Video Surveillance

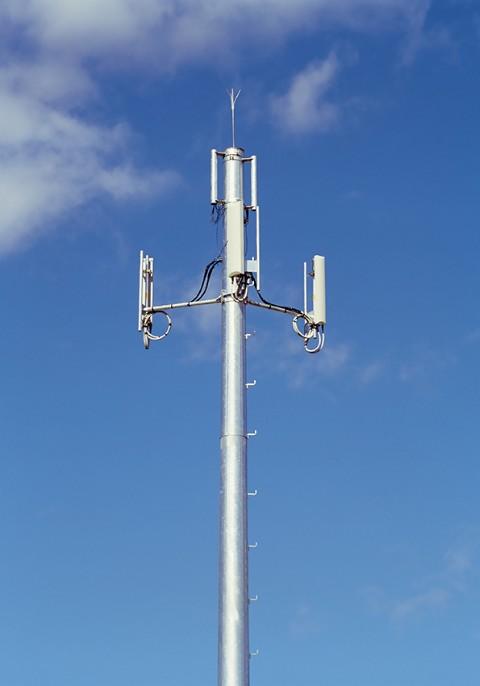

Mono Pole Tower Product

Slip Sleeve Tapered 80ft GSM Mono Pole Tower With Poured Concrete 2
