Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution

China Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution supplier
Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution supplier Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution supplier Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution supplier Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution supplier Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution supplier Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution supplier

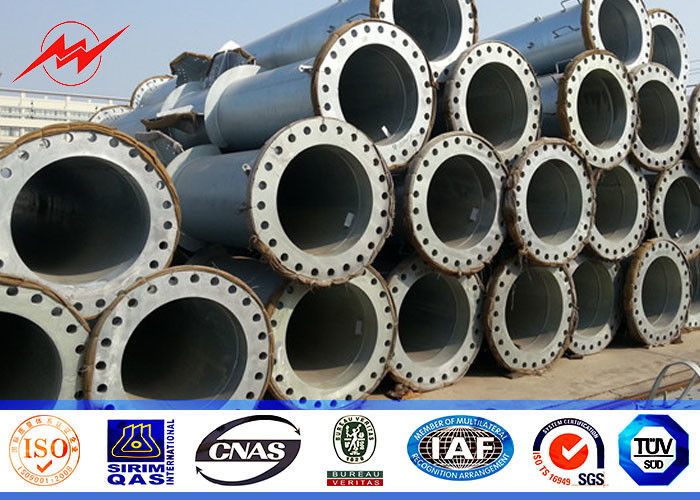

Large Image :  Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO/SGS/BV
Model Number: Single Circuit Electrical Power Pole For Transmission Line Project

Payment & Shipping Terms:

Minimum Order Quantity: one 40HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Contact Now
Detailed Product Description
Type: Straight Pole, Tensile Pole, Turn Pole Treatment: Galvanization
Wind Speed: 44m/s Torlance Of Dimenstion: +- 2%
Safty Factor: 1.8



Steel Transmission Galvanization Distribution Electrical Power Pole , Spun Prestressed Concrete Pole



Specifications



Material:

 Hot rolled steel, Q235,Q345,S235, or customized

Pole’s height

3m –15m

length

Within 16m once forming without slip joint

Wall thickness

2.5mm-20mm or optional

Pole's Shape:

Round, Polygonal, Octagonal, Conial

Arm type:

Single arm, Double arm, or as per cliens' request

Application:

road,avenue, street, expressway, park, square

Temperature range

-35 °C~+45 °C

Max wind velocity

Aganist wind pressure of 160Km/h

Base plate mounted

Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.

Ground mounted

The length buried underground as per customer’s requirement.



Specification for electric steel poles exported to Africa market

Electric Pole Specification-Congo
Height Load(KN) Top Diameter(mm) Bottom Diameter(mm) Wall Thickness(mm) Pole Shape Load Height(mm)
8M 2.5 100 210 2.75 8 6.2
8M 5 120 290 2.75 8 6.2
8M 6.5 130 330 2.75 8 6.2
8M 8 170 360 2.75 8 6.2
8M 10 180 405 2.75 8 6.2
10M 11 145 334 3 12 8
11M 6 120 246 3 12 8.9
11.8M 5 150 355 3 8 9.4
11.8M 6.5 180 400 3 8 9.4
11.8M 8 190 440 3 8 9.4
11.8M 10 190 450 3.5 8 9.4
11.8M 12.5 220 500 3.5 8 9.4
11.8M 16 230 560 3.5 8 9.4
11.8M 20 240 585 4 8 9.4
11.8M 25 260 655 4 8 9.4
11.8M 32 260 660 5 8 9.4







Introduction



Electric Power Tower includes angle steel tower, tapered tubular steel, transformer substation framework, power plant framework and so on.

Electric power tower is the steel structure frame of bracing electrical wires, keeping a sage distance of guild wires and buildings on the ground. According to appearance, the power tower can be divided to glass type tower, cat head type tower, Shang type tower, Gan type tower and doliform tower. On the basis of application, power tower can be separated to tension type tower, linear type tower, angle type tower, transposition type tower, terminal type power tower and crossing type power tower. The design feature of all tower is space truss structure, forming by single equilateral angle steel, making of material of Q235 (A3F) and Q345 (16Mn) and using black bolt of shearing force to connect pole parts. The tower is mainly consists of angle steel, connecting steel plate and bolt, some is component part of steel plate welding, as column foot. The simple tower part making the hot zincification anticorrosion, transportation, construction and erection is much easy. Usually use shackles on main pole of tower which the height is less than 60 meters for convenience of workers to ascend.



Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

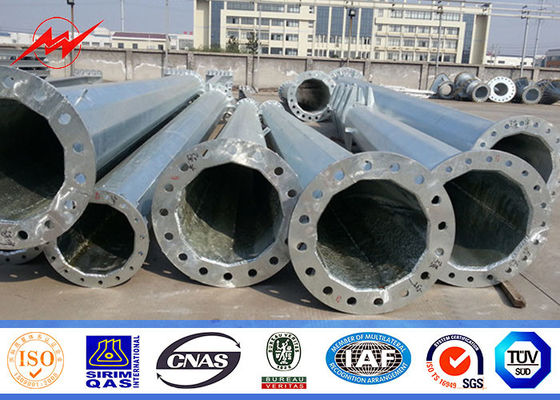

Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution







Main Features



1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5 Warranty : 30 years
6.Surface treatment :hot dip galvanization



Spun Prestressed Concrete Electric Pole Galvanization Transmission Line Steel Pole Distribution
