Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform

China Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform supplier
Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform supplier Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform supplier Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform supplier Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform supplier

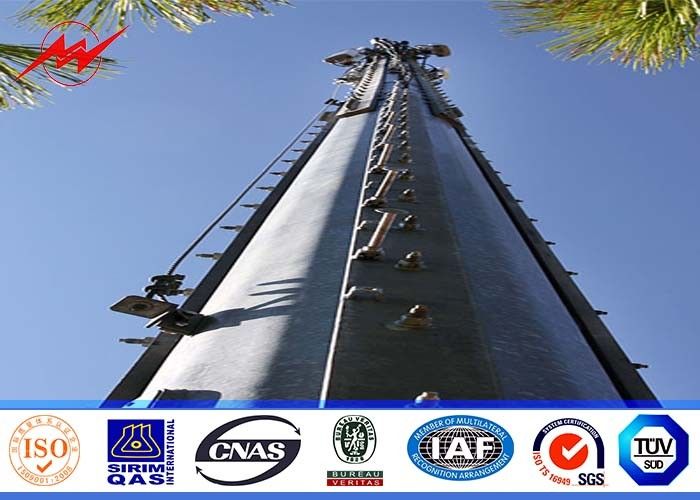

Large Image :  Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Mono Pole Tower

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Mono Pole Tower Material: Q345,Q235,Gr50
Structures: Self-supporting Tower Tower Type: Triangular Or Square
Welding Standard: AWS D 1.1 /BS EN 1011-1,BS EN 1011-2 Galvanization Standard: ASTM A 123
High Light:

monopole cell tower

,

monopole antenna Tower

160ft Single platform Mono Pole Tower steel structure for telecommunication lattice tower





 Specifications:



Standard Tower Characteristics Purpose
Q345 Material for MP230 15-30 m Telecommunication - designed for one operator
Q345 Material for MP300 18-24 m Telecommunication - designed for two operators
MP440 15-30 m Telecommunication - designed for three operators
MP1500 30-48 m Telecommunication - designed for four operators or 15 m2 of windages for antennas



Quick Detials for each part of Mono Pole Tower



Tubular Steel Construction

Monopoles are fabricated from domestic steel, meeting or exceeding the latest EIA criteria.



Hot Dip Galvanization

Zinc coating on all hardware and components meet EIA and ASTM-A123 standards.



Wind Force

Western's monopoles are designed to withstand winds of up to 105 mph. Monopoles requiring higher or lower wind or ice loads are custom engineered.



Durable Construction

Meets heavy duty industrial applications and comes with a five-year warranty on labor and materials.



Tamper Resistant

Climbing ladder anticlimb devices available.  Lockable access port prevents tampering. Coax, electrical power, and fiber optics are enclosed inside the structure preventing damage due to vandalism.



Ease of Maintenance

Platforms are designed for ease of access to cameras, microwave equipment, and electronics. Climbing ladder is enclosed in cage or can be equipped with an optional safety climb device.



Numerous Applications

Monopoles can be used in applications such as rail yard and intermodal facility security and in high-security areas such as prisons or defense installations. Monopoles have been used by the U.S. Border Patrol for border security.



Various Sizes, Heights, & Capacities

Please contact us with the tower requirements, and we will provide a proposal for each specific tower need.



Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform 0

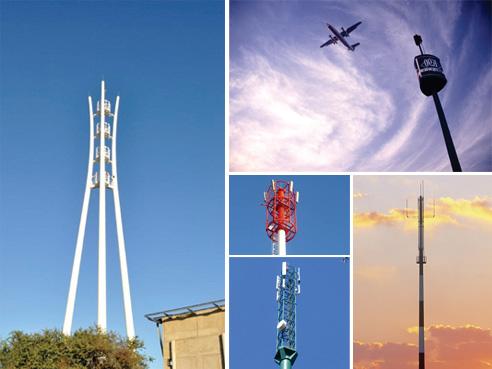

Recommended Use for Flange Mono pole Tower:



GSM/CDMA Equipment

Video Surveillance Equipment

Wind Turbines

FM Radio

TV

Meteorological Equipment

Flood Light

Flag Poles

Traffic Control Cameras

Crime Prevention Video Surveillance

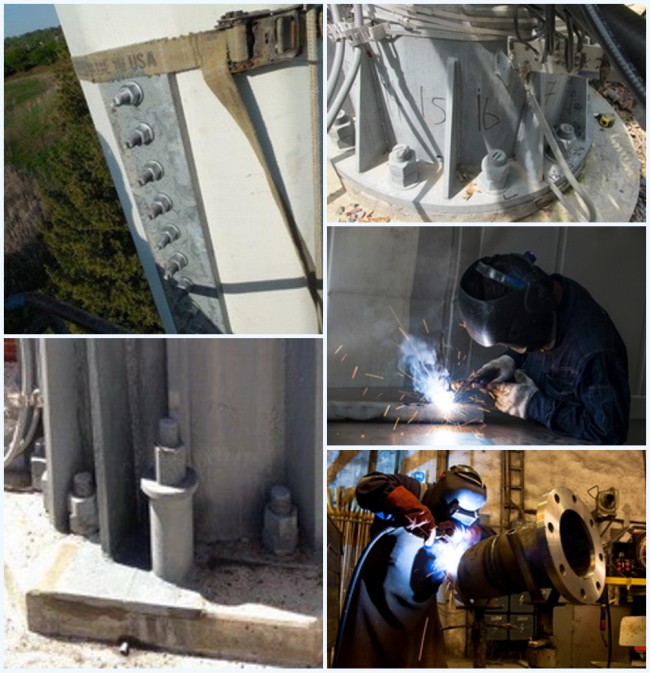

Mono Pole Tower Reinforcement


Flat Plate Reinforcing
Anchor Rod Brackets
Base Stiffeners / Gussets
Welded and Bolted Flange / Bridge Stiffeners
Monopole Extensions



Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform 1

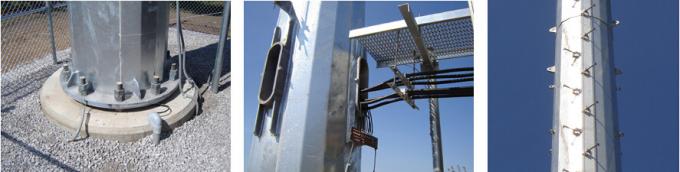

Two Different Type:



Flanged Steel Poles

Flanged Steel Poles are easy to handle and install. Precision fitted connections allow quick assembly of modular sections and the top platform, sidearms or mounting frame. Pole sections are available with identical base flange plates, allowing for simplified modifications of mounting heights and antenna reconfigurations when required.



Tapered Steel Poles

Tapered Steel Poles are designed with base diameters from 2 feet to 6 feet. These minimal site requirements lower lease costs. Tapered poles can be installed quickly, while meeting the demands of GSM PCS, GSM cellular, and other applications. All poles are hot dipped galvanized for long lasting corrosion protection and with unmatched attention to detail and design, these poles offer extremely efficient strength to cost ratio.

Square 160 ft Lattice Transmission Tower Steel Structure With Single Platform 2
