Steel Material Mono Pole Tower For Telecommunication With Its Drawing

China Steel Material Mono Pole Tower For Telecommunication With Its Drawing supplier

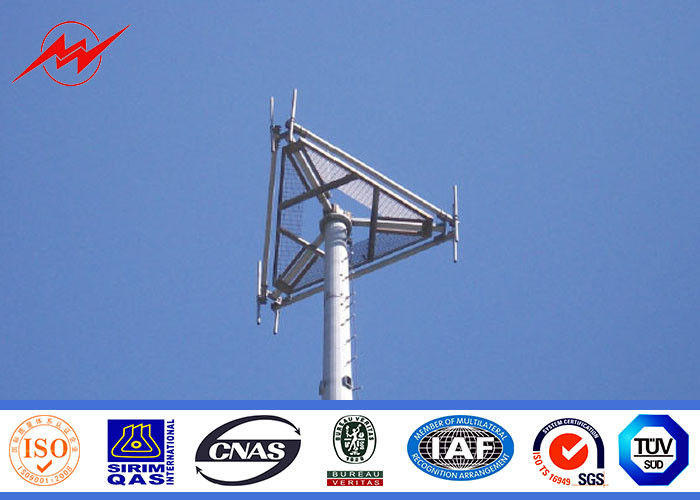

Large Image :  Steel Material Mono Pole Tower For Telecommunication With Its Drawing

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Milky Way
Certification: ISO9001/BV/SGS
Model Number: Mono Pole Tower

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T or L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Material Mono Pole Tower For Telecommunication With Its Drawing Design: Customized
Surface Treatment: Hot Dip Galvanization Dimension Torlance: +- 2%
Welding Standard: AWS D 1.1 Standard: ISO
Galvanization Standard: ASTM A 123



Steel Material Mono Pole Tower For Telecommunication With Its Drawing


product name

Electric Galvanized Steel Tower Telecommunication Mono Pole Tower For
Communication

type polygonal pipe steel pipe
for overheadline project

Straight Pole ,Tensile Pole ,Turn Pole
Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
                 Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52

power

10  KV ~550 KV

Torlance of the dimenstion +- 2%
Safety Factor Safety factor for conducting wine : 8     Safety factor for grounding wine : 8
Electroshock resistant protective grade Grade
The casing anti-corrosion performance Class
Working atmosphere of lighting fixture  -35 ~+45
Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard
by client required.

Joint of Poles Insert mode,innerflange mode,face to face joint mode .
Wind Speed  160 Km/Hour
Minimum yield strength 355 mpa
Minimum ultimate tensile strengt 490 mpa
Max ultimate tensile strength 620mpa
Standard  ISO 9001
Length of per section Within 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS (American Welding Society ) D 1.1

Thickness 1 mm to 30 mm
Production Process

Rew material test  Cuttingj Molding or bending Welidng (longitudinal )Dimension verify
Flange welding Hole drilling Calibration  DeburrGalvanization or powder coating ,painting Recalibration Thread Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can
following by client required , each 40HC or OT can loading how many pcs will calculation base
on the client actually specification and data.

Style Size and styles are veriable as per customer request





Project:

We have completed many big and important project all over the world and win the trust of our client.



Steel Material Mono Pole Tower For Telecommunication With Its Drawing
