Steel Wire Armoured Multi Cores High Voltage Cable Voltges Up To 35kv

China Steel Wire Armoured Multi Cores High Voltage Cable Voltges Up To 35kv supplier
Steel Wire Armoured Multi Cores High Voltage Cable Voltges Up To 35kv supplier Steel Wire Armoured Multi Cores High Voltage Cable Voltges Up To 35kv supplier Steel Wire Armoured Multi Cores High Voltage Cable Voltges Up To 35kv supplier Steel Wire Armoured Multi Cores High Voltage Cable Voltges Up To 35kv supplier

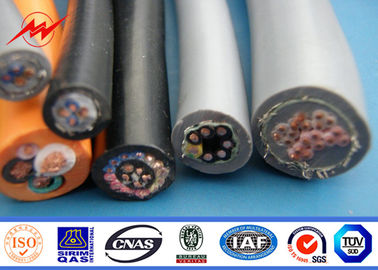

Large Image :  Steel Wire Armoured Multi Cores High Voltage Cable Voltges Up To 35kv

Product Details:

Place of Origin: CHINA
Brand Name: BAO WO
Certification: ISO/CE/UL/CSA
Model Number: High voltage cable

Payment & Shipping Terms:

Minimum Order Quantity: 3000 Meters
Price: USD1-100 per meter
Packaging Details: As per customer request
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 100000 meters per day
Detailed Product Description
Type: High Voltage Cable,copper Cable Surface: PVC Or XLPE Insulation
Voltage: 0.6kv—35kv Model Number: YJV/YJLV/VV/VLV/KVV/JKV/JKLV/JL/YJHLV6
Standard: ISO9001 JB8734.1~5-1998 Jacket: PE PVC/XLPE
Coductor: Copper Or Aluminum Alloy Set-up Temperature: Lower Than 0℃
High Light:

electrical power cable

,

aluminum electrical wire

Steel wire armoured multi cores high voltage cable voltges up to 35kv



Specifications:

sheath:

PVC/XLPE

Outer Sheath:

PVC or PE

Conductor

99.5% Pure Oxygen Free Copper or Aluminum alloy

Voltage :

0.6/1.2kv,10/22/35kv,

No. of cores:

1, 2, 3, 4, 5, 3+1, 4+1, 3+2

Section of conductor(mm ²):

1.5~630 mm2

Application :

Armored PVC high voltage cable are suited for laying indoors ,In cable trench ,On cable racks and in pipes. Unable bear external pressures and tensions.

Common Model name :

VV       Copper/Aluminum core ,PVC insulated ,PVC sheathed power cable

VLY     Copper/Aluminum core, PVC insulated ,PE sheathed power cable

YJL       XLPE insulated ,PVC/PE sheathed power cable

KVV     PVC(XLPE)Insulated and sheathed Control Cable

JKV      copper/aluminum core PVC insulated aerial cable

YJHLV  XLPE insulated ,thin steel wire armored ,PVC/PE sheathed cable

INSULATION THICKNESS(mm) :

1.0—10

Color:

BLACK

Packing:

100 meters per roll or 500 meters per roll or as per requirement

Delivery time:

10—20 days

Payment Terms:

L/C,D/A,D/P,T/T, Western Union

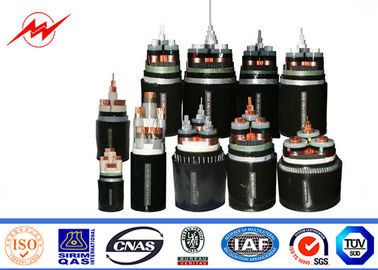

   Steel Wire Armoured Multi Cores High Voltage Cable Voltges Up To 35kv 0



Detail indruction

  The insulation material of this cable is cross-linked polyethylene, which has a heat-resistance rating up to 90℃. Thus this product is excellent for applications requiring intensive heat resistance. It is categorized as flame retardant, heat-resistant, or environmentally friendly depending on its features.

  During last 15-20 years the demand for cross-linked polyethylene insulated cable has expanded rapidly and this type of cable has become the main type for power cables.
  BAO WO Cable has actively developed and applied recent manufacturing techniques for XLPE insulated cable, and has been engaged in a constant effort to obtain more stable quality, and produce XLPE cables for higher voltages, exceeding 220kV.
  The products in this catalogue are based on the GB/T 12706-2008 or IEC 60502-2004 specification.





Marking Examples:

Example 1:Copper-core PVC insulated and sheathed steel-tape armored 3+1 type, main core section is 50mm2 and that of neutral core is 25mm2, such power cable can be represented by: VV22 3X50+1X25



Example 2:Rated voltage is 0.6/1kV copper-core flame retardant(135°C)PVC insulated and sheathed, small-gauge steel wire armored, 4+1 type, main core section is 70mm2 and that of neutral core is 35mm2, such power cable can be represented by: BW135-VV 0.6/1kV 4 X 70+1x35



Example 3: Rated voltage is 0.6/1kV, copper-core flame-retardant(105°C)PVC insulated and sheathed, steel tape armored, 3+2 type, main core section is 185mm2 and that of neutral core is 95mm2, such power cable can be represented by: BW105 -VV22 0.6/1kV 3 X 185+2 x 95

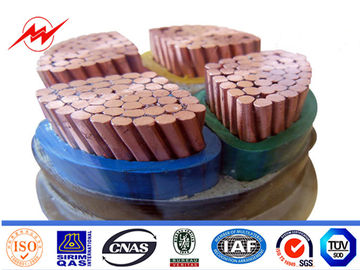

  Steel Wire Armoured Multi Cores High Voltage Cable Voltges Up To 35kv 1

Working Condition

For general type, not over 70°C as the maximum

For 105°C flame-retardant material, not over 105°C as the maximum

For 135°C flame-retardant material, not over 135°C as the maximum

1. Lowest ambient temperature:-40°C for fixed laying,-20°C for non-fixed laying

2. Rated voltage U0/U:0.6/1kV, 3.6/6kV

3. Min.bending radius:not less than 10 times of outer diameter of cable if without armor, and not less than     15 times of cable outer diameter provided the cable is armored.

4. Short-circuit condition:The maximum temperature of cable conductor will not exceed 175°Cunder short-     circuit condition(longest time of 5 seconds)
