Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower

China Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower supplier
Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower supplier Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower supplier Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower supplier Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower supplier Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower supplier

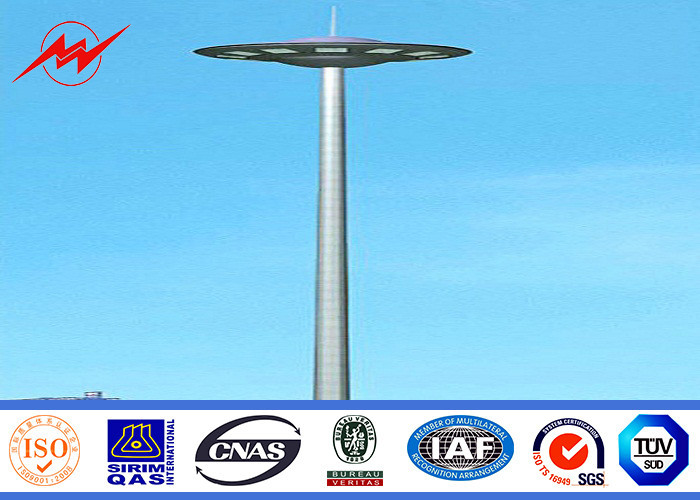

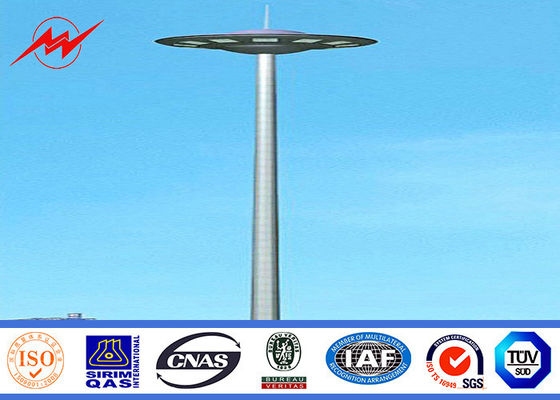

Large Image :  Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: High Mast Light

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description

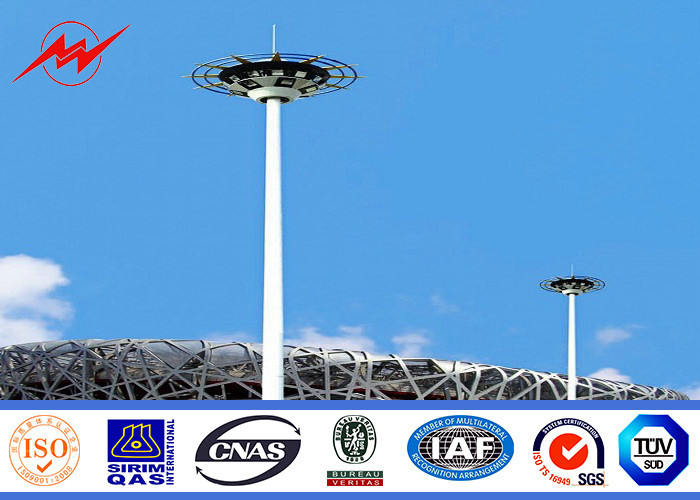

Product Name: High Mast Light Application: Parking Lot Lighting
Wind Speed: 30m/s,160km/h Galvanization Thickness: Average 86μm
Thickness: 1 Mm To 30 Mm Warranty Time: 15 Years

Telecom Guy Mast Tower 33 Meters exporting to Myanmar telecomunication tower





 Specifications:





Mast’s height



15m to 35m



Shape of mast

Polygon

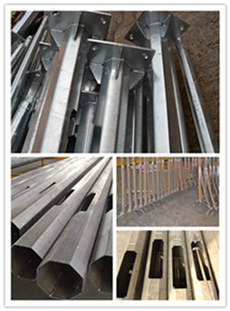

Shafts are made of steel sheet that folded into required shape and

welded longitudinally by automaticarc welding machine



Head frame

The style according to client's requests and dimension as per customers

requirement



Length



Within 14m once forming without slip joint





Wall thickness



4mm to 20mm



Welding

It has past flaw testing.Internal and external double welding makes the

welding beautiful in shape.

And confirms with international welding standard of CWB



Jointing

Slip Joint

Jointing of pole with insert mode, innerflange mode, face to face joint mode.

Base plate mounted



Base plate is square or round in shape with slotted holes for anchor bolt

and dimension as per customers requirement.

Ground mounted



The length buried underground as per customers requirement.



Galvanizing

Hot dip galvanization with thickness of 80-100µm average in accordance

with Chinese standardGB/T 13912-2002 or American standard ASTM A123,

IS: 2626-1985.





Powder coating



Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance



Aganist wind pressure of 160Km/h

Manufacturing



According to GB/T 1591-1994.





Quality Control



We control the quality according to the flow of ISO9001-2008. Quality is

employed at every stage of production to ensure

the product compliance to the specifications/standards. Careful inspections

are carried out by highly trained inspection engineers as per the defined

procedures from raw material stage to finished product and delivery.

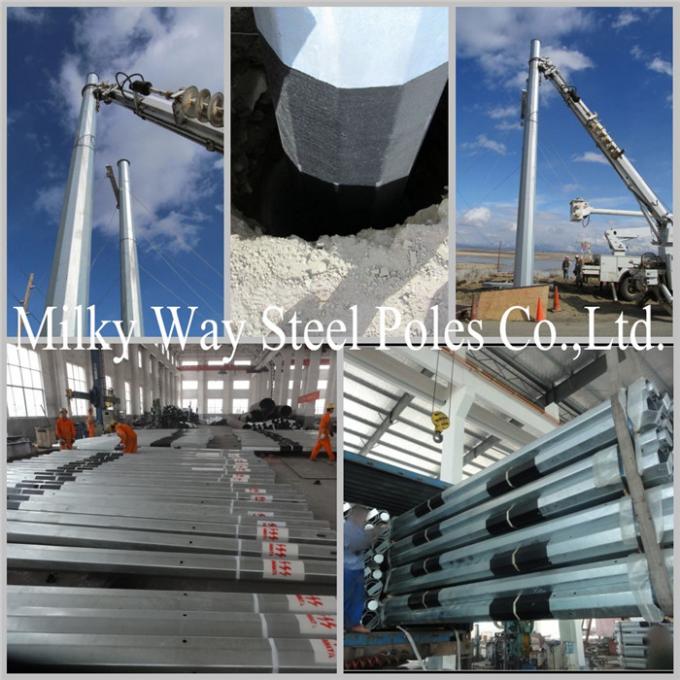

Prototype assembly of towers is carried out in

the plant.



Certificates



ISO9001-2008 SGS Audited Supplier




 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.





 Description:
 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder
 These are the standard accessories of the electric pole.

 Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower





 Installation:
 1. high-pressure sodium lamp with external ballast and Triggers installed in light tray.
 2. when replacing or repairing light and other electrical appliances, you should use special wrench to  open it.
 3. control box installed at the poles or the lower part of the poles
 Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower

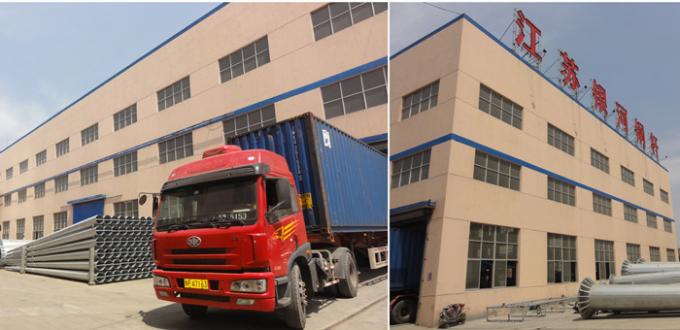

 Company instruction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

 Telecom Guy High Mast Tower 33 Meters Exporting To Myanmar Telecomunication Tower
