Weld Copper Ground Rod Threaded 1000mm 1200mm 1500mm Copper Earth Rod With Accessories

China Weld Copper Ground Rod Threaded 1000mm 1200mm 1500mm Copper Earth Rod With Accessories supplier
Weld Copper Ground Rod Threaded 1000mm 1200mm 1500mm Copper Earth Rod With Accessories supplier Weld Copper Ground Rod Threaded 1000mm 1200mm 1500mm Copper Earth Rod With Accessories supplier Weld Copper Ground Rod Threaded 1000mm 1200mm 1500mm Copper Earth Rod With Accessories supplier Weld Copper Ground Rod Threaded 1000mm 1200mm 1500mm Copper Earth Rod With Accessories supplier

Large Image :  Weld Copper Ground Rod Threaded 1000mm 1200mm 1500mm Copper Earth Rod With Accessories

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: CE,UL467,ISO9001:2008
Model Number: ground rod

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: US $0.1-5 per piece
Packaging Details: Nylon Or Wooden cases Or container
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Product Name: Ground Rod Material: Copper Weld Steel
Type: Threaded Or Flat Or Pointed Usage: Underground
Copper Layer Thickness: 0.254mm, 0.33mm, 0.5mm, 1.0mm Application: Lightning Protection
Elongation: 8%-15% Straightness: <1mm/m

1000mm 1200mm 1500mm copper weld steel ground rod with accessories

Specifications:



Ground Rod Size List
Small Size
Model Diameter Copper Thickness Length N.W. Packing
inch mm Mil mm Feet mm kgs/pc pc/bundles
YH-8   8 10 0.254 3 900 0.45 20
YH-8   8 10 0.254 4 1200 0.45 20
YH-8   8 10 0.254 5 1500 0.45 20
YH-9   9 10 0.254 3 900 0.57 20
YH-9   9 10 0.254 4 1200 0.57 20
YH-9   9 10 0.254 5 1500 0.57 20
YH-10   10 10 0.254 3 900 0.7 20
YH-10   10 10 0.254 4 1200 0.7 20
YH-10   10 10 0.254 5 1500 0.7 20
YH-11   11 10 0.254 3 900 0.85 20
YH-11   11 10 0.254 4 1200 0.85 20
YH-11   11 10 0.254 5 1500 0.85 20
YH-12   12 10 0.254 3 900 1.01 20
YH-12   12 10 0.254 4 1200 1.01 20
YH-12   12 10 0.254 5 1500 1.01 20
YH-13   13 10 0.254 3 900 1.18 20
YH-13   13 10 0.254 4 1200 1.18 20
YH-13   13 10 0.254 5 1500 1.18 20
YH-13   13 10 0.254 6 1800 1.18 20
YH-14 5/8 14..2 10 0.254 4 1200 1.54 20
YH-14 5/8 14.2 10 0.254 6 1800 2.3 10
YH-14 5/8 14.2 10 0.254 8 2400 3.07 10
YH-14 5/8 14.2 10 0.254 10 3000 3.84 10
YH-14 5/8 14.2 10 0.254 20 6000 7.68 5
YH-16   14.2 10 0.254 4 1200 1.95 10
YH-16   16 10 0.254 6 1800 2.93 10
YH-16   16 10 0.254 8 2400 3.9 10
YH-16   16 10 0.254 10 3000 4.88 10
YH-16   16 10 0.254 20 6000 9.75 5
YH-17 3/4 17.2 10 0.254 4 1200 2.25 10
YH-17 3/4 17.2 10 0.254 6 1800 3.38 10
YH-17 3/4 17.2 10 0.254 8 2400 4.51 10
YH-17 3/4 17.2 10 0.254 10 3000 5.64 7
YH-17 3/4 17.2 10 0.254 20 6000 11.27 5
YH-18   18 10 0.254 4 1200 2.47 10
YH-18   18 10 0.254 10 3000 6.17 7
YH-18   18 10 0.254 20 6000 12.34 5
YH-20   20 10 0.254 6 1800 4.57 10
YH-20   20 10 0.254 8 2400 6.1 10
YH-20   20 10 0.254 10 3000 7.62 7
YH-20   20 10 0.254 20 6000 15.24 5
YH-20   20 10 0.254 8 2400 6.1 10
YH-22   22 10 0.254 10 3000 9.22 7
YH-22   22 10 0.254 6 1800 5.53 10
YH-25   25 10 0.254 8 2400 9.53 10
YH-25   25 10 0.254 10 3000 11.91 7
YH-25   25 10 0.254 20 6000 23.81 5
Also supply copper layer thickness 0.33mm,0.5mm and 1.0mm
Also supply any length shorter than 6000mm



Description:
The counter bored couplings are made from high copper content alloy, earth rod,commercial brass is not used. This again ensures excellent corrosion resistance and high strength.


Item Number copper weld steel ground rod
Copper layer thickness >=0.254mm
Tensile strength >=600Nm/mm2
Straightness error <=1mm/m
Service life >=50years
Function Used in grounding and lightning system
Type Threaded or flat or pointed
Plasticity of copper layer No crack under U bent
Available service mode OEM;ODM
Certificate CE,UL467,ISO9001:2008


Weld Copper Ground Rod Threaded 1000mm 1200mm 1500mm Copper Earth Rod With Accessories

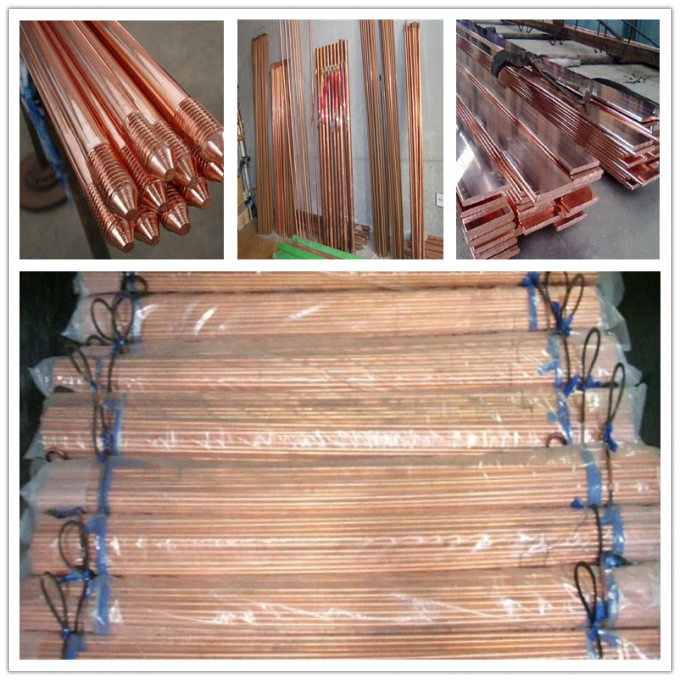

Packaging & Shipping:
5pcs/bundle 10pcs/bundle Nylon strip-Weave strip-Iron pallet or wooden case-Container 3 tons per pallets 20 tones per container.
Weld Copper Ground Rod Threaded 1000mm 1200mm 1500mm Copper Earth Rod With Accessories

Company introduction:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
