Payment & Shipping Terms:
|Item Name:||Polygonal High Mast Pole||Material:||Q345|
|Surface Finished:||Hot Dip Galvanized||Application:||Street Way,highway,airport,Stadium|
high mast lighting pole,
Park Light pole

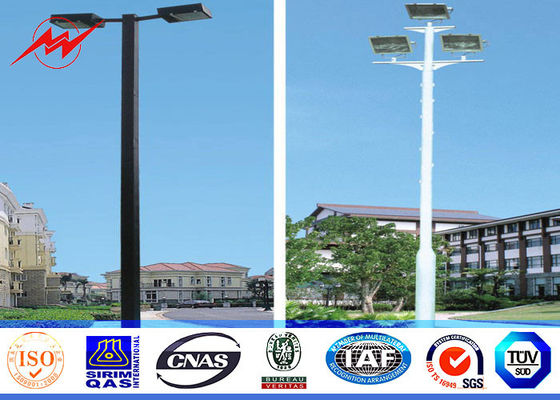

Polygonal 35M High Mast Pole Q345 material for Stadium Lighting with accessories
High-mast lighting installations are often located where today’s most busy expressways merge or intersect. Milky Way's tapered steel high-mast poles also support other large-area lighting applications, such as those found at busy ports and in heavy-industry zones. In all these applications, safety is paramount and technical design expertise is essential.
• The High Mast is available in various length, diameters and hole arrangements.
• Multisided or Tapered round variations.
• The High Mast is available in base plate mounted or direct bury installed.
• All High Masts are hot dip galvanized according to EN 1461, and can be powder coated or painted.
• Additional service doors.
• Pre-drilling for removable safety steps is available.
Quick Product Description-High Mast Lighting Pole
|Item||30 MTR||25 MTR|
|No. of Longitudinal Welds||Single/Double||Single/Double|
|Cross section of mast in polygon((No. of Sides)||Octagonal,dodecagon,hexadecagon||Octagonal,dodecagon,hexadecagon|
|Thickness||4mm,6mm,8mm,10mm or customized design||4mm,6mm,8mm,10mm or customized design|
|Individual Section’s Length||10500mm||8833mm|
|Base & Top dia (OAF)||520/200mm||485/200mm|
|Thickness of galvanization(Average)||86 Microns||86 Microns|
|Size of opening door at base||360 x 1400 mm||360 x 1400 mm|
|Size of base plate diameter||700 mm||685 mm|
|Size of base plate thickness||32 mm||32 mm|
|Number of foundation bolts||16||12|
|Bolt diameter||28 mm||28 mm|
• Fly Overs
• Road Junction
• Parking Areas
• Apron Lighting
• Coal Handling
• Power Plants
• Container Terminals
• Petrole Pumps
• Any other Outdoor Application
Details for High Mast Pole Anchor Bolt
Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
The complete mast with component is fully hot dip galvanized for longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Special Features of High Mast
• 2 Section Mast for 12/16/20 Mt.
• 3 Section Mast for 25/30 Mt.
• 4 Section Mast for 35/40 Mt.
• Wind Velocity upto 200 km/hr
• Galvanised Steel.
• 2/3 Pulley wirerope system
• Motorised & Manually operated Winch for Lantern Carriage
• Flood Light Luminaires with appropriate
CG Box & HID Lamps
• Aviation obstruction Lamp for LED &
Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.
We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:
lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.
The entire range of equipment is manufactured using superior quality raw material and ensures reliability.
These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
