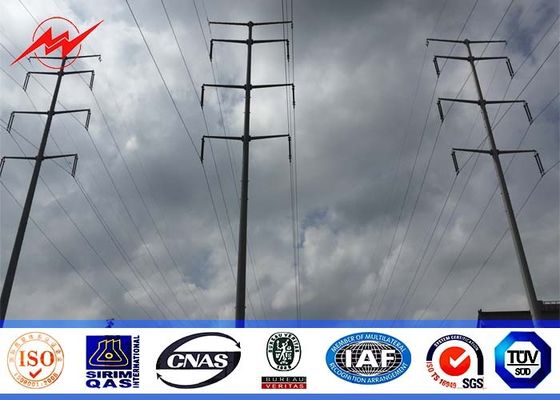

65ft Glavanized Steel Utility Pole For Distbution Line

Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

65ft Glavanized Steel Utility Pole For Distbution Line

China 65ft Glavanized Steel Utility Pole For Distbution Line supplier
65ft Glavanized Steel Utility Pole For Distbution Line supplier 65ft Glavanized Steel Utility Pole For Distbution Line supplier 65ft Glavanized Steel Utility Pole For Distbution Line supplier 65ft Glavanized Steel Utility Pole For Distbution Line supplier

Large Image :  65ft Glavanized Steel Utility Pole For Distbution Line

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO,BV
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Height: 65ft Design Load In Kg: 300~ 1000 Kg Appliced To 50cm From The To Pole
Minimum Yield Strength: 345 Mpa Sections: Three Sections
Appearance: Tubular,triangular,angular,lattice Wind Speed: 35m/s
Galvanization Standard: ASTM A 123

Three sections 65ft Steel Utility Pole for electric power distbution line with galvanization



Application:



Transmission Applications

Light Duty Steel Poles

Custom Design Transmission Poles

Steel H-Frame Poles



Substation Applications

Dead End Structures

A-Frames and H-Frames

Special Application Structures

Low Side Supports – Buss, Switch, and Other equipment

Static and Shield Wire Poles



Workshop

65ft Glavanized Steel Utility Pole For Distbution Line





Technical Data Sheet(F=10KN)



Dimension 10m 11m 11.8m 13m 14m 16m 18m
DI(mm) 180 180 180 180 180 180 180
D2(mm) 360 380 400 400 410 445 475
T(mm) 3 3 3 3 3.5 3.75 3.75
h(m) 1.6 1.8 1.9 2.1 2.3 2.6 3

More details and load,feel free to call me.



Available Foundation Types



Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson



Available Finishes



Galvanized per ASTM A123

Paint over galvanized,paint over black steel

Powder Coating



Welding Process



65ft Glavanized Steel Utility Pole For Distbution Line







Standard Features of in-ground and base plate mounted



In-Ground Mounted:



12-sided pole shaft

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the nominal ground line

M24 nut 250mm above the nominal ground line (to assist lifting)

Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line

Anti-sink straps

Hot dip galvanised finish



Base Plate Mounted:



12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish



65ft Glavanized Steel Utility Pole For Distbution Line



The information to inquiry or purchase



-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other.



More Pictures:

65ft Glavanized Steel Utility Pole For Distbution Line





Company Introduction:



Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
