0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance

China 0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance supplier
0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance supplier 0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance supplier 0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance supplier 0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance supplier

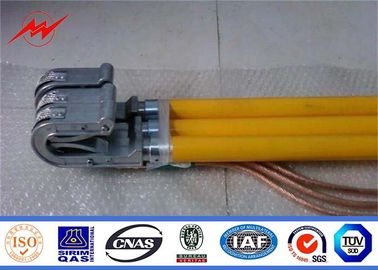

Large Image :  0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: CE,UL467,ISO9001:2008
Model Number: ground rod

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: US $0.1-5 per piece
Packaging Details: Nylon Or Wooden cases Or container
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Product Name: Ground Rod Material: Copper Clad Steel
Type: Threaded Or Flat Or Pointed Usage: Underground
Copper Layer Thickness: 0.254mm, 0.33mm, 0.5mm, 1.0mm Application: Lightning Protection
Elongation: 8%-15% Straightness: <1mm/m

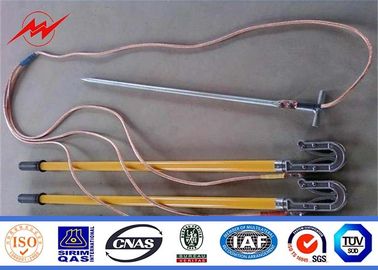

0.254mm 0.33mm copper clad steel ground rod cover with clamps

Specifications:

Ground Rod Size List
Small Size
Model Diameter Copper Thickness Length N.W. Packing
inch mm Mil mm Feet mm kgs/pc pc/bundles
YH-8   8 10 0.254 3 900 0.45 20
YH-8   8 10 0.254 4 1200 0.45 20
YH-8   8 10 0.254 5 1500 0.45 20
YH-9   9 10 0.254 3 900 0.57 20
YH-9   9 10 0.254 4 1200 0.57 20
YH-9   9 10 0.254 5 1500 0.57 20
YH-10   10 10 0.254 3 900 0.7 20
YH-10   10 10 0.254 4 1200 0.7 20
YH-10   10 10 0.254 5 1500 0.7 20
YH-11   11 10 0.254 3 900 0.85 20
YH-11   11 10 0.254 4 1200 0.85 20
YH-11   11 10 0.254 5 1500 0.85 20
YH-12   12 10 0.254 3 900 1.01 20
YH-12   12 10 0.254 4 1200 1.01 20
YH-12   12 10 0.254 5 1500 1.01 20
YH-13   13 10 0.254 3 900 1.18 20
YH-13   13 10 0.254 4 1200 1.18 20
YH-13   13 10 0.254 5 1500 1.18 20
YH-13   13 10 0.254 6 1800 1.18 20
YH-14 5/8 14..2 10 0.254 4 1200 1.54 20
YH-14 5/8 14.2 10 0.254 6 1800 2.3 10
YH-14 5/8 14.2 10 0.254 8 2400 3.07 10
YH-14 5/8 14.2 10 0.254 10 3000 3.84 10
YH-14 5/8 14.2 10 0.254 20 6000 7.68 5
YH-16   14.2 10 0.254 4 1200 1.95 10
YH-16   16 10 0.254 6 1800 2.93 10
YH-16   16 10 0.254 8 2400 3.9 10
YH-16   16 10 0.254 10 3000 4.88 10
YH-16   16 10 0.254 20 6000 9.75 5
YH-17 3/4 17.2 10 0.254 4 1200 2.25 10
YH-17 3/4 17.2 10 0.254 6 1800 3.38 10
YH-17 3/4 17.2 10 0.254 8 2400 4.51 10
YH-17 3/4 17.2 10 0.254 10 3000 5.64 7
YH-17 3/4 17.2 10 0.254 20 6000 11.27 5
YH-18   18 10 0.254 4 1200 2.47 10
YH-18   18 10 0.254 10 3000 6.17 7
YH-18   18 10 0.254 20 6000 12.34 5
YH-20   20 10 0.254 6 1800 4.57 10
YH-20   20 10 0.254 8 2400 6.1 10
YH-20   20 10 0.254 10 3000 7.62 7
YH-20   20 10 0.254 20 6000 15.24 5
YH-20   20 10 0.254 8 2400 6.1 10
YH-22   22 10 0.254 10 3000 9.22 7
YH-22   22 10 0.254 6 1800 5.53 10
YH-25   25 10 0.254 8 2400 9.53 10
YH-25   25 10 0.254 10 3000 11.91 7
YH-25   25 10 0.254 20 6000 23.81 5
Also supply copper layer thickness 0.33mm,0.5mm and 1.0mm
Also supply any length shorter than 6000mm



Description:

Copper Ground Rod using special electro forming technology, plating 99.9% pure copper uniformly to thehigh quality low carbon steel

core, through cold drawn process, to make tensile strength stronger, and

maintaining toughness, with thick copper, well agglutination and so on. Have constant low resistance and good

plasticity, both with the same electrical conductivity of copper and also have the steel characteristicsConventional

copper layer thickness is 0.254mm, 0.33mm, 0.5mm, 1.0mm.



1.The manufacturing process: Copper bonded ground rod is cast through an electrolytic process, to 99.9% copper molecules evenly covering the steel core. It is very uniform copper layer and the thickness of 0.254mm or more. Products have conductive properties of copper and the tensile strength of steel. Since the copper layer and the steel material is a binding molecule, the copper layer is not easily peeled off, and will not crack when bent in operation.
2. Good conductivity: Since the Copper bonded ground rod of the outer copper layer of 99.9% purity electrolytic copper, having a thickness of 0.254mm or more, the conductivity has been tested more than 40%, when the transmission frequency is greater than 1.67MHz, which is fully equivalent to the conductive properties of solid copper.
3. Strong corrosion resistance: The surface of the ground rod is 99.9% pure electrolytic copper. Combined with its copper and steel are molecules overcome their electrochemical corrosion, buried in the soil and thus has a strong resistance to corrosion, the service life of over 30 years.
4. Tensile strength: Copper bonded ground rod has conductivity of copper, and steel’s large tensile strength (up to 580N/mm2) characteristics. In construction operations, ground rods can be easily driven into depth of up to 20m or more under the ground. That will reduce a lot of trouble during construction and installation costs.





0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance

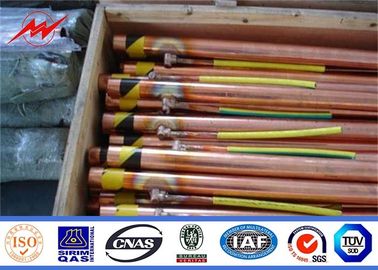

Packaging & Shipping:

Strong packing is available and free of charge ,which is suitable for loading, storage in most popular

condition .Custom packing will be charged reasonably to favor customer’s requirement .

0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance



Our service:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years,

competitive with good quantity.

7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

0.254mm 0.33mm Copper Ground Rod Cover With Clamps Trong Corrosion Resistance
