Product Details:
Payment & Shipping Terms:
|
| PRODUCT NAME: | 10KV High Tolerance Capacity Steel Poles For Terminal Connections On High Voltage Side Of A Transformer | MATERIAL: | Q235 Q345 Gr65 SS400 |
|---|---|---|---|
| Minimum Yield Strength: | 345mpa | Minimum Ultimate Tensile Strength: | 490mpa |
| Max Ultimate Tensile Strength: | 620mpa | Thickness: | 1-30mm |
| Tolerance: | +/-2% | Electroshock Resistant Protective Grade: | Grade I |
| High Light: | 10 kv steel power pole,high tolerance capacity steel power pole,high tolerance capacity electric utility pole |
||
Product Details
Main Features
1) Enhances both electrical and mechanical performance
2) Well suited for terminal connections on high voltage side of a transformer
3) Accurate dimension and resistivity to adverse conditions
4) High tensile strength with optimum tolerance capacity
Product Introduction
|
Type
|
Straight Pole ,Tensile Pole ,Turn Pole
|
||
|
Suit for
|
Electricity distribution
|
||
|
Shape
|
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
|
||
|
Material
|
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
||
|
Tolerance of dimension
|
+- 2%
|
||
|
Safety Factor
|
Safety factor for conducting wine : 8
Safety factor for grounding wine : 8 |
||
|
Design Load in Kg
|
300~ 1000 Kg appliced to 50cm from the to pole
|
||
|
Marks
|
Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
|
||
|
Surface treatment
|
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
|
||
|
Joint of Poles
|
Insert mode,innerflange mode,face to face joint mode .
|
||
|
Design of pole
|
Against earthquake of 8 grade
|
||
|
Welding
|
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1 |
||
|
Wind Speed
|
at least 160 Km/Hour . 30 m /s
|
||
|
Minimum yield strength
|
355mpa
|
||
|
Minimum ultimate tensile strength
|
490mpa
|
||
|
Max ultimate tensile strength
|
620mpa
|
||
|
Length of per section
|
Within 14m once forming without slip joint
|
||
Product Parameters
For reference only.All products are professionally designed and processed based on customer requirements
Why Choose Us
| OVERSEAS PROJECT | ||||
| COUNTRY | UTILITY | VOLTAGE LEVEL | TYPE | YEARS OF SUPPLY |
| PHILIPPINES | NEA,NGCP | 69KV | 25FT-100FT,AS PER CUSTOMS’ REQUIREMENT | EVERY YEAR |
| GHANA | GHANA ELERCITY COMPANG | 10m,11m | 2015 | |
| PAKISTAN | WAPDA | 132KV | SPA,APD,SPG | 2013 |
| SAUDI ARABIC | SAUDI ELECTRICITY COMPANY | 10M ELECTRIC POLE | 2011 | |
| ECUADOR | CELEC | 138KV | PB-B40 | 2009 |
| MORE PROJECT ,PLEASE VISIT OUR WEBSITE OR CONTACT WITH SALES. | ||||
Product Processing

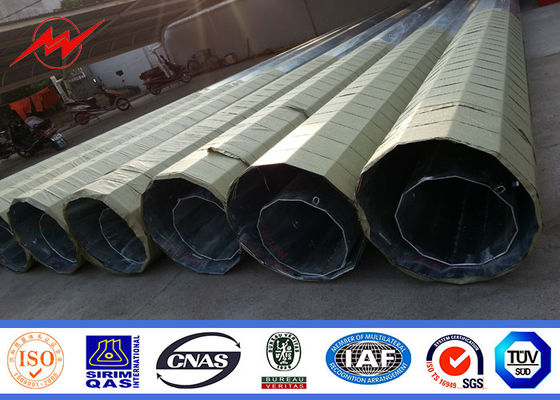

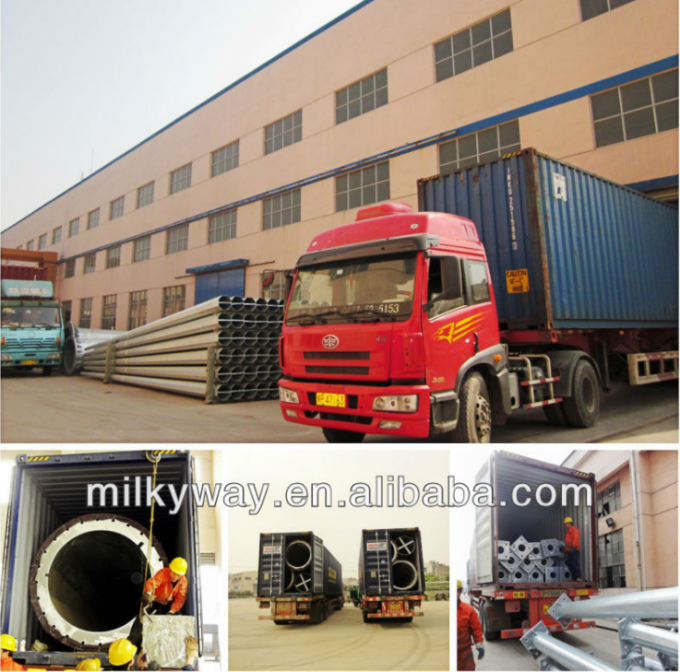

Product Packing
Package: Plastic paper or according to clients requirement.
Delivery: for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.
Main Products
FAQ
Trade terms:
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets.
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic paper or according to clients requirement.
5. Delivery: for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.
6. Parts Design Service Period: 20 years.
|
Q1. How can I get a price of needed pole? |
|
A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price. 2. You can send us a drawing; we can according to your drawing give you one price. |
| Q2. I am a small wholesaler, do you accept small order? |
| A: It's no problem if you are a small wholesaler; we would like to grow up with you together. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true. |
| Q4. We want be your agent of our area. How to apply for this? |
| A: Please send your idea and your profile to delia @yin-he.com |
| Q5. Tell me about your company? |
|
A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole, power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas. |
| Q6. Do you have some special policies for Brand company? |
|
A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market. |
| Q7. Can you make Door to Door service? Because i don't know how to do customs clearance. |
|
A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time also money. |
