2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission

China 2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission supplier
2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission supplier 2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission supplier 2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission supplier 2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission supplier

Large Image :  2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission

Product Details:

Place of Origin: Jiangsu
Brand Name: milky way
Certification: ISO 9001-2015
Model Number: yin-he

Payment & Shipping Terms:

Minimum Order Quantity: one container
Price: 130-180USD per pieces
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time: 2 weeks always
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pieces week
Detailed Product Description
Material: Q235 GR65 SS400 Llifetime: 50 Years
Warrenty: 15 Years Power: 10-550KV
Thickness: 1-30mm Tolerance Dimension: +-2%
Type: Straight Pole Shape: Polygonal,round
High Light:

2.5kn steel power pole

,

steel power pole hot dip galvanized

,

200kn galvanised power pole





2.5KN-200KN breaking load hot dip galvanization steel pole manufacturer


We are Jiangsu Milky Way Steel Poles ,a group company for steel support pole and stringing equipment and accessories,Steel pole (8m-60m with breaking load from 2.5Kn to 200KN )   2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission 0





Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks

Nane palte through rivert or glue ,engrave ,emboss as per customer

requirement

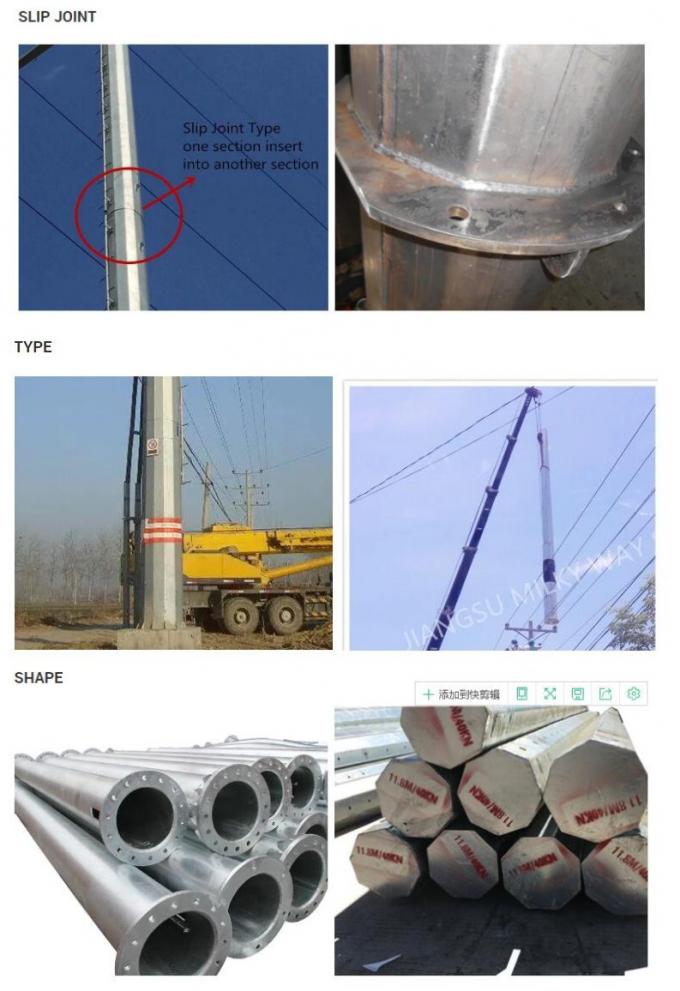

Joint of Poles Insert mode,innerflange mode,face to face joint mode .
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Length of per section Within 14m once forming without slip joint

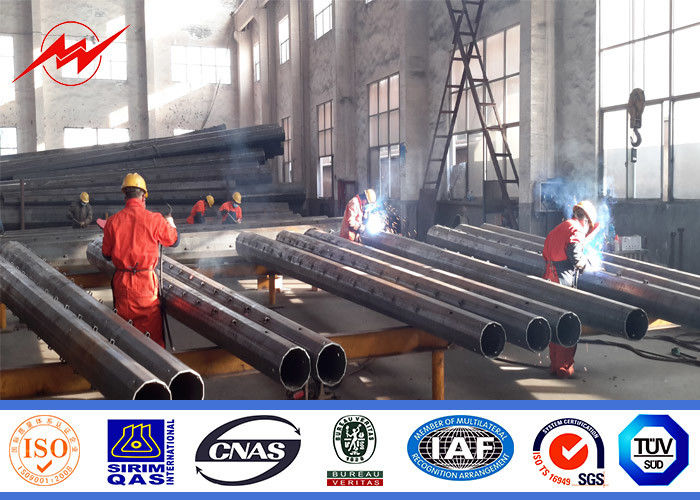

Welding We has past flaw testing.Internal and external double welding
makes the welding beautiful in shape

Welding Standard :AWS ( American Welding Society ) D 1.1
Production Process

Rew material test → Cuttingj →Molding or bending →Welidng

(longitudinal )→Dimension verify →Flange welding →Hole drilling →

Calibration → Deburr→Galvanization or powder coating ,painting →

Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can

loading how many pcs will calculation base on the client

actually specification and data.

2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission 1



1.advanced equipment:We have the most advanced equipment which is rare in china.That means,we can minimun the error and best meet customs' request.

2.good quality:We pasted the test of BV ,,etc.Before put into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and component.

3. customzation  design:we have PLS profession design system.

4.prefect service:We  treat clients as friends.

5..Fast & Cheap Express service: We have big discount from forwarder (Long-term Contract with TNT,DHL,UPS,FEDEX,EMS ).

6.Lowest MOQ: lowest quantity from 1Ton depends on different style .

7.experience of poles:

 Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.

2.5kn-200kn Steel Power Pole Hot Dip Galvanized For Power Transmission 2





we can supply the poles based on customer's request. And different specification poles with different price. On the other side, the price is according to each pole weight. The heavier the more expensive. So to save the cost, our factory has the professional technical team to design the practical poles and save the cost for our clients.
