110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen

China 110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen supplier
110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen supplier 110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen supplier 110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen supplier 110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen supplier

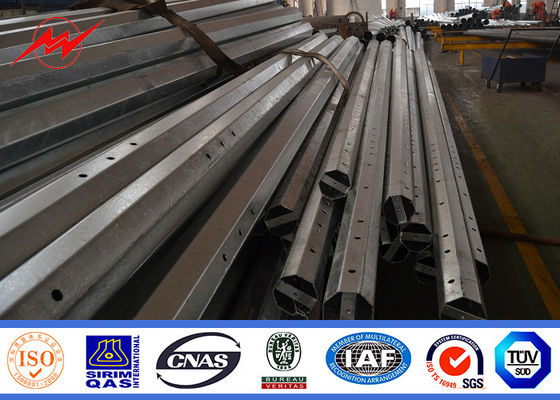

Large Image :  110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Electric Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Electric Power Pole Application: Power Transmission
Galvanization Standard: ASTM A 123 Standard: ISO
Wind Speed: 30m/s Lift Time: 50 Years
Warranty: 15 Years Design: Customized

110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen





 Specifications:



Marks

Name plate through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data









 Technical information-Cross Arm

 The following listed is the most frequently used design,and is made from angel steel.And the cross  arm will  be fixed to the pole shaft connecting by bolts through the pre-drilling holes on both the cross  arms and  the pole shaft.If you have any other requirements on the design,material and connecting  method for  cross arm,pls contact us.





 110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen









 The information to inquiry or purchase
 -Steel pole height and force
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Safety factor of the steel pole
 -Wind speed
 -Type of climbing rung
 -Destination port
 -Other.





110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen

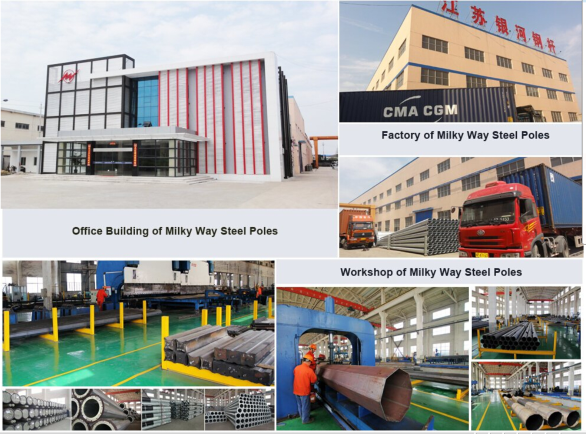

 Company History:
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

 Our employees have a strong belief that "to produce for the market and customers high-quality  products." Here , we all believe that a better future to come.







 110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen
