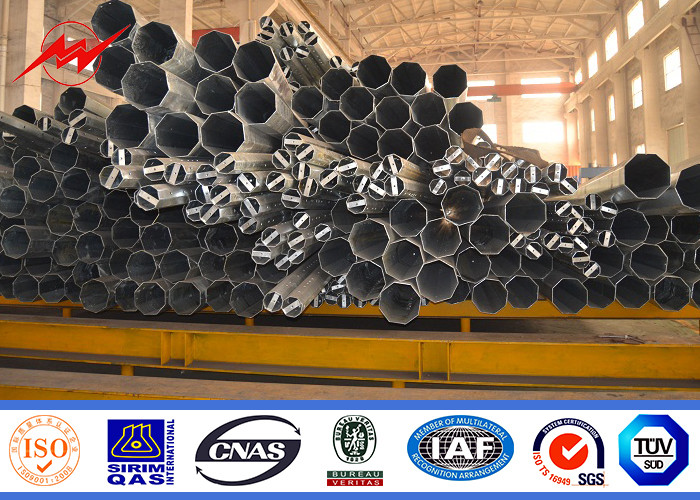

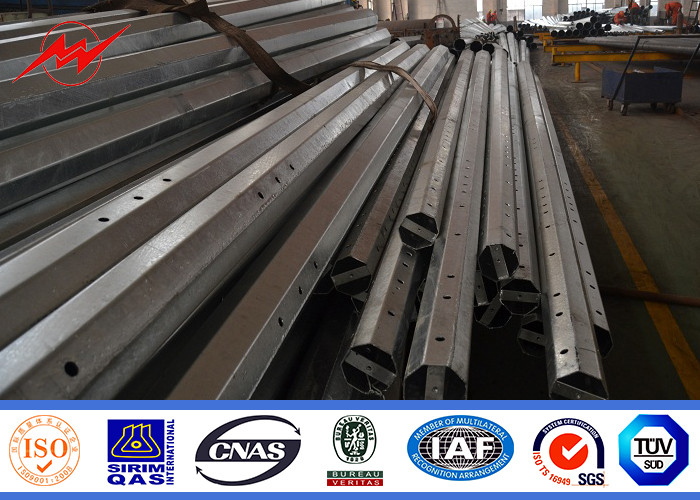

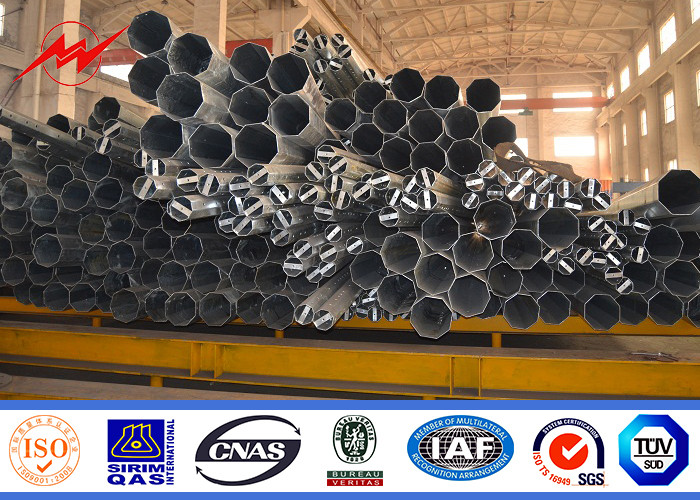

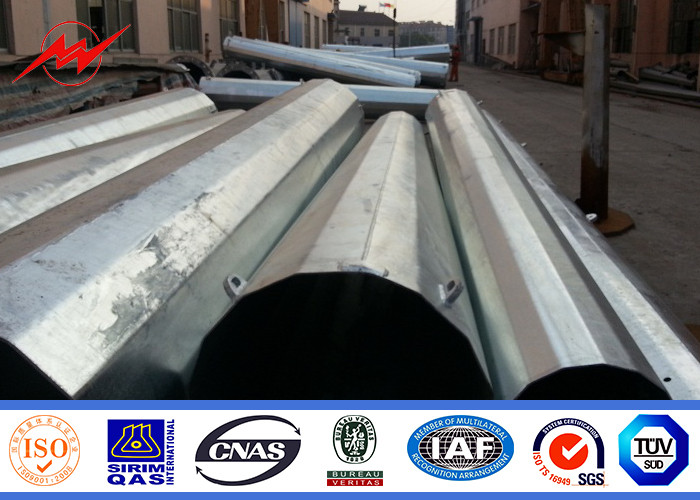

110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen
steel power pole
,transmission line poles
110KV Gr65 Material 22m Electric Power Pole 3 Sections with Bitumen
Specifications:
|
Marks |
Name plate through rivert or glue ,engrave ,emboss as per customer requirement |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, |
|
Joint of Poles |
Insert mode,inner flange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Length of per section |
Within 14m once forming without slip joint |
|
Welding |
We has past flaw testing.Internal and external double welding makes |
|
Thickness |
1 mm to 30 mm |
|
Production Process |
Row material test → Cutting →Molding or bending → |
|
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom , |
Technical information-Cross Arm
The following listed is the most frequently used design,and is made from angel steel.And the cross arm will be fixed to the pole shaft connecting by bolts through the pre-drilling holes on both the cross arms and the pole shaft.If you have any other requirements on the design,material and connecting method for cross arm,pls contact us.
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
Company History:
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
Our employees have a strong belief that "to produce for the market and customers high-quality products." Here , we all believe that a better future to come.
