![]() ![]() 69KV phlipines steel pole
design of steel pole
|
69KV phlipines steel pole 69KV philippines steel pole |
design of steel pole design of steel pole |
Equipment:
一.Bending machine
model: WC67Y-1600T15000
1.Our company has international advanced large CNC bending equipment: a bending length up to 15 m, a
bending thickness up to 30MM, the maximum processing rod diameter up to 3500MM.
二.Laser cutting
model: QY-LCF-1325 Cutting thickness up to 25MM
1.High precision:Cutting accuracy is less than 0.05mm.
2.Narrow kerf:Kerf width of 0.10 ~ 0.20mm.
3.Smooth cutting surface: Burr-free cutting surface, general control cut surface roughness within the Ra12.5.
4.Fast speed: Cutting speeds up to 10m / min, the maximum positioning speed up to 70m / min.
5.High cutting quality: There is no thermal deformation of workpiece.
三.Welding
1.The company has a number of Panasonic Matsushita automatic gas shielded welding and submerged arc
welding equipment, high efficiency, fast speed, welding surface smooth, good penetration.
2.The company has more than 10 employees who have 15-20 years of experience in welding professional.
3.The company has produced a large number of products which through the check of Australia, European
professional institutions.

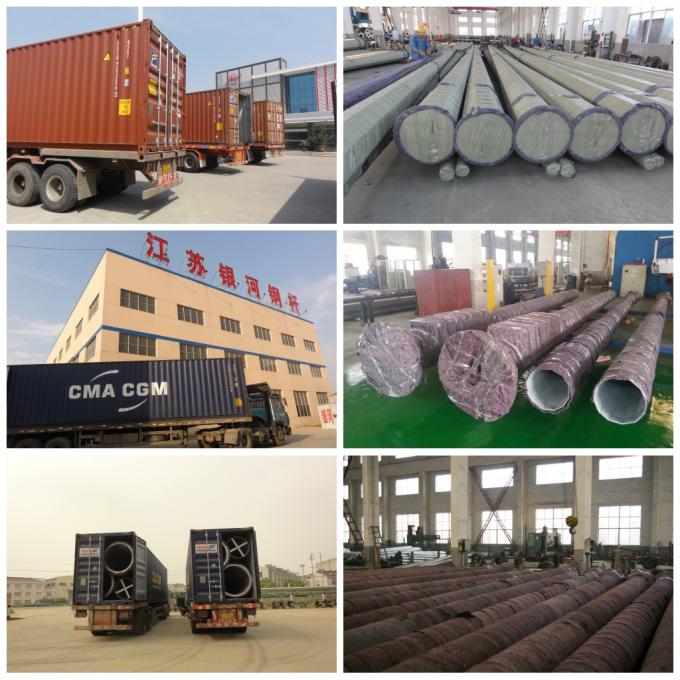

Packing&Shipping:
Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.
Technology:
一.Hot-dip galvanizing
1.With world class hot dip galvanizing process and more than 80 μ m coating thickness, we can meet the
customer requirements in parts to make the coating thickness up to 100 μ m or more.
2.Combined closely with the plating , it has high corrosion resistance in the case of marine salt spray corrosion of industrial.
3.Hot-dip galvanized surface can get bright appearance and uniform color.
二.Spraying
1.We adopt the advanced electrostatic spraying production line to make coating thickness more than 100 μ m.
2.Our outdoor UV polyester powder does not fade with long exposure to the Sun and with more than 5 year use.
3.Dense coating, adhesion, impact resistance and good toughness help it not fall off more than 10 years.
4.With spray smooth and bright surface and offered sand, marble, metal pattern, silk as well as a variety of
surface textures ,it has a very good decorative effect!
5.It meets GB/T 15607-1995 standard.
Design:
Lofting and design software :We have transmisson power pole design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly.
