25-40m Galvanized High Mast Pole GR65 For Garden/Square/Street/Stadium

Large Image : 25-40m Galvanized High Mast Pole GR65 For Garden/Square/Street/Stadium

Product Details:

Place of Origin:	Jiangsu
Brand Name:	milkyway
Certification:	ISO9001:2015
Model Number:	yin-he

Payment & Shipping Terms:

Minimum Order Quantity:	one container
Price:	USD 130-180/pieces
Packaging Details:	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time:	always 2 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 pieces per month

Contact Now

Detailed Product Description

Material:	Q355 GR50 GR65	Design:	Against 8 Grade Of Earthquake
Height:	25-40m	Thickenss:	1-30mm
Wind Speed:	160km/h	Port:	Always Shanghai
Galvanization Standard:	ASTM A123	Length Of Per Section:	Within 14m Once Forming Without Slip Joint
High Light:	40m High Mast Pole , Galvanized High Mast Pole , GR65 High Mast Light Pole

Specifications:

Place of origin	China
Material	SteelQ235,Q345
Application	Garden, Square, Street, Stadium etc.
Pole’s height	25m-40m or as customer’s requirement
Shape of pole	Tapered Round, Shafts are made of steel sheet that folded into required shape and welded by automatic welding machine
Brackets/ Arm	As per customer’s requirement
Wall thickness	2.5mm to 20mm

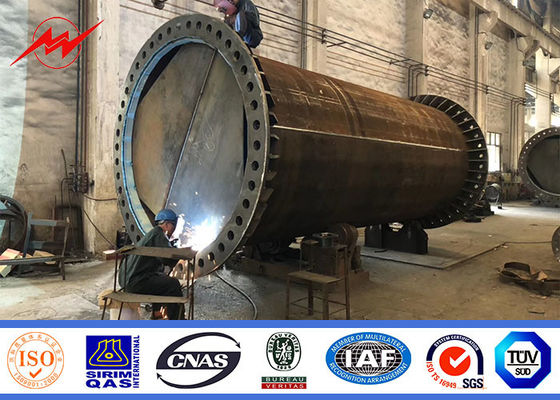

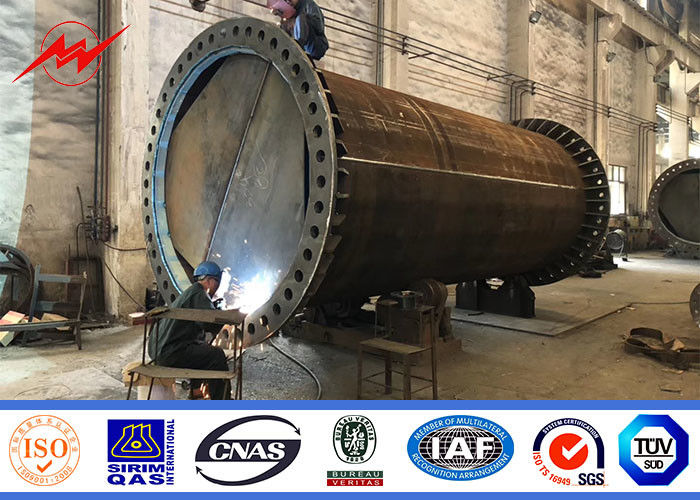

Welding	Using automatic internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard. .
Base plate mounted	Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted	The length buried underground as per customer’s requirement.
Galvanizing	Hot dip galvanization with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.
Powder coating	Pure polyester powder painting, color is optional according to RAL color standard.
Jointing	Jointing of pole with insert mode, face to face joint mode . Every lighting pole has a unique code. All sections belonging t o one pole have the same code, so it’s easy to assembly.
Wind Resistance	Against wind pressure of 160Km/h
Earthquake Resistance	Against earthquake of 8 grade
Quality Control	We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.
Certificates	ISO9001:2008 etc.

Descripition of material:

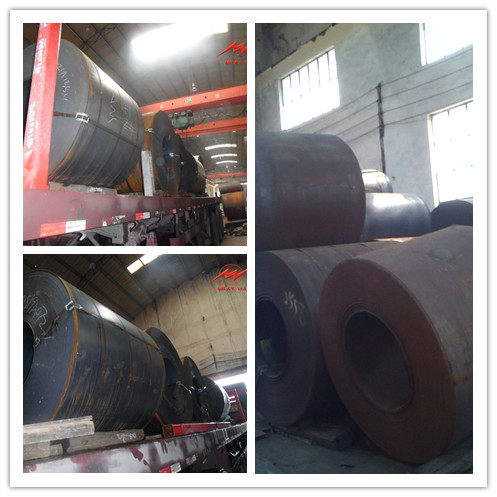

1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped

vertical steel barwith hot galvanized anti-corrosion treatment

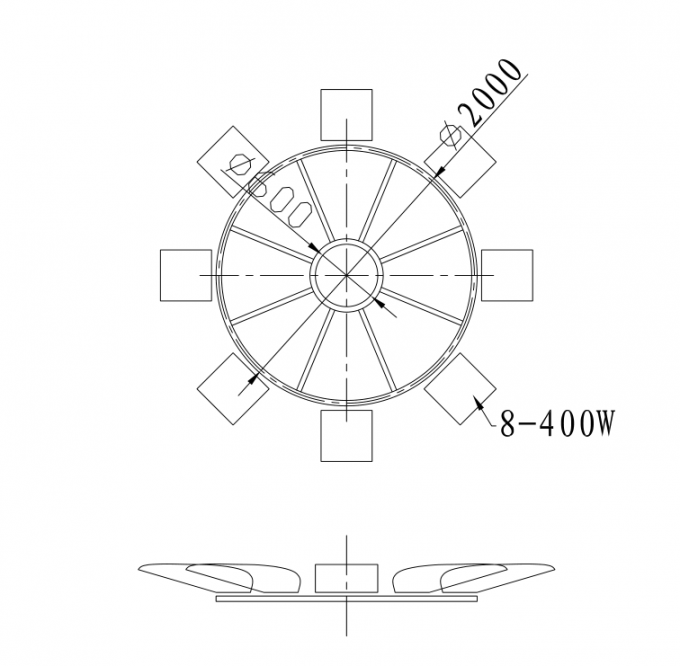

2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel

HDG Painting 70M High Mast Pole with Lifting System for Plaza Lighting 0

Feature:
Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
Light source :400w-1000w sodium light

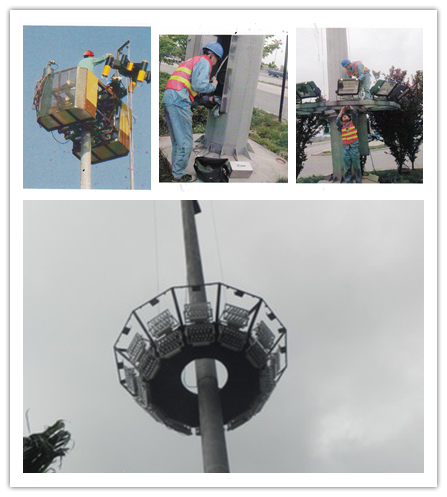

Installation:
1.high-pressure sodium lamp with external ballast and Triggers installed in light tray.

2.when replacing or repairing light and other electrical appliances, you should use special wrench to open it.
3.control box installed at the poles or the lower part of the poles
