35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System

Certification
Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System

China 35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System supplier
35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System supplier 35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System supplier 35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System supplier 35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System supplier

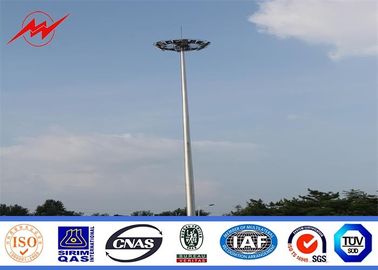

Large Image :  35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO9001
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: Naked Package or naked
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Contact Now
Detailed Product Description
Height: 35m Light: 1000w Metal Halide Lamp
Headframe: Round Or Square Top Surface: Head Frame Type
Surface Finished: Powder Coating Application: Street Way,highway,airport,Stadium

35m Highway High Mast Pole Lamp with 1000w Metal Halide Lamp Auto-Lifting System



Technical Specification



20 sided polygonal continuosly tapered cross section
Headframe at the top shaft will be tilted 10 degrees for floodlights aiming
Fixed platform and service ladder at the top of the shaft for maintenance purpose
Maintenance Cage lifts by hoist unit complete with safety brake to reach the fixed platform



Quick Product Description-High Mast Lighting Pole



Item 35 MTR
Material Construction Q345(Gr50)
No. of Longitudinal Welds Single/Double
Cross section of mast in polygon((No. of Sides) Octagonal,dodecagon,hexadecagon
Thickness 4mm,6mm,8mm,10mm or customized design
Individual Section’s Length according to customer desgin
Base & Top dia (OAF) according to customer desgin
Thickness of galvanization(Average) 86 Microns
Size of opening door at base 360 x 1400 mm
Size of base plate diameter 650 mm
Size of base plate thickness 32 mm
Number of foundation bolts 12
Bolt diameter 28 mm

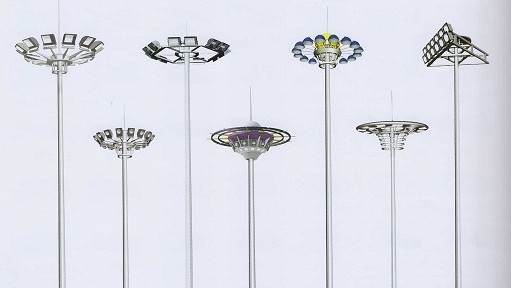

High Mast Pole Design



35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System

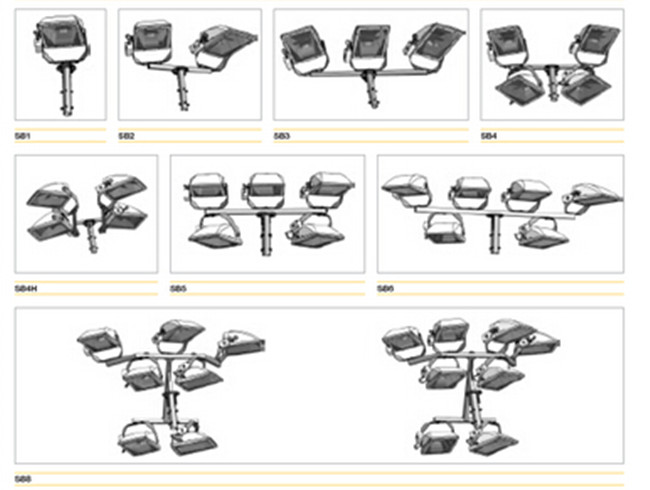

ACCESSORIES

IMPORTANT TECHNICAL FEATURES



FIXED TYPE HEAD FRAME :

Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.



WINCHES :

Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.



FINISH :

The complete mast with component is fully hot dip galvanized for longer life.



LANTERN CARRIAGE :

We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.



35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System

Advantages

Stainless steel lowering cables
No strain on lowering cables when system is in the home position
Red indicator discs show when the system is unhooked or in the home position
Lightning rod
All steel components are hot dip galvanized and all coloured components are hot dip galvanized and powder coated
All HMFJ60 systems have a 300kg capacity and can typically hold up to twelve 2000W luminaires
All poles and systems are suitable for wind regions A and B
On site instruction on operation and maintenance

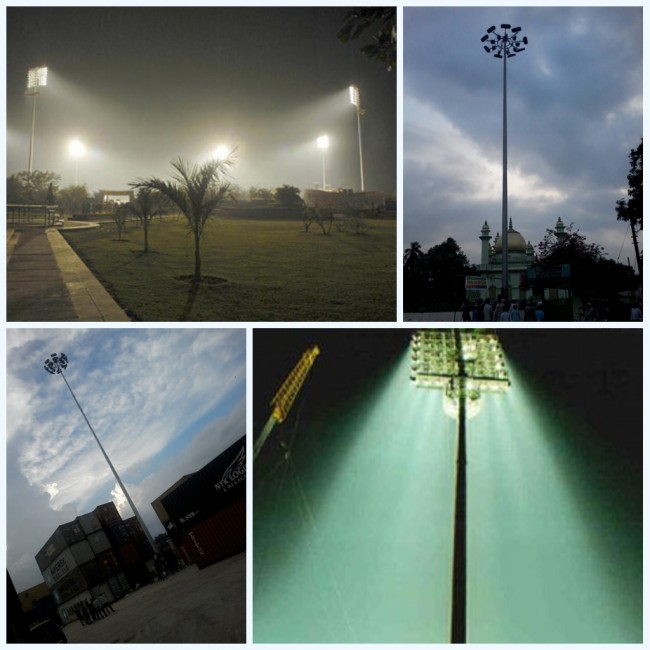

Application



1) Main Juction

2) Highways

3) Street Road

4) Storage Yard

5) Area Lighting

6) Party Plot



35m Highway High Mast Street Lamp Poles with 1000w Metal Halide Lamp Auto - Lifting System



Company Information



Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.

We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:

lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.

The entire range of equipment is manufactured using superior quality raw material and ensures reliability.

These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
