40m polygonal high mast pole sports center lighting with winch

China 40m polygonal high mast pole sports center lighting with winch supplier
40m polygonal high mast pole sports center lighting with winch supplier 40m polygonal high mast pole sports center lighting with winch supplier 40m polygonal high mast pole sports center lighting with winch supplier 40m polygonal high mast pole sports center lighting with winch supplier

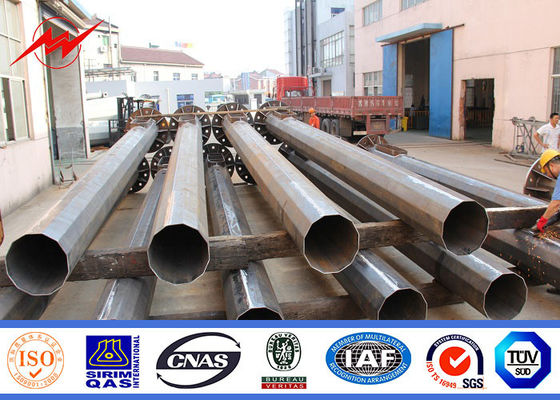

Large Image :  40m polygonal high mast pole sports center lighting with winch

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: /BV/ISO
Model Number: 40m polygonal high mast pole sports center lighting with winch

Payment & Shipping Terms:

Minimum Order Quantity: one 40 HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: 300 pieces pole per day
Payment Terms: T/T
Detailed Product Description
Product Name: 40m Polygonal High Mast Pole Sports Center Lighting With Winch Style: Hot Dip Galvanization
Thickness: 1mm To 30mm Height: From 20m To 50m
Shape: Conoid,multi-pyramidal,columniform,poly Welding Standard: AWS D1.1
Power: 400w-5000w
High Light:

Park Light pole

,

Sports Light Poles

Specifications

40m polygonal high mast pole sports center lighting with winch. High mast light using high thermal conductivity material and independent heat-sink per LED chip become an effective solution to heat problems then LED light decline can be reduced to a minimum making lamp life more than 80.000 hours. LED models availability up to 1100W let users to replace from 2000W to 3000W HPS or MH HID lamps with more than 85% energy saving and 200% maintenance costs savings. So Return of Investment (R.O.I) is much less than one year making this technology "mandatory" for large-scale outdoor high poles applications.

Using also the long life and high reliable Mean-Well power supply we have made a breakthrough. Use this design the power life has been as high as 65,000 hours or more, which ensure the reliability and stability of the total lighting system.

Using optical grade PMMA lens with several Beam angle options we also can reduce the light loss and increase the effective illumination distance up to 300 m.
IP67 protection grade is reached handling the product waterproof by the method of single lamp seal and sealed combining, ensure the water resistance of the lamp while meet the thermal conditions, making the lamp more secure, more reliable.


Height

From 20 m to 50 m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,street way  etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical


Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
                Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Torlance of
dimenstion

+- 2%

Power

400  W- 5000 W

Light panel

Various figure of slection ,material with hot dip galvanization steel frame ,
stainless steel ,special aluminum plate

Light Extension

Up to 30 000 ㎡

Lamp &Luminaire

Projector generally to be applied with safety grade IP65 Luminaire with high pressure
sodium lamp of long lift and high lighting efficiency ,or metal halide lamp with high CRI

Lifting system

Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute Euqiped e;
ectromagnetism brake and break –proof device,manual opeation applied under power cut

Electric appliance
control device

Electric appliance box to be be the holde of the pole ,lifting operation could be 5 meter
away from the pole through wire Time control and light control could be equipped to
realize full-load lighting mode and part lighitng
mode


Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other
standard by client required.


Joint of Poles

Insert mode,innerflange mode,face to face joint mode .


Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield
strength

355 mpa

Minimum ultimate
tensile strength

490 mpa

Max ultimate
tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We  has past flaw testing.Internal and external double welding makes the welding beautiful
in shape Welding Standard :AWS ( American Welding Society ) D 1.1


Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension
verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder
coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can
following by client required ,each 40HC or OT can loading how many pcs will calculation
base on the client actually specification and data.


Style

Aerial clog could be installed complied with clients desire to carry camera or industrial
antenna


40m polygonal high mast pole sports center lighting with winch 0

Types

The high mast light have different types, we can arrange all the light to aim in one direction or arranged in a circle. Also it can use the lifting system or fixed ladder, you can choose a better one.

40m polygonal high mast pole sports center lighting with winch 1



Inspection:

To assure our products qualified ,we take steps as follows :

  • Management team : We have employ the experienced manager to take charge of the overall management ,especially the technical management and quality management .
  •  Introducing ISO management ,We are awarded ISO 9001:2008 certificate .
  • QC Inspection:It is our company policy that all the finish product should be inspected by our specialized QC in every manufacture steps and before every shipment


40m polygonal high mast pole sports center lighting with winch 2
