Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System

China Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System supplier
Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System supplier Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System supplier Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System supplier Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System supplier

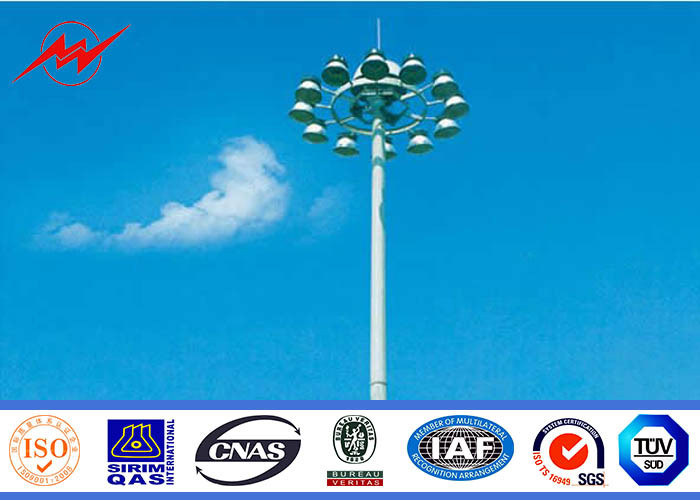

Large Image :  Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: High Mast Pole Application: Airport Lighting
Surface Treatment: Hot Dip Galvanization Powder Painting Dimension Torlance: +- 2%
Welding Standard: AWS D 1.1 Galvanization Standard: ASTM A 123
Material: Q235 Safty Factor: 1.8
High Light:

high mast lighting pole

,

Sports Light Poles

Airport 25M 6 Lamps High Mast Pole with Lifting System





 Specifications:





Height

From 20m to 55m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Optical assembly of lighting fixture

IP 65

Electroshock resistant protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere of lighting fixture

-35 ℃~+45 ℃

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

Style

Size and styles are veriable as per customer request





 Description:




 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.



 The information to inquiry or purchase
 -Steel pole height
 -Dimension of the flange
 -The qty of the lamps
 -Using the lifting system or climbing rungs
 -Wind speed
 -Destination port
 -Other.

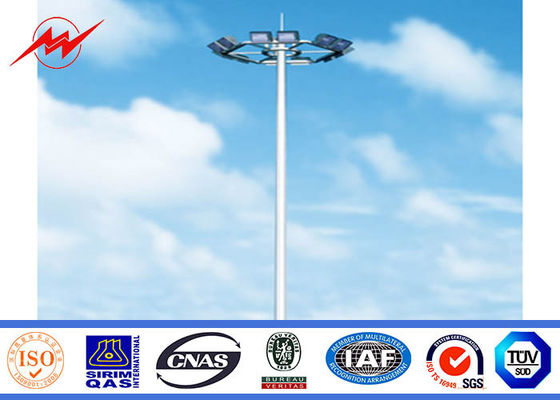

 Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System 0





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

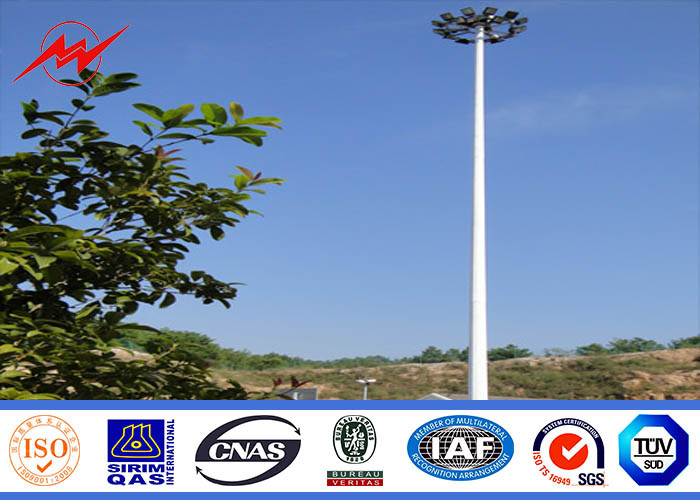

Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System 1







 Company Introduction:


 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

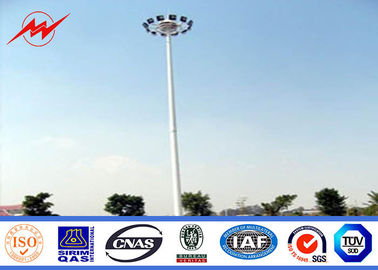

 Airport Outdoor 25M 6 Lamps High Mast Pole with Lifting System 2
