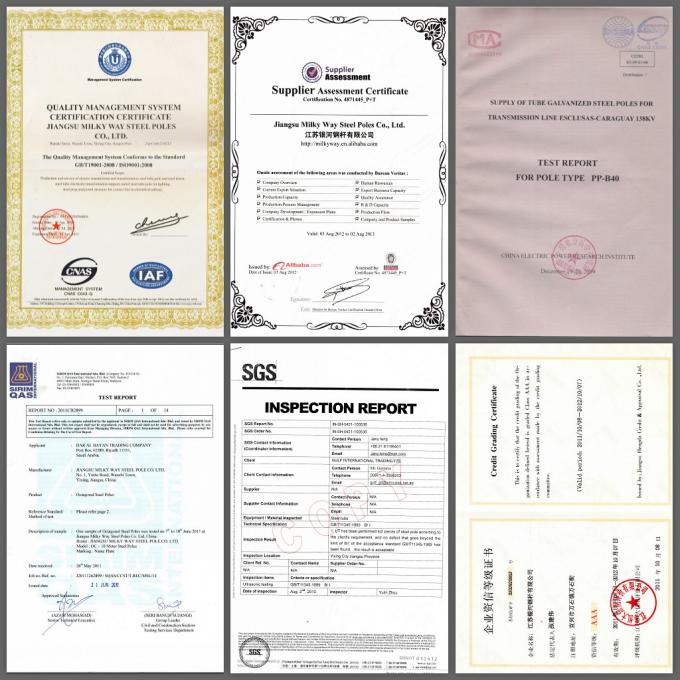

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen

China Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen supplier
Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen supplier Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen supplier Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen supplier Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen supplier

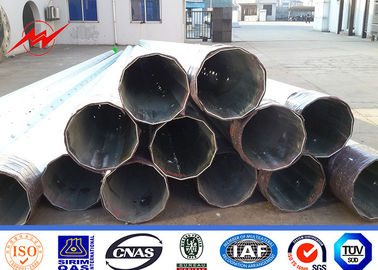

Large Image :  Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation

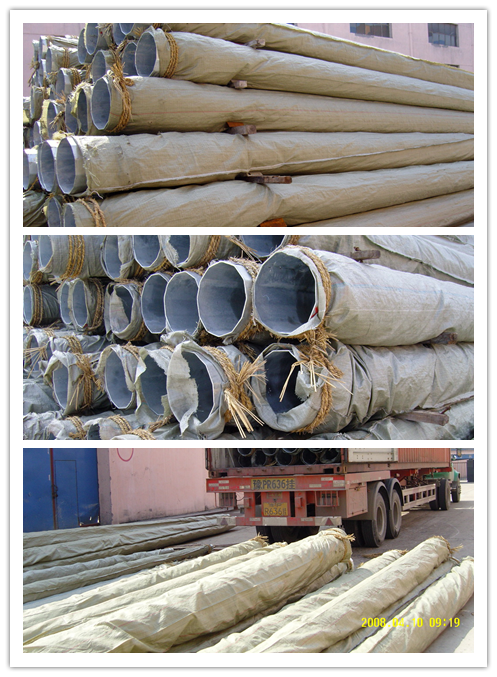

Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Electrical Power Distribution
Quality Control: ISO 9001 Welding Standard: AWS (American Welding Society ) D 1.1
Surface Treatment: Hot Dip Galvanization Design: Customized
High Light:

electrical power poles

,

electrical transmission poles

 Grade One Polygonal 9m Steel Utility Pole for Electrical Transmission With Bitumen





 Specifications:



series Outside Diametar Wall Thicness Plain and Tubes
mm Min. mm /SWG Kg./M Mtrs./Ton
15 L 21.3 2 0.947 1058
      M 2.6 1.21 826
      H 3.2 1.44 694
20 L 26.9 2.3 1.38 725
      M 2.6 1.56 641
      H 3.2 1.87 535
25 L 33.7 2.6 1.98 505
      M 3.2 2.41 415
      H 4 2.93 341
32 L 42.4 2.6 2.54 394
      M 3.2 3.1 323
      H 4 3.79 264
40 L 48.3 2.9 3.23 310
      M 3.2 3.56 281
      H 4 4.37 229
50 L 60.3 2.9 4.08 245
      M 3.6 5.03 199
      H 4.5 6.19 162
65 L 76.1 3.2 5.71 175
      M 3.6 6.42 156
      H 4.5 7.93 126
80 L 88.9 3.2 6.72 149
      M 4 8.36 120
      H 4.8 9.9 101
90 L 101.6 3.6 8.7 115
      M 4 9.63 144
      H 4.8 11.5 87
100 L 114.3 3.6 9.75 103
       M 4.5 12.2 82
      H 5.4 14.5 69
110 L 127 4.5 13.6 74
       M 4.8 14.5 69
      H 5.4 16.2 62
125 L 139.7 4.5 15 67
       M 4.8 15.9 63
      H 5.4 17.9 56
135 L 152.4 4.5 16.4 61
       M 4.8 17.5 57
      H 5.4 19.6 51

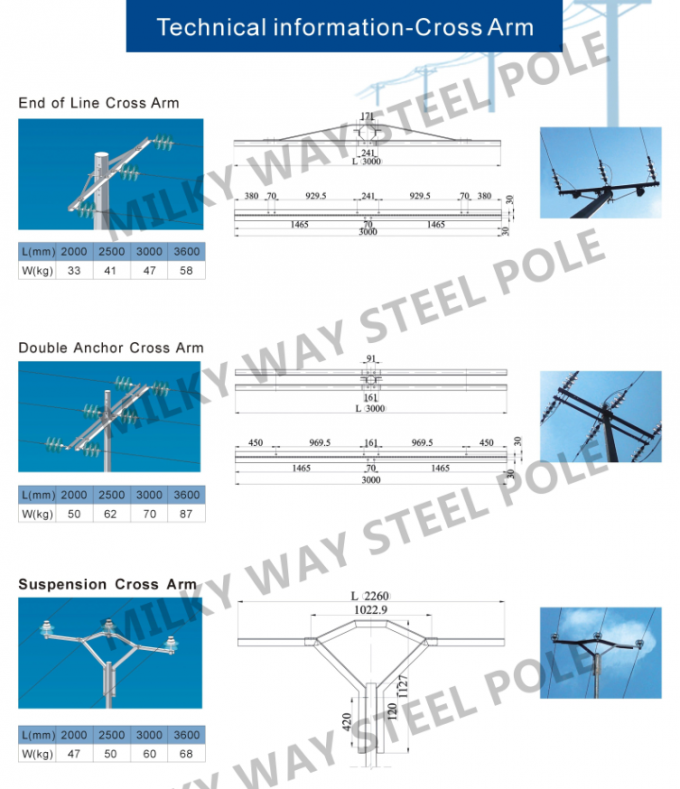

 Technical information-Cross Arm

 The followed listed is the most frequently used design,and is made from angel steel.And the cross arm  will be fixed to the pole shaft connecting by bolts through the pre-drilling holes on both the cross arms  and the pole shaft.If you have any other requirements on the design,material and connecting method for  cross arm,pls contact us.

 Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen 0





 More Pictures:

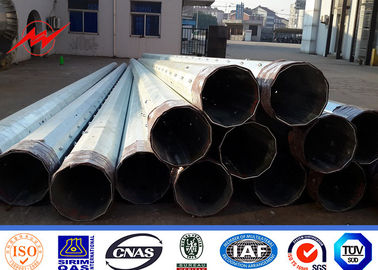

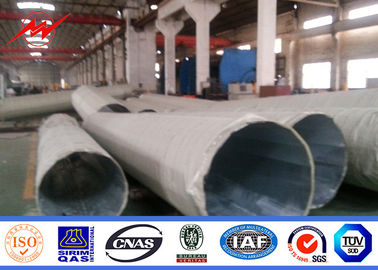

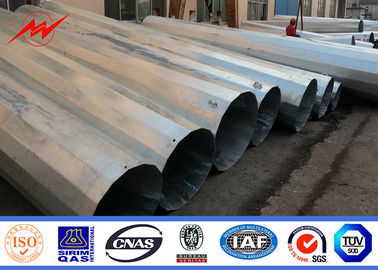

 Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen 1



 Company Introduction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

 Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen 2
