Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen

1 pcs
MOQ
Negotiation
Price
Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Steel Utility Pole
Application: Electrical Power Distribution
Quality Control: ISO 9001
Welding Standard: AWS (American Welding Society ) D 1.1
Surface Treatment: Hot Dip Galvanization
Design: Customized
Highlight:

electrical power poles

,

electrical transmission poles
Basic Infomation
Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Steel Utility Pole
Payment & Shipping Terms
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Product Description

 Grade One Polygonal 9m Steel Utility Pole for Electrical Transmission With Bitumen





 Specifications:



series Outside Diametar Wall Thicness Plain and Tubes
mm Min. mm /SWG Kg./M Mtrs./Ton
15 L 21.3 2 0.947 1058
      M 2.6 1.21 826
      H 3.2 1.44 694
20 L 26.9 2.3 1.38 725
      M 2.6 1.56 641
      H 3.2 1.87 535
25 L 33.7 2.6 1.98 505
      M 3.2 2.41 415
      H 4 2.93 341
32 L 42.4 2.6 2.54 394
      M 3.2 3.1 323
      H 4 3.79 264
40 L 48.3 2.9 3.23 310
      M 3.2 3.56 281
      H 4 4.37 229
50 L 60.3 2.9 4.08 245
      M 3.6 5.03 199
      H 4.5 6.19 162
65 L 76.1 3.2 5.71 175
      M 3.6 6.42 156
      H 4.5 7.93 126
80 L 88.9 3.2 6.72 149
      M 4 8.36 120
      H 4.8 9.9 101
90 L 101.6 3.6 8.7 115
      M 4 9.63 144
      H 4.8 11.5 87
100 L 114.3 3.6 9.75 103
       M 4.5 12.2 82
      H 5.4 14.5 69
110 L 127 4.5 13.6 74
       M 4.8 14.5 69
      H 5.4 16.2 62
125 L 139.7 4.5 15 67
       M 4.8 15.9 63
      H 5.4 17.9 56
135 L 152.4 4.5 16.4 61
       M 4.8 17.5 57
      H 5.4 19.6 51





 Technical information-Cross Arm

 The followed listed is the most frequently used design,and is made from angel steel.And the cross arm  will be fixed to the pole shaft connecting by bolts through the pre-drilling holes on both the cross arms  and the pole shaft.If you have any other requirements on the design,material and connecting method for  cross arm,pls contact us.

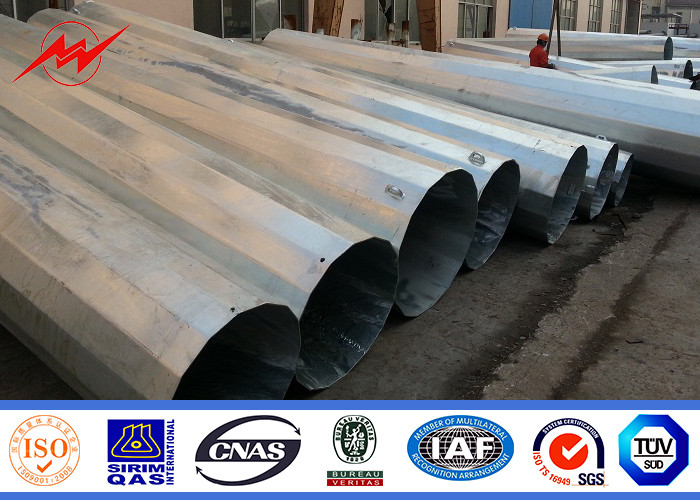

 Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen 0





 More Pictures:

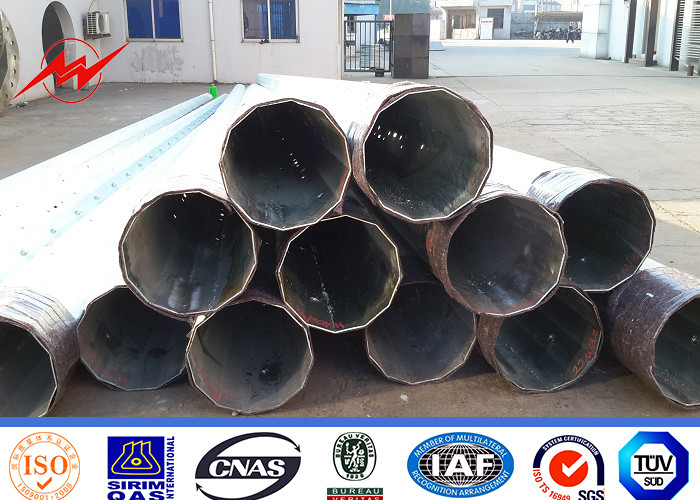

 Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen 1



 Company Introduction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

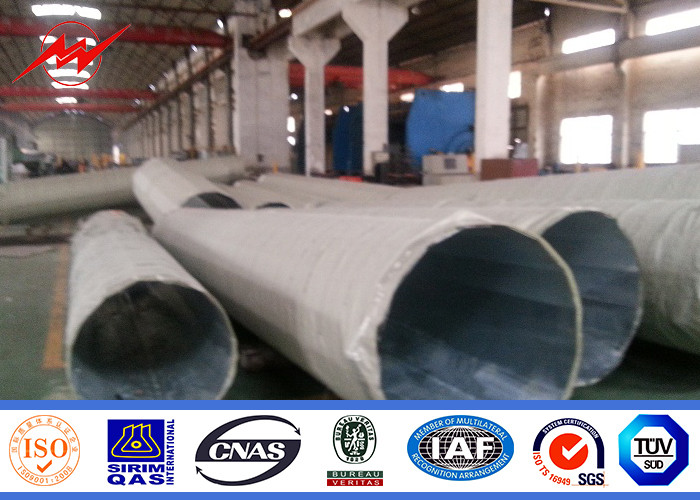

 Customized Polygonal 9m Steel Power Transmission Line Poles With Bitumen 2



Tag:

electrical power poles

electrical transmission poles

high voltage pole
