Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole

China Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole supplier
Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole supplier Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole supplier Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole supplier Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole supplier

Large Image :  Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: High Mast Poles Application: Plaza Lighting
Wind Speed: 30m/s Galvanization Thickness: Average 86μm
Thickness: 1 Mm To 30 Mm Warranty: 15 Years
High Light:

high mast lighting pole

,

Park Light pole

 Powder Coating Flanged 20m High Mast Poles with 12 Lamps Wind Speed 30m/s




 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

 Feature:
 Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is  devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
 Light source :400w-1000w sodium light

 Specifications:



Place of origin

China

Material

SteelQ235,Q345

Application

Garden, Square, Street, Stadium etc.

Pole’s height

25m-40m or as customer’s requirement



Shape of pole

Tapered Round,

Shafts are made of steel sheet that folded into required shape

and welded by automatic welding machine

Brackets/ Arm

As per customer’s requirement

Wall thickness

2.5mm to 20mm

Welding

Using automatic internal and external double welding makes the

welding beautiful in shape. And confirms with international welding standard. .

Base plate mounted

Base plate is square or round in shape with slotted holes for anchor

bolt and dimension as per customer’s requirement.

Ground mounted

The length buried underground as per customer’s requirement.

Galvanizing

Hot dip galvanization with Chinese standard GB/T 13912-2002 or

American standard ASTM A123, IS: 2626-1985.

Powder coating

Pure polyester powder painting, color is optional according to

RAL color standard.



Jointing

Jointing of pole with insert mode, face to face joint mode .

Every lighting pole has a unique code. All sections belonging to

one pole have the same code, so it’s easy to assembly.

Wind Resistance

Against wind pressure of 160Km/h

Earthquake Resistance

Against earthquake of 8 grade





Quality Control

We strictly follow the standard of ISO9001-2008. Quality is in the first place

at every stage of production to ensure

the product compliance to the specification/standards.

Careful inspections are carried out by highly trained inspection engineers

during every procedure from raw material stage to finished product and delivery.

Certificates

ISO9001:2008 etc.

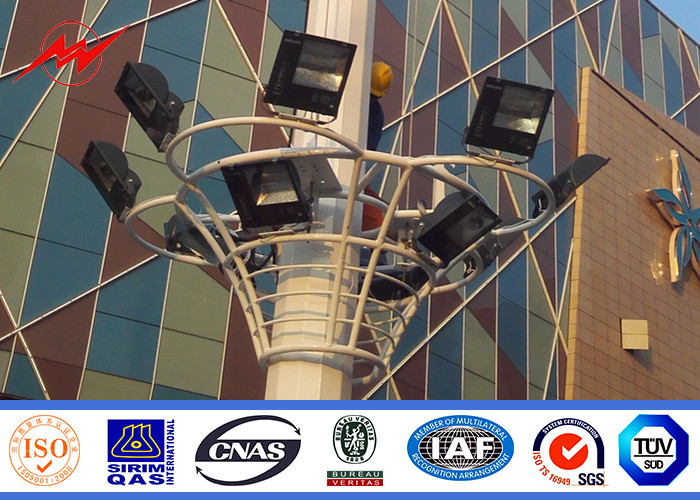

Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole 0

 Application:



Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower





 Standard:
 Electric box protection level: IP23
 Lamp protection level: IP54

 Installation:
 1.high-pressure sodium lamp with external ballast and Triggers installed in light tray.
 2.when replacing or repairing light and other electrical appliances, you should use special wrench to  open it.
 3.control box installed at the poles or the lower part of the poles

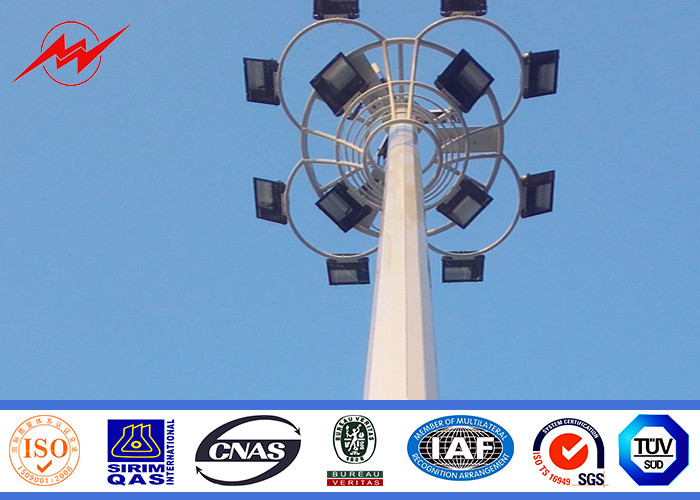

 Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole 1





 Our Projects:

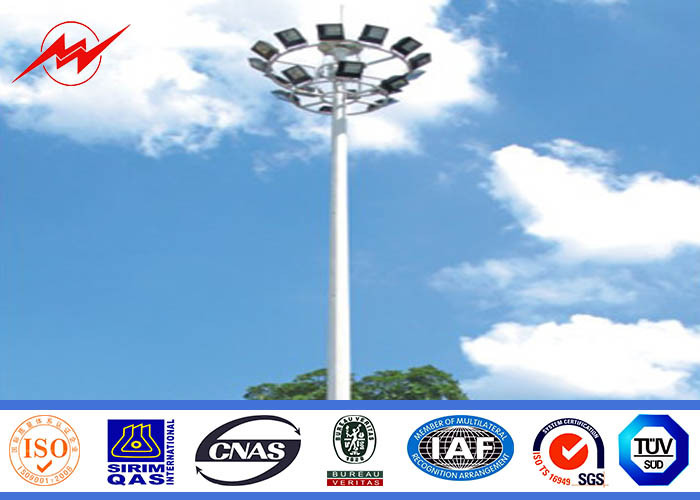

 Powder Coating Flanged 20m High Mast Poles , Plaza / Garden Lighting Pole 2
