Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport

China Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport supplier
Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport supplier Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport supplier Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport supplier Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport supplier Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport supplier

Large Image :  Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: High Mast Pole Application: Seaport Lighting
Standard: ISO Gavanization Standard: ASTM A 123
Welding Standard: AWS D 1.1 Lamp Power: 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz
Wind Speed: 160 Km/Hour

Q345 steel street LED high mast lighting pole of steel pole manufacturer 20m,25m



 Description:

 Our Floodlighting pole can be appied to the lighting of airport, sea port, plaza, stadium. And we have  different headframe design for the the mounting for different quantity of floodlight
 Designed and manufacutred for durability, corrosion resistance and visual appeal.



 Specifications:

Height

From 20 m to 80 m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Torlance of the dimenstion

+- 2%

Power

400  W- 5000 W

Light panel

Various figure of slection ,material with hot dip galvanization steel
frame ,stainless steel ,special aluminum plate

Light Extension

Up to 30 000 m2

Lamp &Luminaire

Projector generally to be applied with safety grade IP65
Luminaire with high pressure sodium lamp of long lift and
high lighting efficiency ,or metal halide lamp with high CRI

Lifting system

Lifter fixed in the inner of the pole with lifting speed of 3~5
meter per minute Euqiped e;ectromagnetism brake and break –proof
device,manual opeation applied under power cut

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Style

Aerial clog could be installed complied with clients desire to carry
camera or industrial antenna



Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport









 Raising-and-Lowering System Types
 A:Single Drum 150/300/600/1000KG
 B:Double Drum 800/1000KG
 C: Dual Hanger 150/300/600/800/1000KG
 D:Double Hoist Main:600/1000KG Sub:150KG



Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport

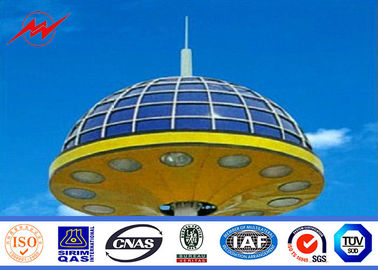

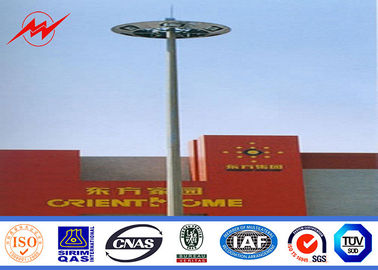

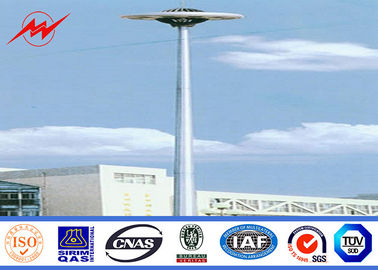

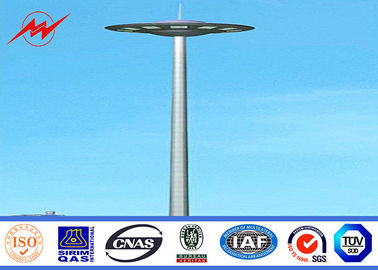

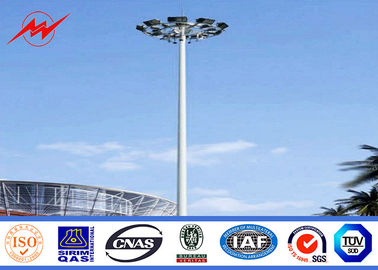

 More Photos:

 Q345 Steel Street LED High Mast Lighting Pole 20m / 25m For Airport / Seaport
