Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line

China Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line supplier
Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line supplier Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line supplier Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line supplier Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line supplier Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line supplier

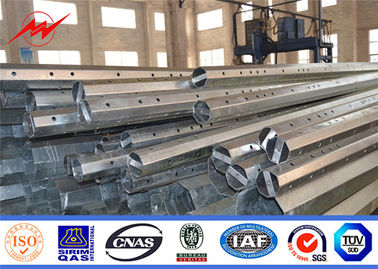

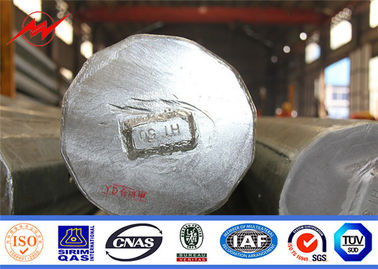

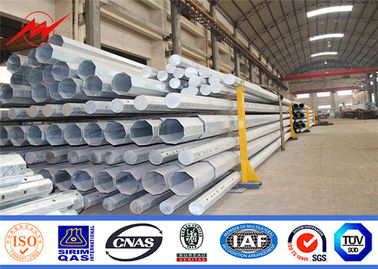

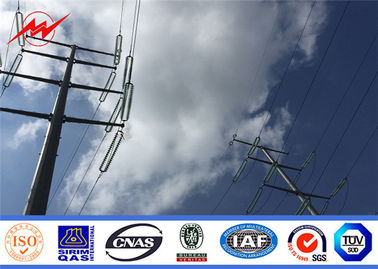

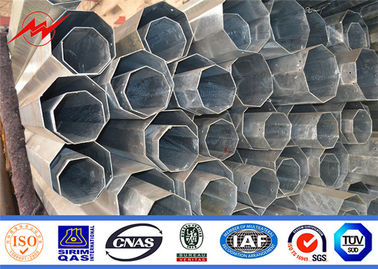

Large Image :  Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: Steel Utility Pole Application: Electricity Transmission
Galvanization Thickness: Average 86μm Standard: ISO
Lift Time: 50 Years Gavanization Standard: ASTM A 123
Dimenstion Torlance: +- 2%
High Light:

metal utility poles

,

electric telescoping pole

high voltage tower overhead transmission line steel lattice masts 75ft 80ft utility flange pole





 Specifications:



Type

Straight Pole, Tensile Pole, Turn Pole

Max length per section

14 m

Thickness

2.5mm~30 mm

Shape

Conical or polygongal tapered

Material

Q235B/A36/A283 M Gr.C /SS400/S235 JR/St 37-2 /Fe 360

Power

10 KV ~ 550 KV

Electroshock resistant protective grade

Grade  Ⅰ

Finish

hot dipgalvanization ,blasting,powder coating ,painting

Galvanization standard

ASTMA 123 / EN ISO 1461

Welding

AWS D 1.1 /BS EN 1011-1,BS EN 1011-2

Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.
Torlance of the dimenstion +- 2%
Design of pole Against earthquake of 8 grade



 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.



 Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line 0



  Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

 Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line 1





 Company Introduction:

 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.



 Steel Lattice Masts 75ft 80ft Utility Flange Pole High Voltage Tower Overhead Transmission Line 2
