35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line

China 35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line supplier
35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line supplier 35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line supplier 35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line supplier 35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line supplier

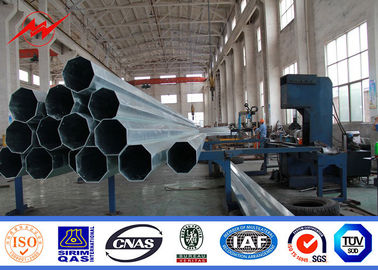

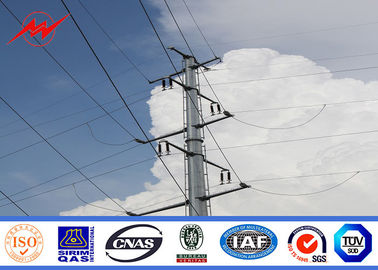

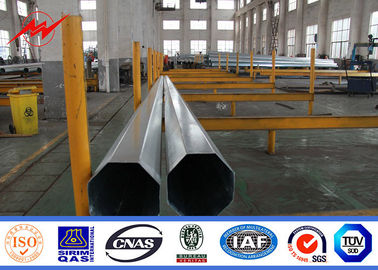

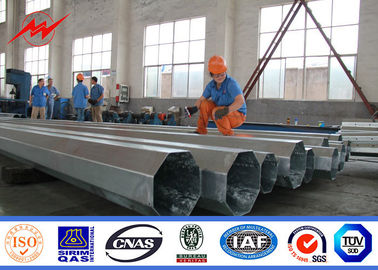

Large Image :  35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO/SGS/BV
Model Number: 35FT NEA Standard Steel Power Pole Exported To Philippines For 69kv Transmission Line

Payment & Shipping Terms:

Minimum Order Quantity: one 40HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Contact Now
Detailed Product Description
Thickness: 1mm To 30mm Shape: Conoid, Multi-pyramidal,Columniform, Polygonal Or Conical
Power: 10kv~550kv Suit For: Electricity Distribution
Wind Speed: 160km/h, 30m/s Welding Standard: AWS D 1.1

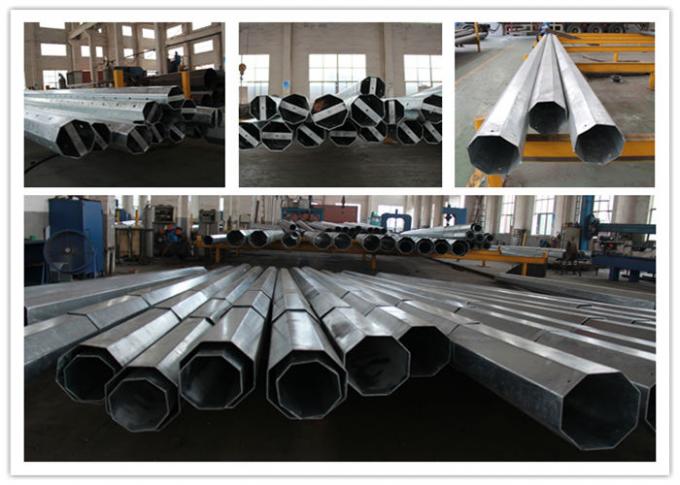

35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line



Our Company



Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.



We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.





Mechanical Property



The metal supports are designed to withstand the nominal force F and the pressure of the wind V

 applied at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the

steel is larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened

 when breaking is around 2 times of design load.

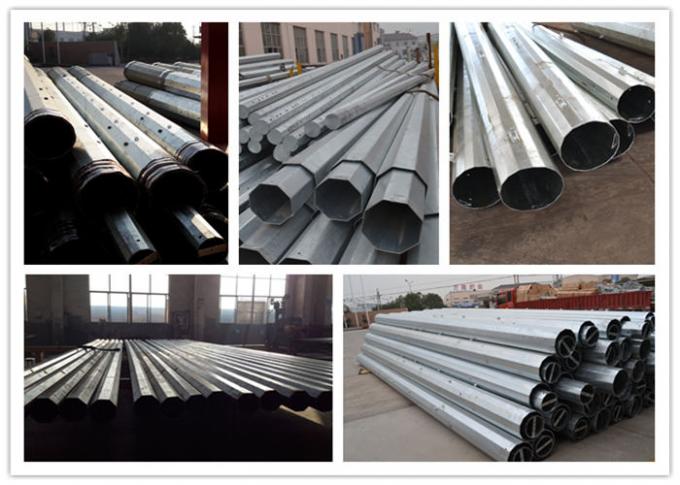

35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line

Galvanization



Standard: ASTM A123

Average thickness of the galvanization: minimum yield strength is 86um







Manufacturer Tolerance



- Component Length: -25mm to 75mm

- Straightness: 2mm/m

- Twisting degree: 1̊ per 3 meters length

- Ovalisation : Maximum is 3%

- The average diameter : +/-0.5%

-Slip length: +/-150mm





Standard Accessory



- Top plate

- Base plate

- Bottom Strip

- Standard Hole

- Climbing Rung

- Anchor bolt

- Bitumen Protection
- Painted Marking

- Removable Ladder



35FT NEA Standard Steel Power Pole , Metal Utility Poles For 69kv Transmission Line



The information to inquiry or purchase



- Steel pole height and force

- Cross arm type and length, the position to install in the steel pole

- The method to fix the cross arm (use Bolt to connect or use one or two   template to weld in the steel

pole to install the cross arm)

- Safety factor of the steel pole

- Wind speed

- Type of climbing rung

- Destination port

- Others
