60FT 65FT 70FT 75FT Q345B/A572 Steel Power Pole With 8 Grade Earthquake Safety

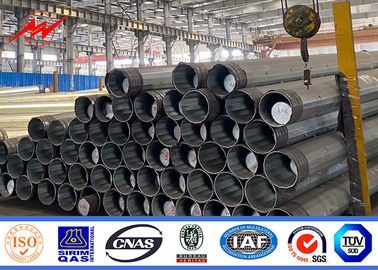

Large Image : 60FT 65FT 70FT 75FT Q345B/A572 Steel Power Pole With 8 Grade Earthquake Safety

Product Details:

Place of Origin:	Jiangsu
Brand Name:	milkyway
Certification:	ISO9001:2015
Model Number:	yin-he

Payment & Shipping Terms:

Minimum Order Quantity:	one container
Price:	USD 130-180/pieces
Packaging Details:	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time:	always 2 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 pieces per month

Contact Now

Detailed Product Description

Material:	Q355 GR50 GR65	Design:	Against 8 Grade Of Earthquake
Height:	25-40m	Thickenss:	1-30mm
Wind Speed:	160km/h	Port:	Always Shanghai
Galvanization Standard:	ASTM A123	Length Of Per Section:	Within 14m Once Forming Without Slip Joint
High Light:	A572 Steel Power Pole , Q345B power transmission pole , 75FT power transmission pole

Specifications:

Suit for	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Torlance of the dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data

Material
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

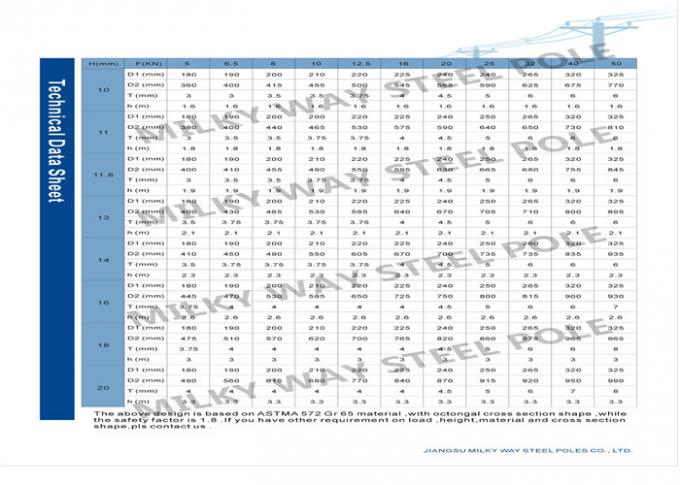

115KV 75Feet Tapered Round Steel Utility Power Poles / Galvanized Steel Pole 0

Description:
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
These are the standard accessories of the electric pole.

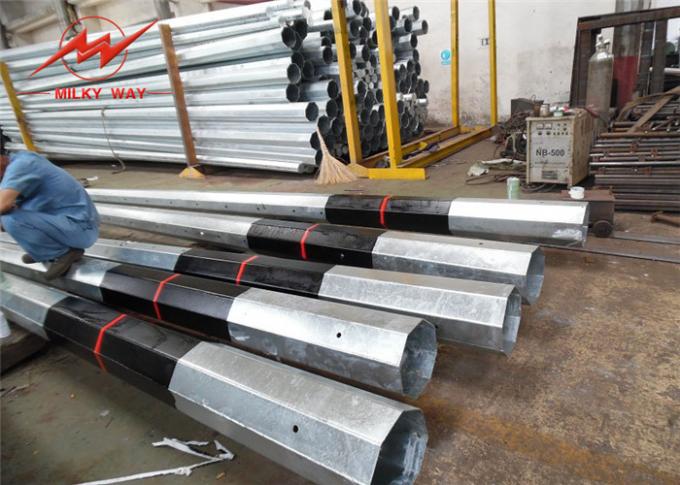

115KV 75Feet Tapered Round Steel Utility Power Poles / Galvanized Steel Pole 1

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

115KV 75Feet Tapered Round Steel Utility Power Poles / Galvanized Steel Pole 2

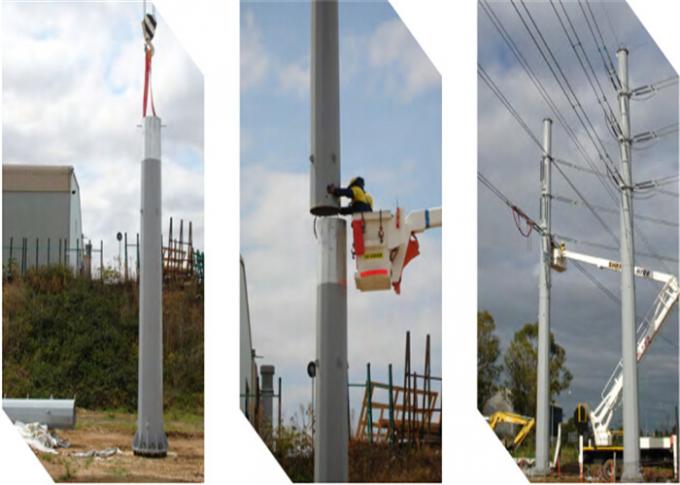

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
