80ft 90ft Steel Electric Pole For Transmission Line Project

Large Image : 80ft 90ft Steel Electric Pole For Transmission Line Project

Product Details:

Place of Origin:	Jiangsu
Brand Name:	milky way
Certification:	ISO9001:2015
Model Number:	steel pole

Payment & Shipping Terms:

Minimum Order Quantity:	500pieces
Price:	USD 1-500/poles
Packaging Details:	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time:	always 2 weeks
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000per month

Contact Now

Detailed Product Description

Material:	Q235 Q345 GR65 SS400	Wind Speed:	35m/s
Origin Of Place:	Yixing	Type:	Burial
Surface Treament:	Hot Dip Galvanization	Galvanization Standard:	ASTM A123
Welding:	AWS D1.1	Warrenty:	30 Years
Lifetime:	50 Years
High Light:	80ft steel electric pole , transmission line project steel electric pole , 90ft steel power pole

Specifications

Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 , SS400, SS490, to ST52-
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Joint of Poles	Insert mode,innerflange mode,face to face joint mode .
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Production Process	Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal ) →Dimension verify →Flange welding →Hole drilling → Calibration → Deburr →Galvanization or powder coating ,painting →Recalibration →Thread →Packages

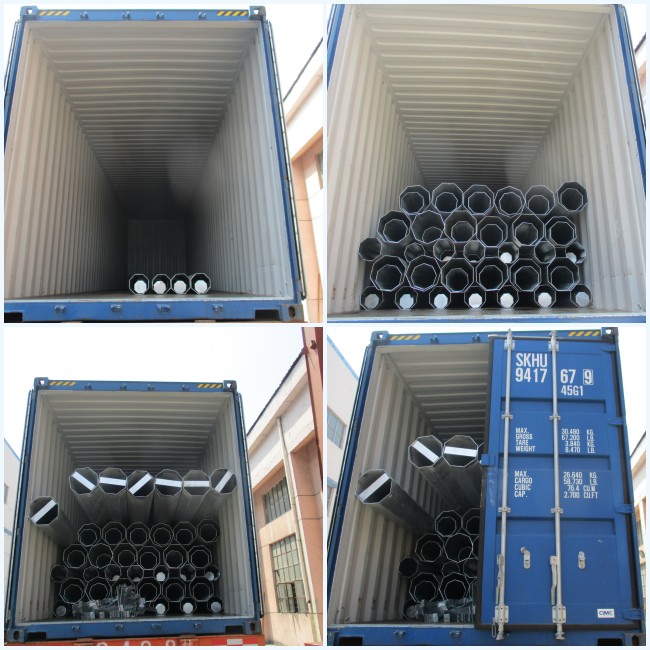

Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
