15m Galvanized Steel Electric Pole Column Power Line Iso Approval

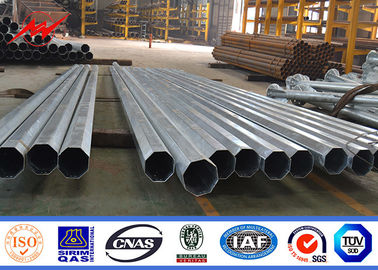

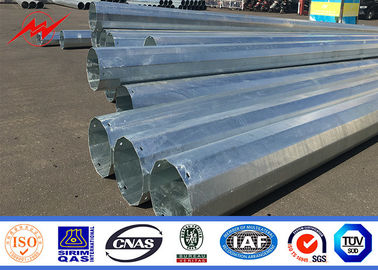

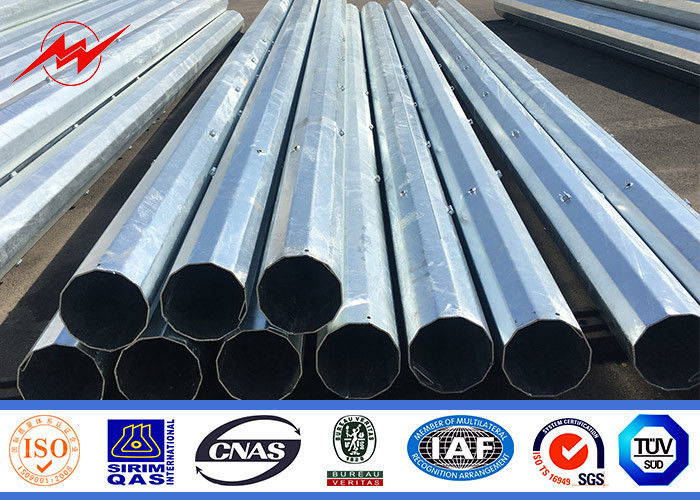

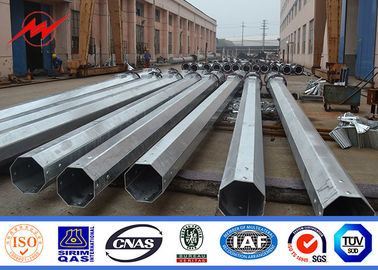

Large Image : 15m Galvanized Steel Electric Pole Column Power Line Iso Approval

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	milky way
Certification:	ISO9001:2015
Model Number:	69KV

Payment & Shipping Terms:

Minimum Order Quantity:	ONE CONTAINER
Price:	USD 130-180POLE
Packaging Details:	The normal package is container(Size: LWH). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time:	ALWAYS 20DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000POLES/MOUTH

Contact Now

Detailed Product Description

MATERIAL:	S355JR	APPLICATION:	ELECTRICITY DISTRIBUTION
THICKNESS:	2.5-10MM	SHAPE:	POLYGON
GALVANIZATION:	ASTM A123,average Coationg Not Less Than 85um	WELDING:	AWS D1.1,penetration 100%
LIFETIME:	50 YEARS	WIND SPEED:	160KM/H
ULTIMATE TENSILE STRENGTH:	490-620MPA
High Light:	15m steel electric pole , column galvanized steel electric pole , iso steel electric pole

Specifications

1. small floor area & large bearing load
2. reasonable distribution of load carrying capability
3. steel electric pole

Product information

Steel tower type	Tubular steel pole
Voltage	220kV and below
Material	Q235,Q345,Q420
Welding	CO2 protection welding or submerged arc auto methods
Shape	Generally round/polygonal face, and can be designed as the customers require.
Surface laye	Zink layer with hot dip galvanized
Lifetime	More than 50 years
Production capacity:	30000MT per year

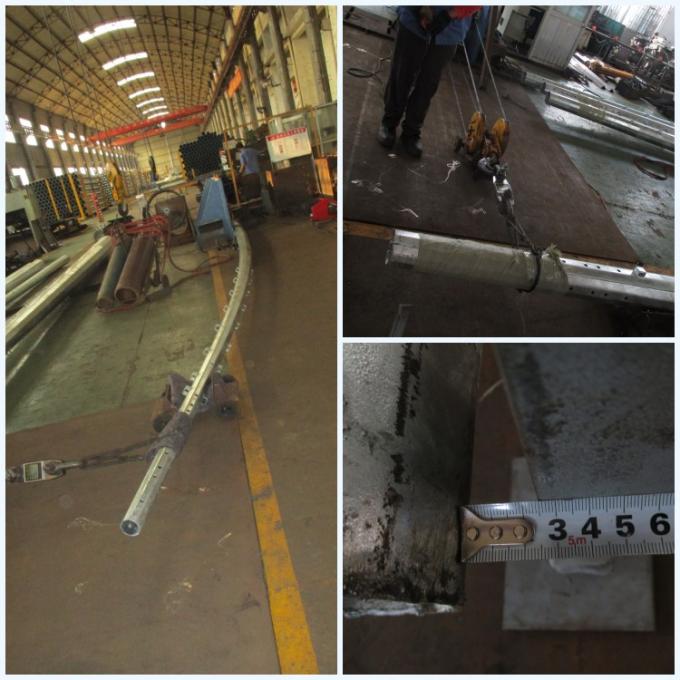

Production Line

The fabrication process as cutting plate, bending/forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized , recalibration, inspect according to client’s required then delivery on time as Constract.

Material

Applied to the material of general-purpose steel GB/T1591-2008, ASTM A36, ASTM A572.

Q235 used in China , which equivalent to SS400, ASTM A36.

Q345 used in China, which equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa.

Q460 used in China , which Gr65.

Design and Detail

Lofting and design software :We have transmisson power pole design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly

15m Galvanized Steel Column Electrical Power Pole For Power Line BV Approval 0

Company Information

Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.

FAQ

1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, cross arm and anchor part.

Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.

2. MOQ: 1 sets for Customized

3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.

5 Warranty : 30 years

6.Surface treatment :hot dip galvanization
