40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting

China 40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting supplier
40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting supplier 40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting supplier 40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting supplier 40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting supplier

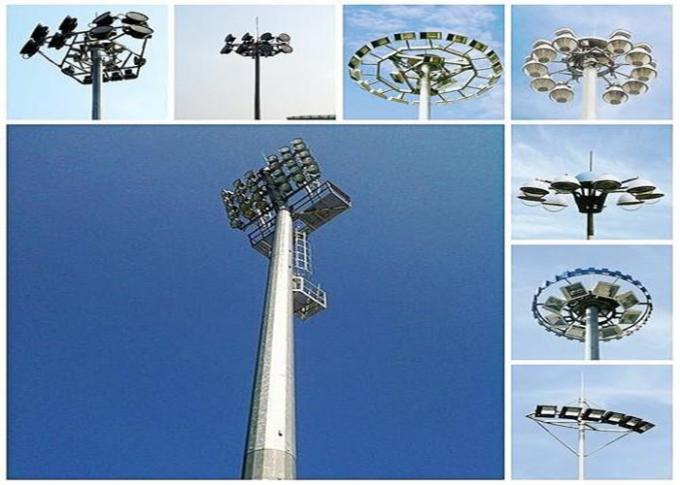

Large Image :  40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO9001
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: Naked Package or naked
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Detailed Product Description
Item Name: 40m High Mast Pole Accessories: 300kg Rasing System
Load Light Weight: 15kg Top Surface: Head Frame Type
Surface Finished: Powder Coating Application: Street Way,highway,airport,Stadium
High Light:

Park Light pole

,

Sports Light Poles

40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting



High mast lighting as a concept in area lighting is being preferred over conventional lighting, especially where large areas are to be illuminated without the need for numerous lighting columns, that under certain circumstances, can be a hazard to movement. This is possible because the high mast lighting system achieves very large space to height ratios.



Quick Product Description-High Mast Lighting Pole



Item 40 MTR 20 MTR
Material Construction Q345(Gr50) Q345(Gr50)
No. of Longitudinal Welds Single/Double Single
Cross section of mast in polygon((No. of Sides) Octagonal,dodecagon,hexadecagon Octagonal,dodecagon,hexadecagon
Thickness 4mm,6mm,8mm,10mm or customized design 4mm,6mm,8mm,10mm or customized design
Individual Section’s Length according to customer desgin 10375mm
Base & Top dia (OAF) according to customer desgin 450/200mm
Thickness of galvanization(Average) 86 Microns 86 Microns
Size of opening door at base 360 x 1400 mm 360 x 1400 mm
Size of base plate diameter 650 mm 650 mm
Size of base plate thickness 32 mm 32 mm
Number of foundation bolts 12 12
Bolt diameter 28 mm 28 mm


ACCESSORIES

IMPORTANT TECHNICAL FEATURES



FIXED TYPE HEAD FRAME :

Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.



WINCHES :

Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.



40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting 0



FINISH :

The complete mast with component is fully hot dip galvanized for longer life.



LANTERN CARRIAGE :

We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.



40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting 1



Advantages

Stainless steel lowering cables
No strain on lowering cables when system is in the home position
Red indicator discs show when the system is unhooked or in the home position
Lightning rod
All steel components are hot dip galvanized and all coloured components are hot dip galvanized and powder coated
All HMFJ60 systems have a 300kg capacity and can typically hold up to twelve 2000W luminaires
All poles and systems are suitable for wind regions A and B
On site instruction on operation and maintenance

40 meters powder coating galvanized High Mast Pole with 300kg rasing system for airport area lighting 2

Application



• Fly Overs

• Road Junction

• Parks

• Parking Areas

• Apron Lighting

• Airports/Dockyards

• Coal Handling

• Power Plants

• Container Terminals

• Petrole Pumps

• Any other Outdoor Application



Company Information



Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.

We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:

lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.

The entire range of equipment is manufactured using superior quality raw material and ensures reliability.

These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
