50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder

China 50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder supplier
50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder supplier 50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder supplier 50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder supplier

Large Image :  50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO9001
Model Number: High Mast Light

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: Naked Package or naked
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Detailed Product Description
Item Name: 50FT 500W LED High Mast Pole Round Shape With External Caged Ladder Section: One To Four Sections
Section Thickness: 4mm,6mm,8mm Or Custom Design Pole Typement: Platform With Protection
Surface Finished: Hot Dip Galvanized Application: Street Way,highway,airport,Stadium
High Light:

high mast lighting pole

,

Sports Light Poles

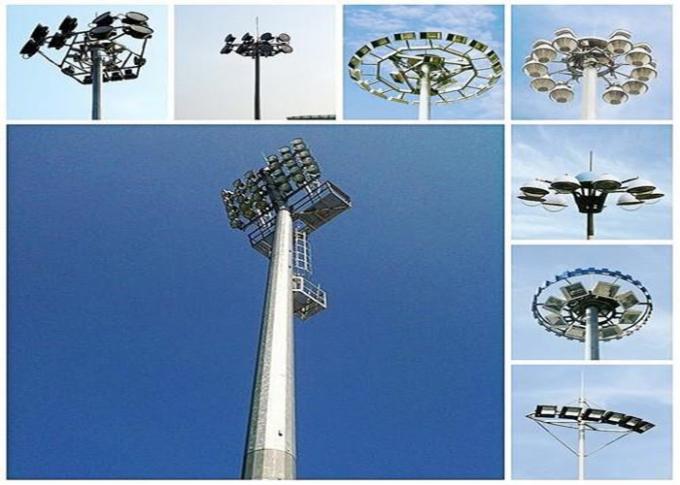

50FT 500W LED High Mast Pole Round Shape with external caged ladder



The High Mast series is specifically designed for projects with specifc lux requirements. Lighting masts are available from 16 metres through to 50 metres high. The high mast can be applied into: High way intersections, Car park, Loading areas, Shopping areas, Square, Sea Ports, Airports and Recreational centers.



Quick Product Description-High Mast Lighting Pole



Item 22 MTR
Material Construction Q345(Gr50)
No. of Longitudinal Welds Single/Double
Cross section of mast in polygon((No. of Sides) Octagonal,dodecagon,hexadecagon
Thickness 4mm,6mm,8mm,10mm or customized design
Individual Section’s Length 11375mm
Base & Top dia (OAF) 450/200mm
Thickness of galvanization(Average) 86 Microns
Size of opening door at base 360 x 1400 mm
Size of base plate diameter 650 mm
Size of base plate thickness 32 mm
Number of foundation bolts 12
Bolt diameter 28 mm

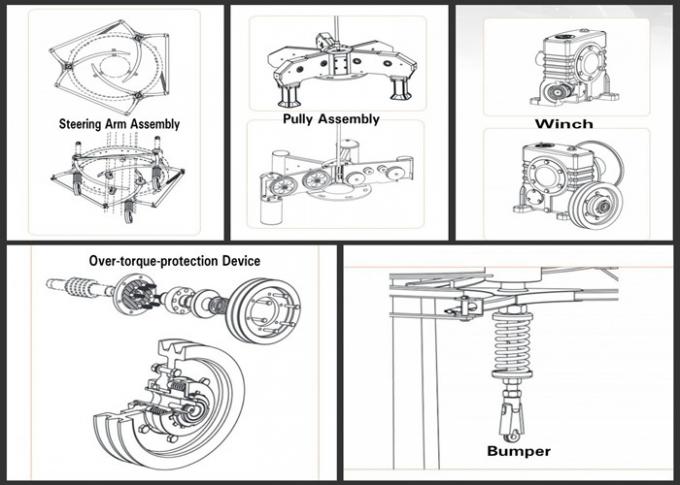

ACCESSORIES




IMPORTANT TECHNICAL FEATURES



FIXED TYPE HEAD FRAME :

Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.



WINCHES :

Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.



FINISH :

The complete mast with component is fully hot dip galvanized for longer life.



LANTERN CARRIAGE :

We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.

50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder 0



Rasing System

50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder 1



Application



Truck and bus terminals

railyards

ship docks

ferry terminals

airports

prisons

industrial and commercial sites

international borders

parking lots



More Products

50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder 2



Company Information



Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.

We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:

lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.

The entire range of equipment is manufactured using superior quality raw material and ensures reliability.

These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
