6m Single Bracket Galvanized Traffic Street Light Pole 3mm Steel Plate Thickness

China 6m Single Bracket Galvanized Traffic Street Light Pole 3mm Steel Plate Thickness supplier

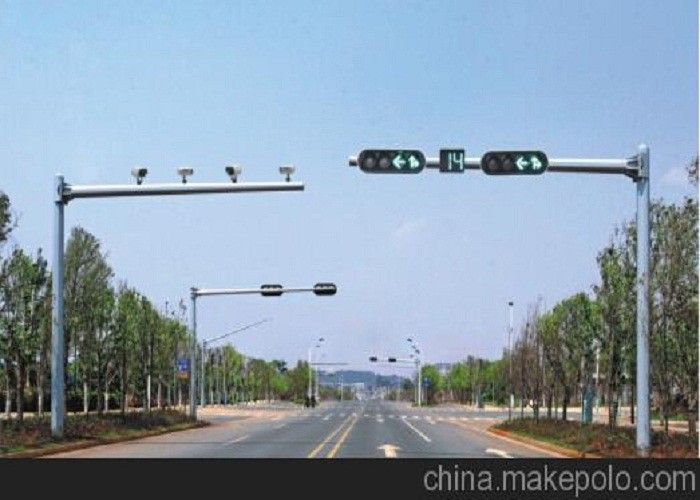

Large Image :  6m Single Bracket Galvanized Traffic Street Light Pole 3mm Steel Plate Thickness

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO9001
Model Number: Traffic Light Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Detailed Product Description
Item Name: Traffic Light Pole Application: Traffic Sign
Arm Type: Single Arm Traffic Light: LED Or Customer Design
Surface Treatment: Galvanization Pole Shape: Round,octagonal
Average Gavanzation Thickness: According To The Pole Thickness
High Light:

driveway light poles

,

highway light pole

6m Single Bracket Galvanized Traffic Street Light Pole 3mm Steel Plate Thickness with 86 galvanization standard





Quick Details for Traffic Light Pole



Item No

 6M Traffic Light Pole

Height

 6M

Thickness

According to the customer's design

Shape

Conical,round,octagonal,dodecagon

Material

Q345B/A572,Q235B/A36,Q460

Wind Design

 35 m/s

Suit for

street way,highway



Description



1. Round conical pole

2. Steel lamp pole, hot dip galvanized for surface powder painted

3. Height : 3M-14M
4. Arm : Single or double

5. easy maintenance

6. Any RAL color is available upon request for coated pole

7. Material : SS400 Any special request is available

8. Applications: Main road,speedway,pavement,block etc

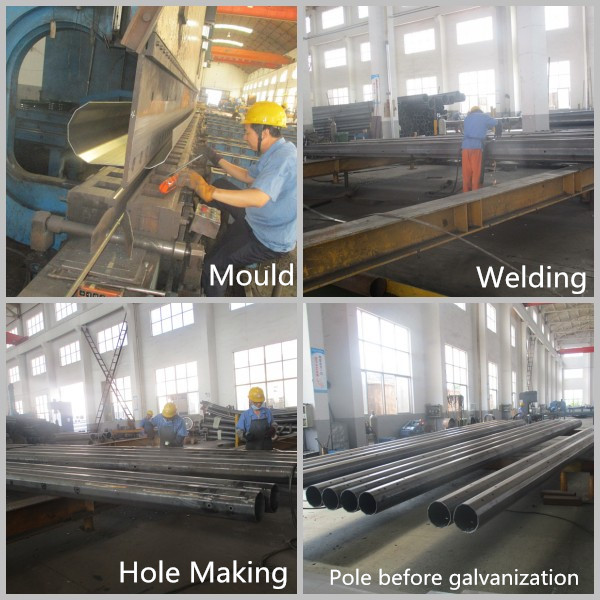

Prodcut Process



6m Single Bracket Galvanized Traffic Street Light Pole 3mm Steel Plate Thickness 0



MATERIAL



Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.

Main Material is Q235,Q345,Gr65 or as specified in the customer specification.



FINISHING



Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.



No welding, cutting or drilling is done after galvanizing.



The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.





SHAPE



1. Height:The street lighting Poles of heights from 4m up to 20m covering almost all of the outdoor street lighting requirements, are usually made out of tapered steel shafts with octagonal or conical shape, with dimensions complying with the design structural analysis, international standards requirements, and as per customer requirements.



2. Pole Sections: Only poles with heights up to 12 meters are made from one shaft segment. Poles up to 20m in height are made from two segments with minimum overlap length of 1.5 times the diameter of bottom of the upper segment.



3. Shafts: Shafts are made from steel sheet folded to the required shape and welded longitudinally by automatic arc welding machine.



4.Base Plate: Base plate is square in shape with slotted holes suitable for anchor bolts. Base plate is welded to the bottom of the shaft by double fillet weld, according to International standards.



5. Brackets: The brackets to carry the light fittings are in shape and dimensions complying with the customer requirements and the specifications of the light fittings. Shaft top is equipped with nuts welded to the shaft  as shown on our drawings.



6. Anchor Bolt: Anchor bolts to fix the base plate to the concrete foundation are supplied with the required nuts and washers as per the structural analysis.



7: Service Door: Door opening size and location is as per the customer requirements and its complying with the dimensions of the cut-out. Door opening is reinforced to maintain shaft strength.



8. Lamp:LED light is available or specified in the customer requirement.

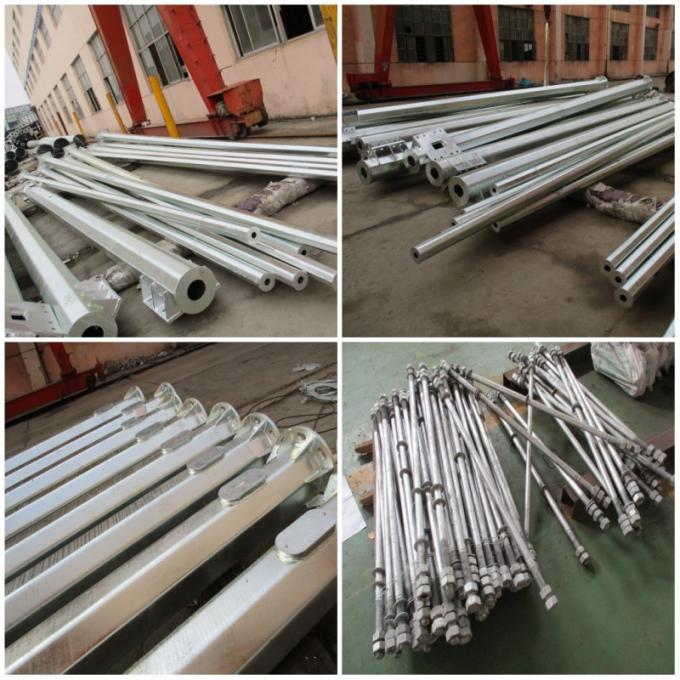

More Pictures:



6m Single Bracket Galvanized Traffic Street Light Pole 3mm Steel Plate Thickness 1





Company:



Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
