|Item Name:||45M High Mast Pole||Accessories:||300kg Rasing System|
|Light Weight:||15kg Each Light||Top Surface:||Head Frame Type|
|Surface Finished:||Powder Coating||Application:||Street Way,highway,airport,Stadium|
high mast lighting pole,
Park Light pole

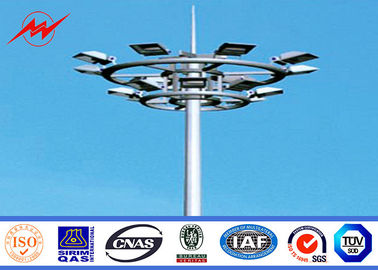

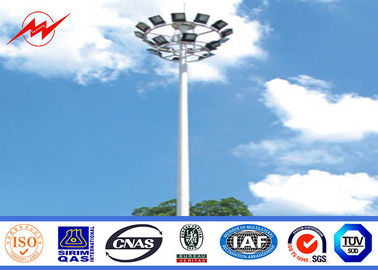

45M Powder Coating Galvanized High Mast Pole with 6 Lights for Seaport Lighting Application
High mast lighting as a concept in area lighting is being preferred over conventional lighting, especially where large areas are to be illuminated without the need for numerous lighting columns, that under certain circumstances, can be a hazard to movement. This is possible because the high mast lighting system achieves very large space to height ratios.
Quick Product Description-High Mast Lighting Pole
|Item||45 MTR||20 MTR|
|No. of Longitudinal Welds||Double||Single|
|Cross section of mast in polygon((No. of Sides)||Octagonal,dodecagon,hexadecagon||Octagonal,dodecagon,hexadecagon|
|Thickness||4mm,6mm,8mm,10mm or customized design||4mm,6mm,8mm,10mm or customized design|
|Individual Section’s Length||according to customer desgin||10375mm|
|Base & Top dia (OAF)||according to customer desgin||450/200mm|
|Thickness of galvanization(Average)||86 Microns||86 Microns|
|Size of opening door at base||360 x 1400 mm||360 x 1400 mm|
|Size of base plate diameter||650 mm||650 mm|
|Size of base plate thickness||32 mm||32 mm|
|Number of foundation bolts||12||12|
|Bolt diameter||28 mm||28 mm|
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
The complete mast with component is fully hot dip galvanized for longer life.

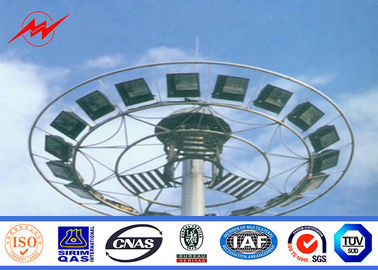

LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Stainless steel lowering cables
No strain on lowering cables when system is in the home position
Red indicator discs show when the system is unhooked or in the home position
All steel components are hot dip galvanized and all coloured components are hot dip galvanized and powder coated
All HMFJ60 systems have a 300kg capacity and can typically hold up to twelve 2000W luminaires
All poles and systems are suitable for wind regions A and B
On site instruction on operation and maintenance
• Fly Overs
• Road Junction
• Parking Areas
• Apron Lighting
• Coal Handling
• Power Plants
• Container Terminals
• Petrole Pumps
• Any other Outdoor Application
