Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting

China Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting supplier
Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting supplier Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting supplier Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting supplier Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting supplier Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting supplier

Large Image :  Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting

Product Details:

Place of Origin: China,Jiangsu
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Tolerance: +/-2% Product Name: Galvanized Octagonal Pole High Mast Pole Single Double Or Triple Arm For Stadium
Pole Finished: Galvanized High Mast Pole Payment Terms:: T/T
Supply Ability:: 2000pcs Per Week Safty Facor: 1.8
High Light:

high mast lighting pole

,

Sports Light Poles

45M Galvanized Octagonal High Mast Light Pole With Platform Bracket Arm For Stadium Lighting





High mast pole Gr65 steel materialsmooth welding noedgeHDG ,powder coated



1)Steel materials:Gr65 or ss400

2)8-15 meters pole,vary from person to person
3)Lithium arc welding,tighten
4)Hot-dip galvaniation and powder coating,anti-corrosion,aging

resistant
5)Pole shape:square and round conical,tubular stepped
6)Base plate mounted:base plate is square or round in shape with slotted holes for anchor bolt
7)Single,double or triple arm
8)Fair price and easy maintance
9Strict control and test measures ensure the high quality

These above instructions are for reference only.
Color, size, specifications and packaging mainly depend on customers' demand



Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting 0



Specification:

20-50 meters high mast pole

Type

high mast pole

Shape

conical, hexagonal and octagonal

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Standard

Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

high mast pole suit for

city square,wharf,stadium

Option of high mast pole

Height from 20m to 35m
Flange mounted or planted type

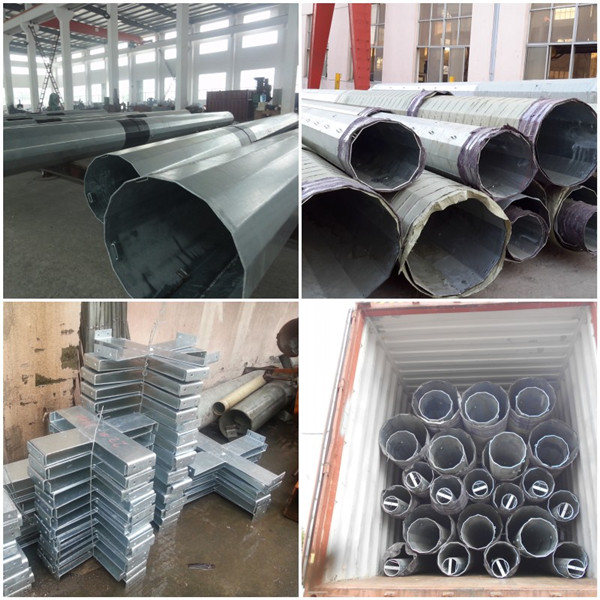

Production Process of high mast pole

Raw material test  Cutting Molding or bending Welidng (longitudinal )Dimension verify Flange welding Hole drilling Calibration DeburrGalvanization or powder coating ,painting RecalibrationThread Packages





Options:

• The High Mast is available in various length, diameters and hole arrangements.

• Multisided or Tapered round variations.

• The High Mast is available in base plate mounted or direct bury installed.

• All High Masts are hot dip galvanized according to EN 1461, and can be powder coated or painted.

• Additional service doors.

• Pre-drilling for removable safety steps is available.



Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting 1

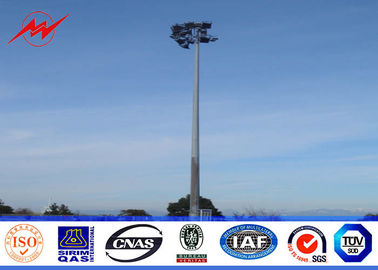

Stadium lighting masts are designed with fixed head frame for mounting a large concentration of sports lighting luminaries. The height of the mast and the number of flood lights are based on the lighting design. Our structural design team has wide experience in designing such masts. In a space of less than 25 years Transrail Lighting has designed, manufactured and supplied stadium masts to 30 premium projects in India and abroad.
Stadium lighting masts are custom designed based on the lighting design and available site constraints.





Galvanized Octagonal 45M High Mast Light Pole With Platform Bracket Arm For Stadium Lighting 2
