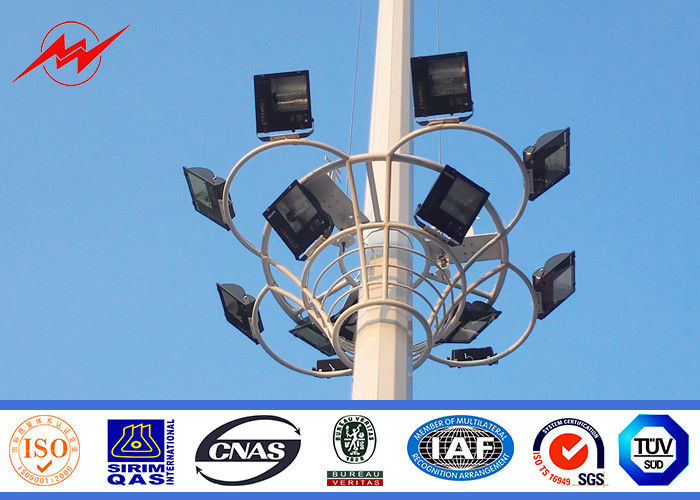

High mast light tower mast galvanized steel tubular pole 50 years Lift time

China High mast light tower mast galvanized steel tubular pole 50 years Lift time supplier
High mast light tower mast galvanized steel tubular pole 50 years Lift time supplier High mast light tower mast galvanized steel tubular pole 50 years Lift time supplier High mast light tower mast galvanized steel tubular pole 50 years Lift time supplier High mast light tower mast galvanized steel tubular pole 50 years Lift time supplier

Large Image :  High mast light tower mast galvanized steel tubular pole 50 years Lift time

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: High Mast Poles Application: Studium Lighting
Wind Speed: 160km/h Galvanization Thickness: Average Not Less Than 86μm
Thickness: 8mm Lift Time: 50 Years
High Light:

high mast lighting pole

,

Sports Light Poles

High mast light tower mast galvanized steel tubular pole Lamp poles





 Specifications:



Place of origin

China

Material

SteelQ235,Q345

Application

Garden, Square, Street, Stadium etc.

Pole’s height

25m-40m or as customer’s requirement



Shape of pole

Tapered Round,

Shafts are made of steel sheet that folded into required shape

and welded by automatic welding machine

Brackets/ Arm

As per customer’s requirement

Wall thickness

2.5mm to 20mm

Welding

Using automatic internal and external double welding makes

the welding beautiful in shape. And confirms with international welding standard. .

Base plate mounted

Base plate is square or round in shape with slotted holes

for anchor bolt and dimension as per customer’s requirement.

Ground mounted

The length buried underground as per customer’s requirement.

Galvanizing

Hot dip galvanization with Chinese standard GB/T 13912-2002

or American standard ASTM A123, IS: 2626-1985.

Powder coating

Pure polyester powder painting, color is optional according to RAL

color standard.



Jointing

Jointing of pole with insert mode, face to face joint mode .

Every lighting pole has a unique code. All sections belonging to one pole

have the same code, so it’s easy to assembly.

Wind Resistance

Against wind pressure of 160Km/h

Earthquake Resistance

Against earthquake of 8 grade





Quality Control

We strictly follow the standard of ISO9001-2008.

Quality is in the first place at every stage of production to ensure

the product compliance to the specification/standards.

Careful inspections are carried out by highly trained inspection

engineers during every procedure from raw material stage to

finished product and delivery.

Certificates

ISO9001:2008 etc.





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

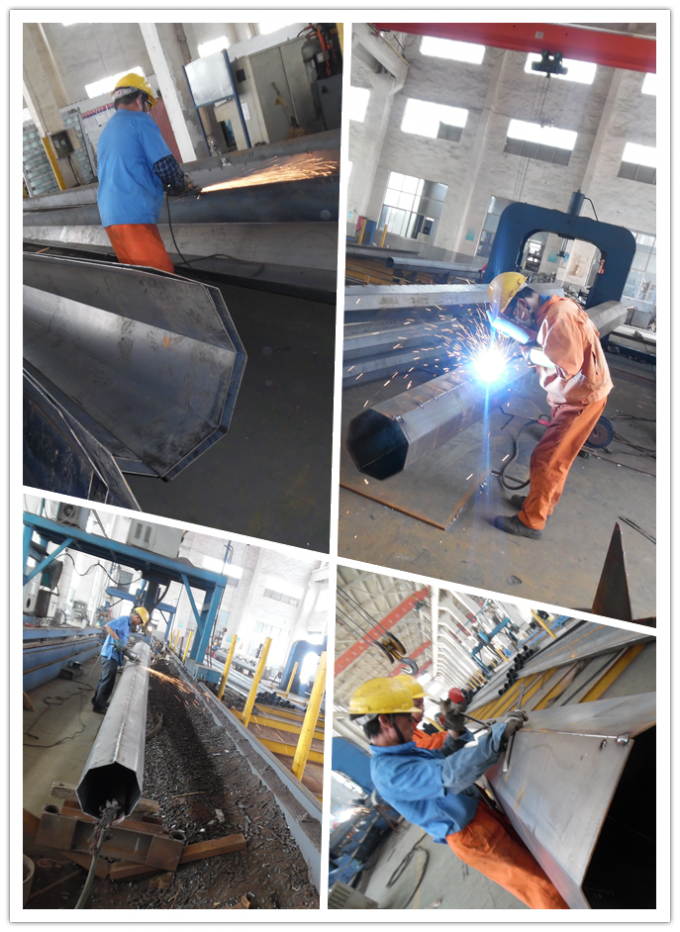

 Welding:

 Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and  external double welding makes the welding beautiful in shape. It confirms with the international welding  standard of CWB and AWS D 1.1

 High mast light tower mast galvanized steel tubular pole 50 years Lift time 0



 Standard:
 Electric box protection level: IP23
 Lamp protection level: IP54

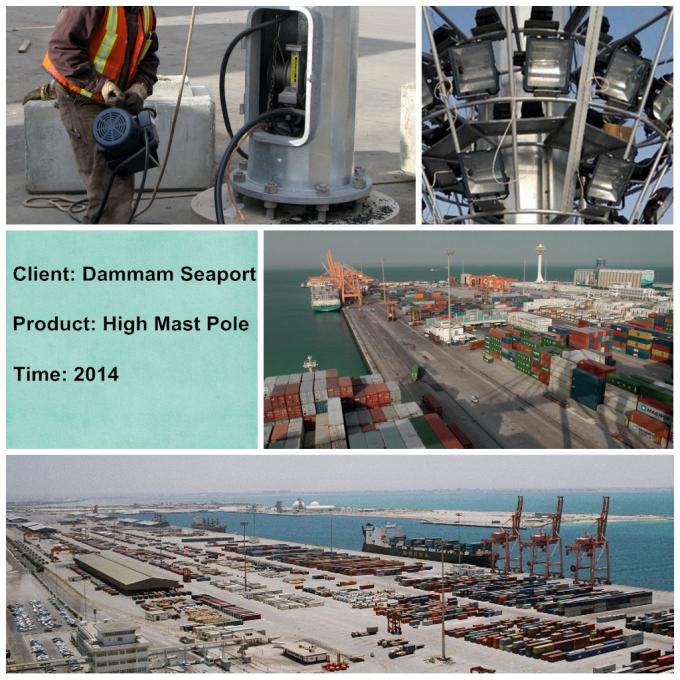

 Installation:
 1. high-pressure sodium lamp with external ballast and Triggers installed in light tray.
 2. when replacing or repairing light and other electrical appliances, you should use special wrench to  open it.
 3. control box installed at the poles or the lower part of the poles

 High mast light tower mast galvanized steel tubular pole 50 years Lift time 1



 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
