Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles

China Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles supplier
Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles supplier Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles supplier Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles supplier Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles supplier

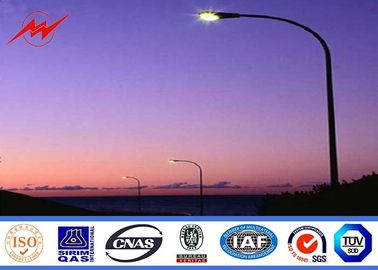

Large Image :  Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles

Product Details:

Place of Origin: China,Jiangsu
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Street Light Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Tolerance: +/-2% Product Name: 8m Hot DIP Galvanized Street Light Pole With Single Arm
Color Variable: Any Color Payment Terms:: T/T ,L/C
Application: Road,highway,street,square Safty Facor: 1.8
Brand Name: MilkyWay
High Light:

hot dip galvanised street light pole

,

single arm galvanized street light pole

,

galvanized street light pole 8m

8m steel poles Hot DIP Galvanized Street Light Pole with Single Arm





Specification:



1. Quality Q345/Q235 steel plate
2. advanced equipent
3. high level technical personnel
4. hot dip galvanization





Drawings:



Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles 0



Type

Street Lamp pole, lamp post . Lamp column

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Standard

Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

Suit for

Highway
Roadway
Residential subdivisions
Commercial development

Option

Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.

Production Process

Raw material test  Cutting Molding or bending Welidng (longitudinal )Dimension verify Flange welding

Hole drilling Calibration DeburrGalvanization or powder coating ,painting Recalibration Thread

Packages





Hot Dip Galvanized Street Light Poles With Single Arm Highway 8m Steel Poles 1
