Philippine NPC Electric Steel Tubular Floodlight Pole With Hot Dip Galvanization

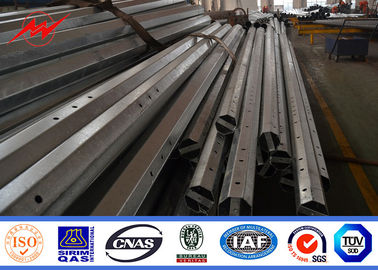

Large Image : Philippine NPC Electric Steel Tubular Floodlight Pole With Hot Dip Galvanization

Product Details:

Place of Origin:	China
Brand Name:	MilkyWay
Model Number:	Steel Tubular Pole

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

Contact Now

Detailed Product Description

Certification:	ISO9001 / BV /	Product Name:	Floodlight Pole
Power:	10 KV ~550 KV	Torlance Of The Dimenstion:	+- 2%
Flange Size:	450mm	Wall Thickness:	3mm
High Light:	floodlight pole , commercial light poles

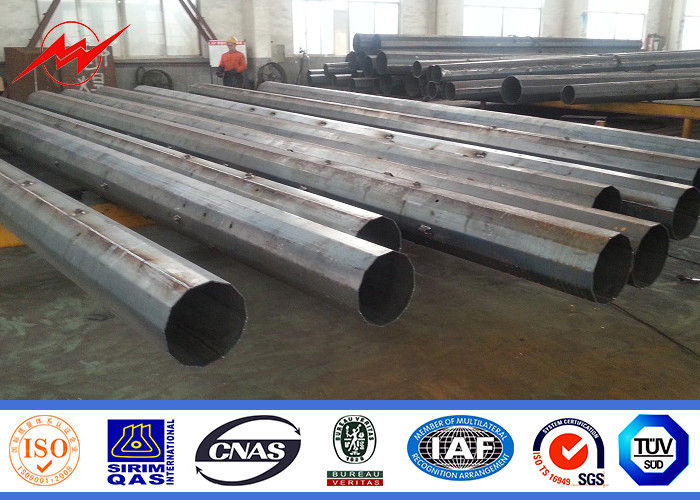

Philippine NPC Electric Steel Tubular Pole with Hot Dip Galvanization

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

Steel Material Grade
China GB	America ASTM ASME	Japan JIS	Europen EN	Gemany DIN	England BS	International ISO
16Mn 14MnNd Q345(A.B.C.D.E)	A572MGr.50 A633MGr.C A633MGr.D	SM490A SM490B SM490C	S355JR S355JOS 355J2G3 S355J2G 4S355K2 G3 S355K2G 4S355N S355NL	St52-3	50A 50B 50C 50D 50DD	E355DD E355E Fe510B Fe510D
WH60/Q460 ( C.D.E)	A572MGr.65	SM570	S460N S460NL	StE460	55C 55E	E460C E460D
Q235 ( A.B.C.D) Q275 20 25 30 35 40 45 50 55 50Mn	A283MGr.C A283MGr.D 1020 1025 1030 1035 1040 1045 1050 1055 1053	SS400 SM400( A B) SS490 S20CS22C S25C S28C S30C S33C S35C S38C S40C S43C S45C S48C S50C S53C S55C S58C SWRH52B	S235JR S235JO S235J2G 3 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50	St37-2 St37-3 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50	40A 40B 40C 40D 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50	Fe360 ( A.B.C.D) Fe430A C25E4 C30E4 C35E4 C40E4 C45E4 C50E4 C55E4 SL, SM

Philippine NPC Electric Steel Tubular Floodlight Pole With Hot Dip Galvanization 0

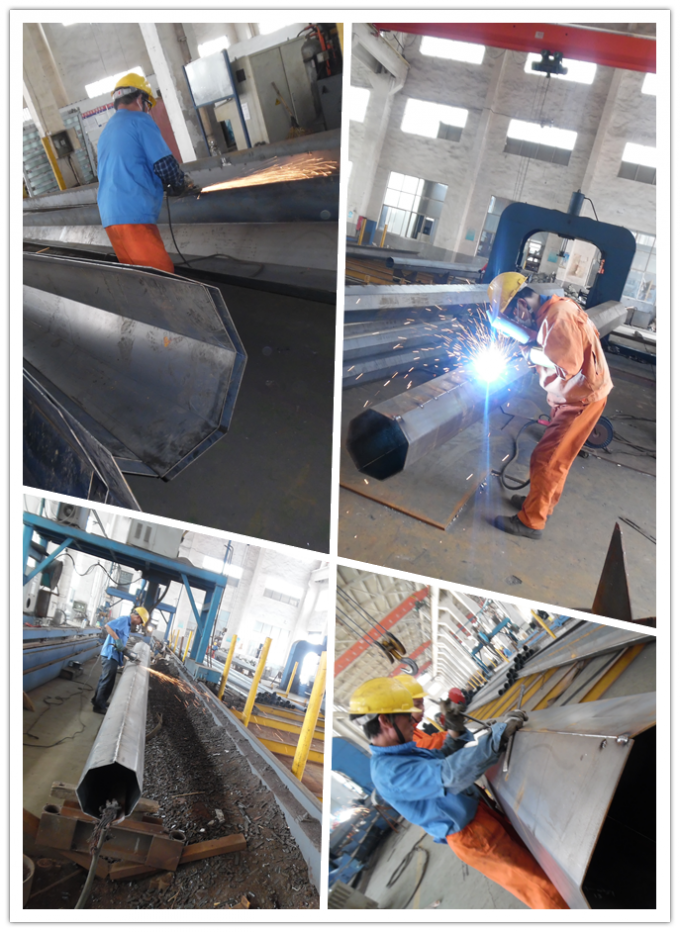

Welding
We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Philippine NPC Electric Steel Tubular Floodlight Pole With Hot Dip Galvanization 1

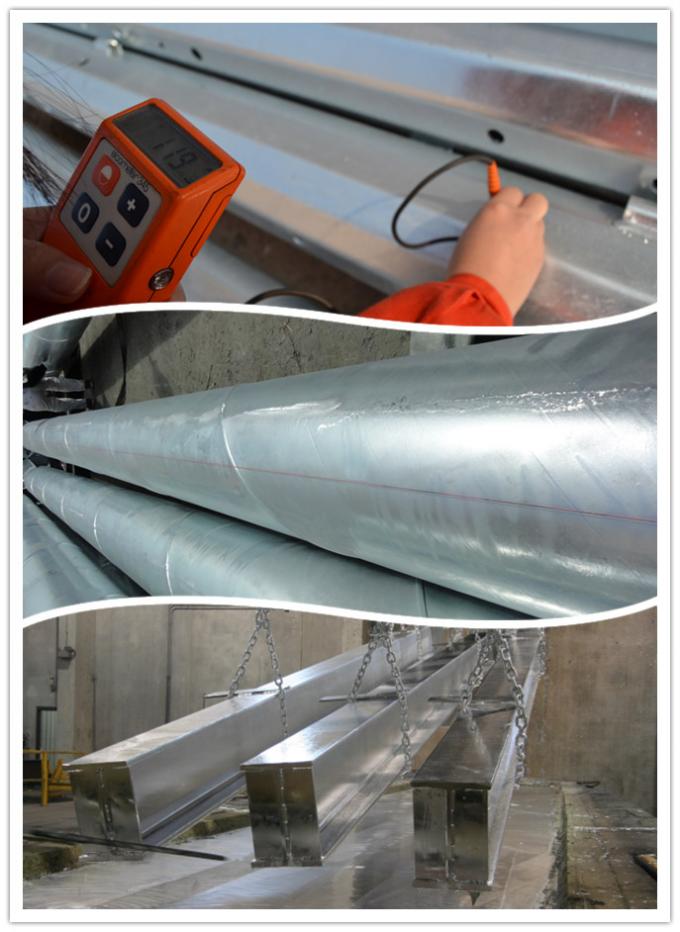

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

Philippine NPC Electric Steel Tubular Floodlight Pole With Hot Dip Galvanization 2

Specification:

Philippines NPC Specification
ITEM	STEEL POLE
	TYPE	LENGTH	TIP DIAMETER	BUTT DIAMETER	THICKNESS
	TYPE	(FT)	(MM)	(MM)	(MM)
1	B	50	200	370	6
2	E	50	200	585	6
3	HT	50	200	520	6
4	B	55	200	395	6
5	E	55	200	625	6
6	HT	55	200	550	6
7	B	60	200	415	6
8	C	60	250	730	6
9	D	60	300	765	7
10	E	60	200	660	6
11	HS	60	200	400	6
12	HT	60	200	580	6
13	B	65	200	435	6
14	C	65	250	770	6
15	D	65	300	755	8
16	E	65	200	700	6
17	HT	65	200	615	6
18	B	70	200	455	6
19	C	70	250	805	6
20	D	70	300	790	8
21	E	70	200	740	6
22	HT	70	200	645	6
23	3T	70	250	640	6
24	3D	70	300	765	6
25	spare type D	70	300	790	8

Quality Control

We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.
