10m 12m 14m 16m Steel Tubular Pole Galvanized Astm A36 Utility Power Poles

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

10m 12m 14m 16m Steel Tubular Pole Galvanized Astm A36 Utility Power Poles

China 10m 12m 14m 16m Steel Tubular Pole Galvanized Astm A36 Utility Power Poles supplier
10m 12m 14m 16m Steel Tubular Pole Galvanized Astm A36 Utility Power Poles supplier 10m 12m 14m 16m Steel Tubular Pole Galvanized Astm A36 Utility Power Poles supplier 10m 12m 14m 16m Steel Tubular Pole Galvanized Astm A36 Utility Power Poles supplier 10m 12m 14m 16m Steel Tubular Pole Galvanized Astm A36 Utility Power Poles supplier

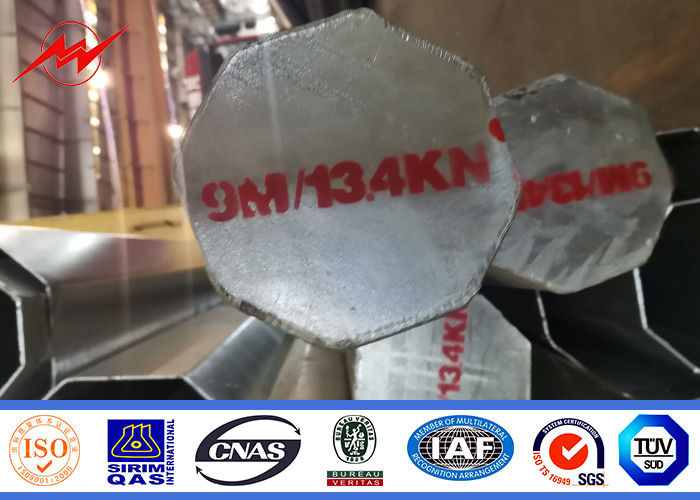

Large Image :  10m 12m 14m 16m Steel Tubular Pole Galvanized Astm A36 Utility Power Poles

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: milky way
Certification: ISO9001:2015
Model Number: 69KV

Payment & Shipping Terms:

Minimum Order Quantity: ONE CONTAINER
Price: USD 130-180POLE
Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: ALWAYS 20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000POLES/MOUTH
Detailed Product Description
MATERIAL: S355JR APPLICATION: ELECTRICITY DISTRIBUTION
THICKNESS: 2.5-10MM SHAPE: POLYGON
GALVANIZATION: ASTM A123,average Coationg Not Less Than 85um WELDING: AWS D1.1,penetration 100%
LIFETIME: 50 YEARS WIND SPEED: 160KM/H
ULTIMATE TENSILE STRENGTH: 490-620MPA
High Light:

14m steel tubular pole

,

16m steel tubular pole

,

astm a36 utility power poles

Pole’s height All available
Type Straight Pole ,Tensile Pole ,Turn Pole,etc
Shape of pole Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
Crossarm Single or double crossarm, dimension as per customers’ requirement
Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65

Wall thickness ≥2.5mm
Once forming 13m without joint



Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.

Joint Joint with insert mode, flange mode.
Base plate mounted Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanizing Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.
Voltage 10KV~550KV
Certificates ISO9001-2008 , AAA credit rating, etc
Protection Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

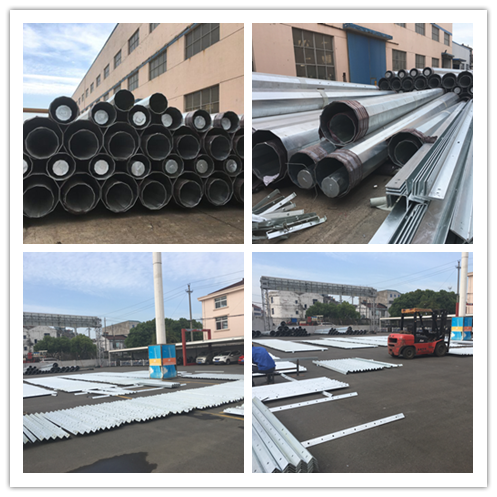

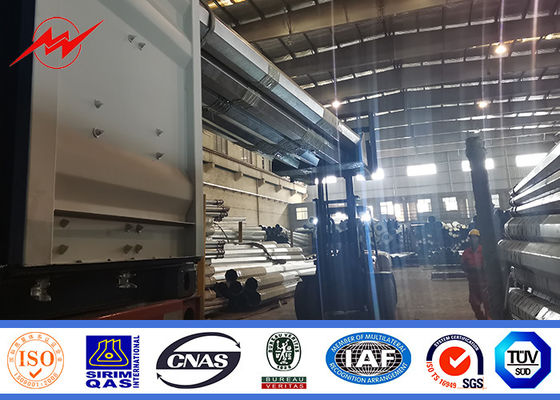

Packing & shipping





We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.



10mm Galvanized Steel ASTM A36 Utility Power Poles 0



Our Servises:





1.Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM&UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.



7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
