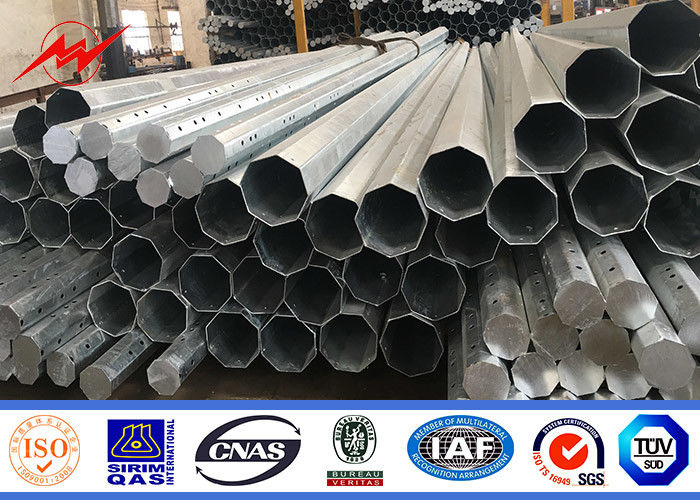

11.8m 1600 Dan Metal Power Pole For Transmission Line Project

Large Image : 11.8m 1600 Dan Metal Power Pole For Transmission Line Project

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	milky way
Certification:	ISO9001:2015
Model Number:	69KV

Payment & Shipping Terms:

Minimum Order Quantity:	ONE CONTAINER
Price:	USD 130-180POLE
Packaging Details:	The normal package is container(Size: LWH). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time:	ALWAYS 20DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000POLES/MOUTH

Contact Now

Detailed Product Description

MATERIAL:	S355JR	APPLICATION:	ELECTRICITY DISTRIBUTION
THICKNESS:	2.5-10MM	SHAPE:	POLYGON
GALVANIZATION:	ASTM A123,average Coationg Not Less Than 85um	WELDING:	AWS D1.1,penetration 100%
LIFETIME:	50 YEARS	WIND SPEED:	160KM/H
ULTIMATE TENSILE STRENGTH:	490-620MPA
High Light:	11.8m metal power pole , 1600 dan metal power pole , transmission line project metal power pole

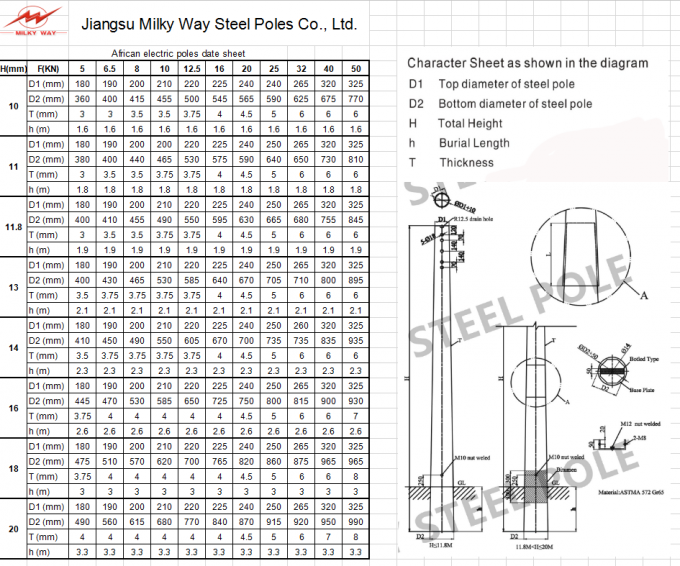

Specifications

Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 , SS400, SS490, to ST52-
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Joint of Poles	Insert mode,innerflange mode,face to face joint mode .
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1

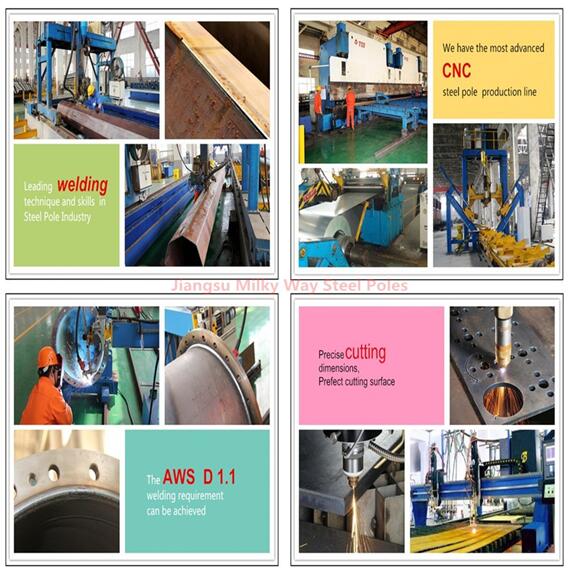

Production Process	Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal ) →Dimension verify →Flange welding →Hole drilling → Calibration → Deburr →Galvanization or powder coating ,painting →Recalibration →Thread →Packages

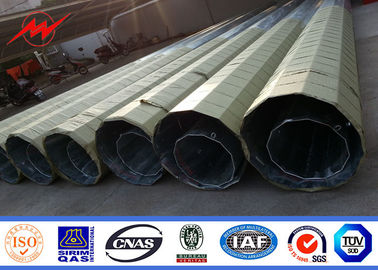

Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
