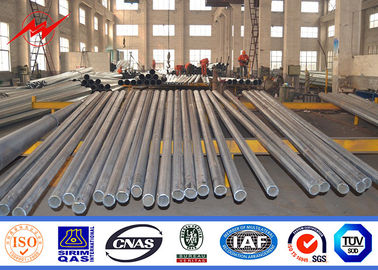

16m Metal Galvanized Transmission Steel Tubular Pole

Large Image : 16m Metal Galvanized Transmission Steel Tubular Pole

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	milky way
Certification:	ISO9001:2015
Model Number:	69KV

Payment & Shipping Terms:

Minimum Order Quantity:	ONE CONTAINER
Price:	USD 130-180POLE

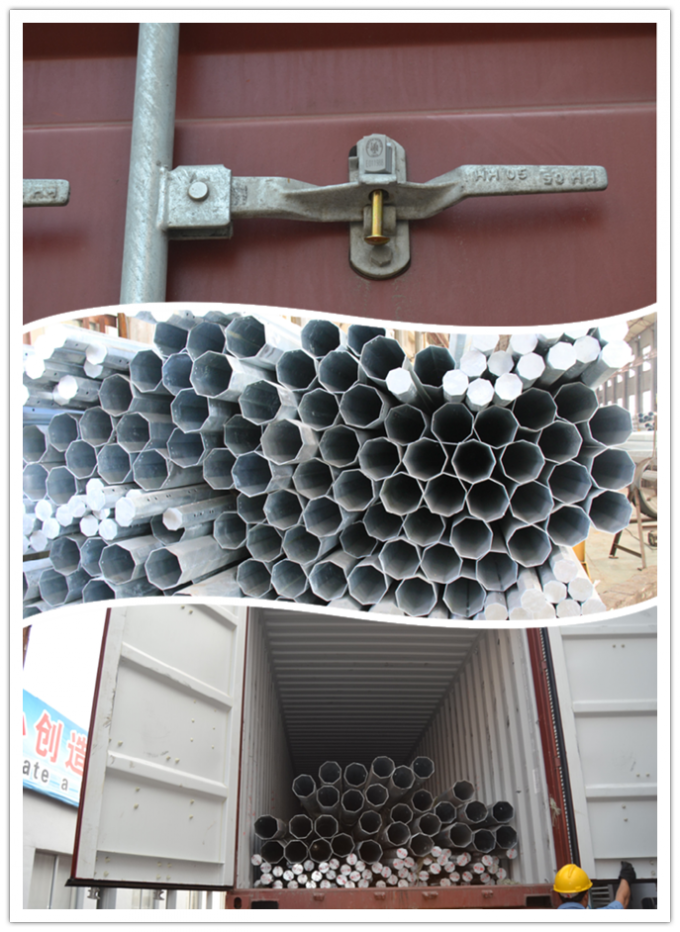

Packaging Details:	The normal package is container(Size: LWH). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time:	ALWAYS 20DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000POLES/MOUTH

Contact Now

Detailed Product Description

MATERIAL:	Yield Strength Not Less Than 345mpa	APPLICATION:	ELECTRICITY DISTRIBUTION
THICKNESS:	2.5-10MM	SHAPE:	POLYGON
GALVANIZATION:	ASTM A123,average Coationg Not Less Than 85um	WELDING:	AWS D1.1,penetration 100%
LIFETIME:	50 YEARS	WIND SPEED:	160KM/H
ULTIMATE TENSILE STRENGTH:	490-620MPA
High Light:	transmission steel tubular pole , Galvanized steel tubular pole , 16m steel tubular pole

Material:	Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50
Yield strength of Material:	Minimum yield strength>=235n/mm2 for Q235, S235 and SS400 Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50
Pole’s height:	3m –15m
Length of one part	Within 16m once forming without slip joint
Wall thickness:	2.3mm-30mm
Pole's Shape Can be made:	Round, Polygonal, Taper Octagonal, Taper round, Round conical, Taper Square, Square.
Arm type can be made:	Single arm, Double arm, Tri-arm, Four-arm
Arm Diameter:	Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any diameter’s lamps.
Power:	250W to 400W
Welding	Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB and AWS D 1.1
Galvanization:	Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985.
Manufactury Capacity Per Day:	250
Wall thickness Tolerance:	+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm
Painting color:	(RAL)Color card or Refer to client’s requirement
Surface treatment 1:	Black pole, Rough pole
Surface treatment 2:	Hot dip Galvanizing antirust.
Surface treatment 3:	Hot dip galvanizing with powder coating
Temperature range	-35 °C~+45 °C
Wind Speed:	Aganist wind pressure of 120Km/h to 180Km/h, it according to client’s design.
Base plate mounted	Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted:	The length buried underground as per customer’s requirement.
Quality Control	According to ISO9001-2008 requirements.
Certificates	ISO9001-2008, Audited Supplier, The AAA grade certificate of goodwill
Other	Less land occupation & easy maintenance.

Metal Galvanized Electrical Power Pole For Transmission And Distribution 0

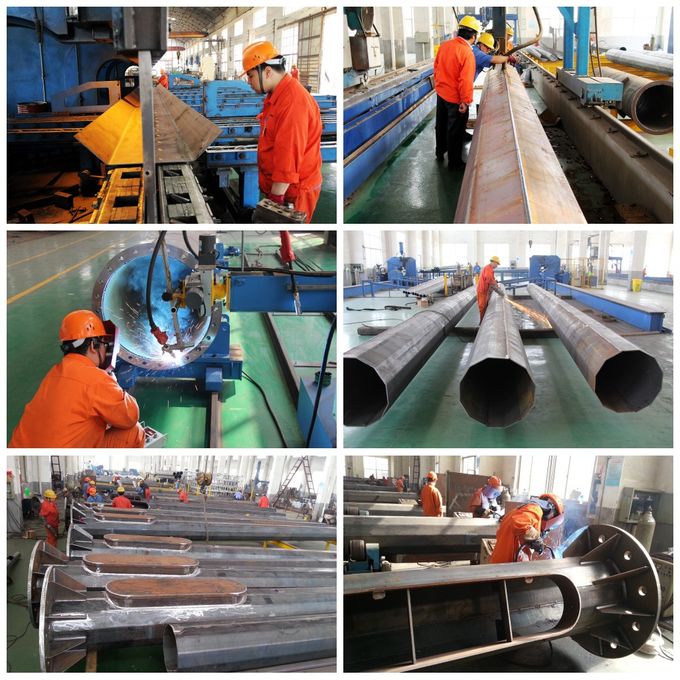

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Metal Galvanized Electrical Power Pole For Transmission And Distribution 1

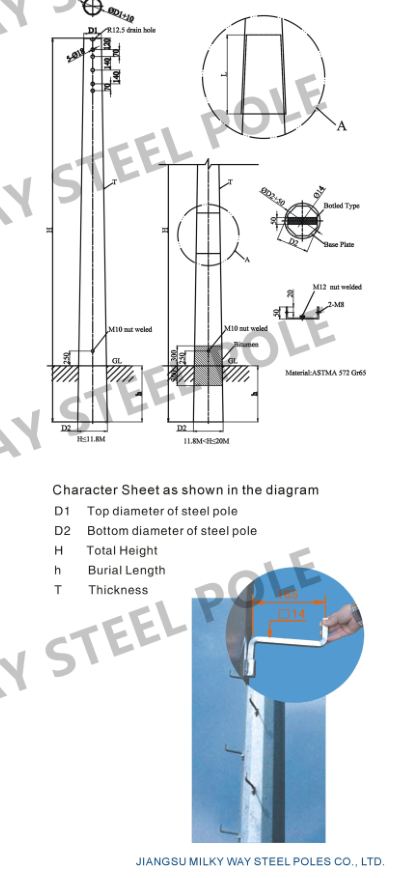

The information to inquiry or purchase
- Steel pole height
- Dimension of the flange
- Position and dimension of the service door
- Cross arm type and length,the position to install in the steel pole
- The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
- Wind speed
- Destination port
- Other.

Metal Galvanized Electrical Power Pole For Transmission And Distribution 2
