Product Details:
Payment & Shipping Terms:
|
| MATERIAL: | S355JR | APPLICATION: | ELECTRICITY DISTRIBUTION |
|---|---|---|---|
| THICKNESS: | 2.5-10MM | SHAPE: | POLYGON |
| GALVANIZATION: | ASTM A123,average Coationg Not Less Than 85um | WELDING: | AWS D1.1,penetration 100% |
| LIFETIME: | 50 YEARS | WIND SPEED: | 160KM/H |
| ULTIMATE TENSILE STRENGTH: | 490-620MPA | ||
| High Light: | 20 meter high mast pole,25m high mast pole,30m high mast pole |
||
Specification
| Material: | Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50 |
| Pole’s height | 3m –15m |
| length | Within 16m once forming without slip joint |
| Wall thickness | 2.3mm-30mm |
| Pole's Shape: | Round, Polygonal, Octagonal, Taper round, Round conical, Square |
| Arm type: | Single arm, Double arm, Tri-arm, Four-arm |
| Application: | Outdoor illumination, Road illumination, Street illumination |

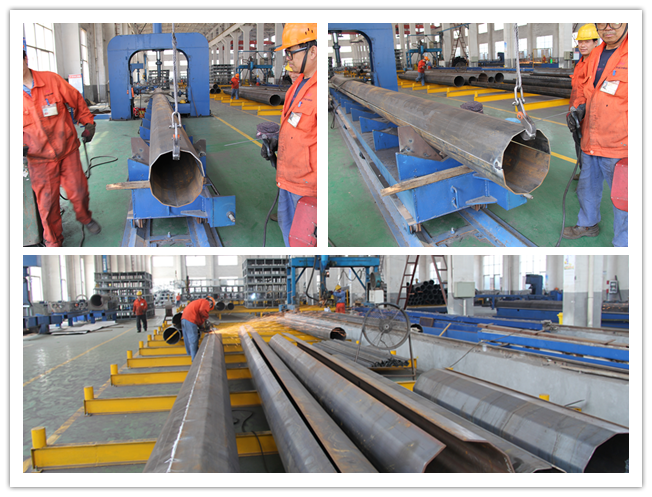

| welding | It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB. |
| Galvanizing | Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
| Painting color: | Refer to client’s requirement and then according to (RAL)Color card |
| Finishing 1: | Black pole, Rough pole |
| Finishing 2: | Hot dip Galvanizing antirust. |
| Finishing 3: | HDG. with powder coating |
| Temperature range | -35 °C~+45 °C |
| Max wind velocity | Aganist wind pressure of 160Km/h |

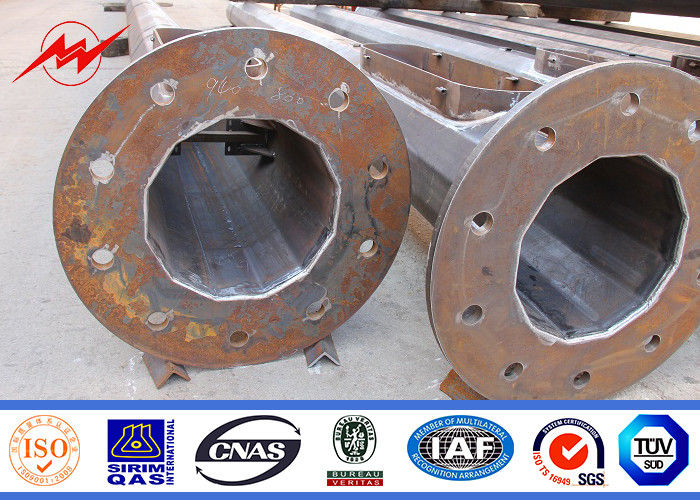

| Base plate mounted | Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted | The length buried underground as per customer’s requirement. |
| Quality Control | We are well equipped with superior production equipments, solid technical strength, excellent managing mode and quality control system, perfect after service. We have passed the ISO9001:2008 Quality Systems Authentication. |
| Certificates | ISO9001-2008, Audited Supplier, The AAA grade certificate of goodwill |
| Other | Less land occupation & easy maintenance. |

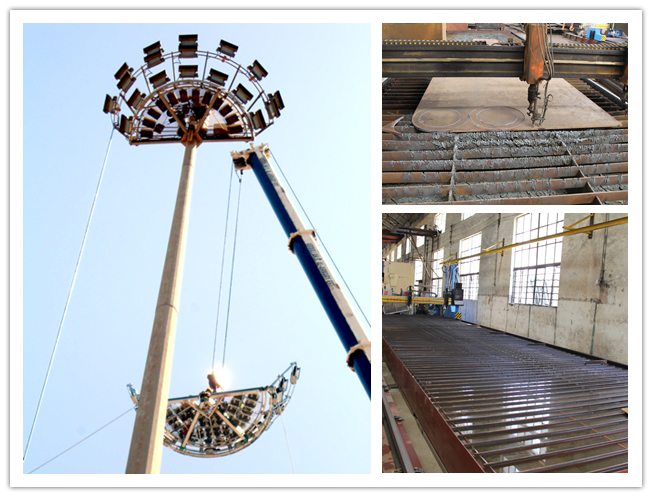

Feature:
Height:18-35m
Characteristics:Large areas of lighting effects,uniform illumination,
easy to control and maintenance,electric lift,easy to operate,
Control:can control by manual,time,bright and microcomputer
Light source:400W-1000W sodium or metal halide lampUsing Area :city
Appication:plaza,stations,harbors,highways,stadiums,overpass
IP rating:IP 65
Others:
1. We are focused on warranted quality for this product for the security of public illumination
all the requirements are according to the international standards of outdoor high mast lighting
2. From purchasing of materials to production to delivery ,every step is serious
3. For the High Mast Pole Lights ,we suggest that the design and production are according to
your special requirements ,the individual environment conditions to reach the best results.
4. Do don't worry, What we need to do is to get the better products ,lowest cost and optimun
solutions with the sincerely cooperation and the same targets.
