2.5MM 30m 500kv Monopole Antenna Tower For Distribution Line​

China 2.5MM 30m 500kv Monopole Antenna Tower For Distribution Line​ supplier
2.5MM 30m 500kv Monopole Antenna Tower For Distribution Line​ supplier 2.5MM 30m 500kv Monopole Antenna Tower For Distribution Line​ supplier 2.5MM 30m 500kv Monopole Antenna Tower For Distribution Line​ supplier 2.5MM 30m 500kv Monopole Antenna Tower For Distribution Line​ supplier

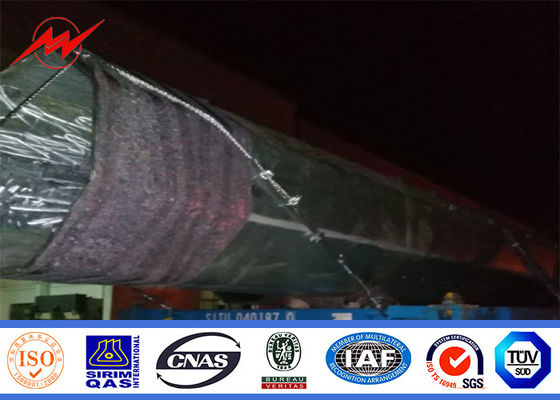

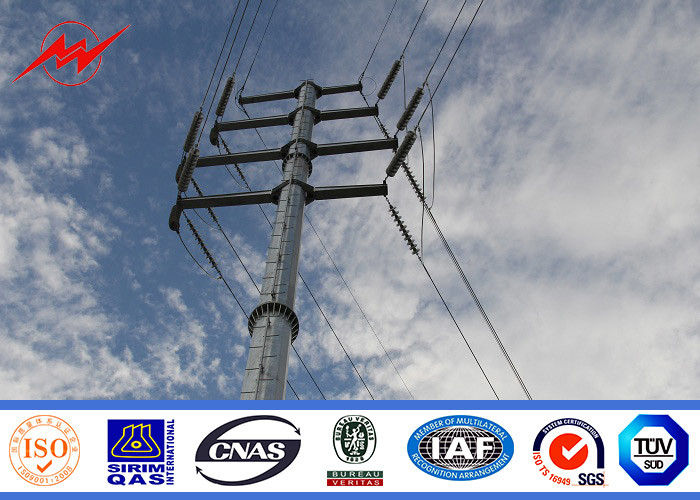

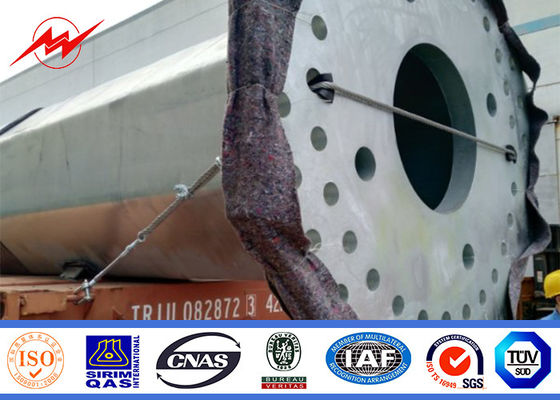

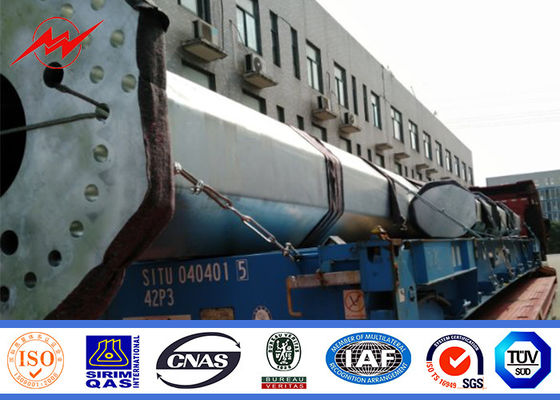

Large Image :  2.5MM 30m 500kv Monopole Antenna Tower For Distribution Line​

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: milky way
Certification: ISO9001:2015
Model Number: 69KV

Payment & Shipping Terms:

Minimum Order Quantity: ONE CONTAINER
Price: USD 130-180POLE
Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: ALWAYS 20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000POLES/MOUTH
Detailed Product Description
MATERIAL: Yield Strength Not Less Than 345mpa APPLICATION: ELECTRICITY DISTRIBUTION
THICKNESS: 2.5-10MM SHAPE: POLYGON
GALVANIZATION: ASTM A123,average Coationg Not Less Than 85um WELDING: AWS D1.1,penetration 100%
LIFETIME: 50 YEARS WIND SPEED: 160KM/H
ULTIMATE TENSILE STRENGTH: 490-620MPA
High Light:

500kv monopole antenna tower

,

30M monopole antenna tower

,

tower monopole 30 meter

30M 500kv Power Electric Transmission Mono Pole Tower Steel Monopole Antenna Tower For Distribution Line​



Specification



1. Electric Power tower voltage grade:35KV/66KV/110KV/220KV/330KV/500KV/750KV/800KV/1000KV
2. Electric Power tower shape category:
(1) tangent tower-Z-use on the straight line parts of the line, for Hanging vertical insulator string.
(2) angle tower-J-Used to the corner of the line
(3) Terminal tower-D-setting up in the Line terminal before to the Terminal tower
(4) transposition tower-H:phase inversion in the line.
3. Material :Q235B/A36
4. Available Height: 5-100M
5. Available Height: 5-100M
6. Surface Coating: Hot Dip Galvanization or Painting
7. Wind Pressure: 5-190 KM/H
8. Antenna Support Quantity : 3-18 PCS





Options:

• The Power Distribution Pole is available in various length, diameters and hole arrangements.

• Multisided or Tapered round variations.

• The Power Distribution Pole covers Voltage between 10-220KV.

• The Power Distribution Pole includes: suspension pole, stain pole and angle pole in different forms.

• Standard Corrosion Protection: hot dip galvanising (above and in-ground)

• Additional in-ground protection is available for special circumstances (soil condition). For example: Epoxy Coating.

• Pre-drilling for removable safety steps is available.

• Cross arms available.

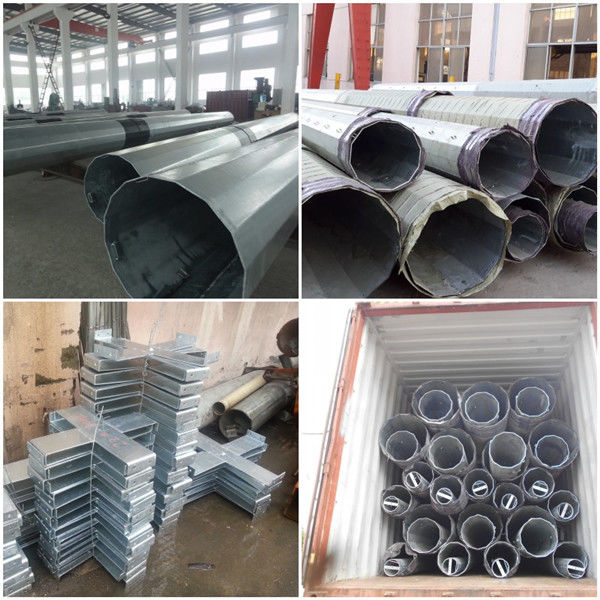

27M 500kv Power Electric Transmission Mono Pole Tower Steel Monopole Antenna Tower For Distribution Line 0





Product information



Steel tower type Tubular steel pole
Voltage 220kV and below
Material Q235,Q345,Q420
Welding CO2 protection welding or submerged arc auto methods
Shape Generally round/polygonal face, and can be designed as the customers require.
Surface laye Zink layer with hot dip galvanized
Lifetime More than 50 years
Production capacity: 30000MT per year

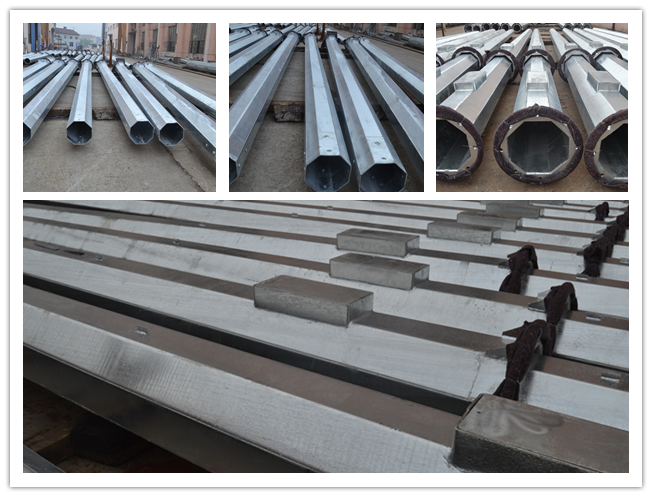

27M 500kv Power Electric Transmission Mono Pole Tower Steel Monopole Antenna Tower For Distribution Line 1



Advantages and Our Services



1)Higher quality lower cost to win the competitive price.

2)Less land occupation for Q235 galvanized steel electric pole

3)Warranty of quality: More than 15 years.
4)3 production lines to ensure fast delivery date.

5)OEM, ODM service.

6)Skilled manufacturer, quality control and technical team.





10 Reasons That Steel Poles Make Sense According to research, here are the primary reasons wooden and concrete utilities are switching to Steel Utility Pole:



• Easy to Handle

• Light Weight

• Long Life

• Cost Effective

• Low Maintenance

• Sustainable

• Durable

• Safe

• Aesthetics

• Engineered for Strength

27M 500kv Power Electric Transmission Mono Pole Tower Steel Monopole Antenna Tower For Distribution Line 2
