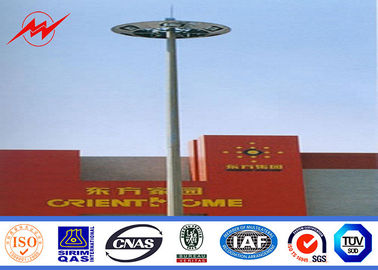

30m Parking Lot Lighting Polygon Solar Power Light Pole With Round Lamp Panel

Large Image : 30m Parking Lot Lighting Polygon Solar Power Light Pole With Round Lamp Panel

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	milky way
Certification:	ISO9001:2015
Model Number:	69KV

Payment & Shipping Terms:

Minimum Order Quantity:	ONE CONTAINER
Price:	USD 130-180POLE
Packaging Details:	The normal package is container(Size: LWH). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time:	ALWAYS 20DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000POLES/MOUTH

Contact Now

Detailed Product Description

MATERIAL:	S355JR	APPLICATION:	ELECTRICITY DISTRIBUTION
THICKNESS:	2.5-10MM	SHAPE:	POLYGON
GALVANIZATION:	ASTM A123,average Coationg Not Less Than 85um	WELDING:	AWS D1.1,penetration 100%
LIFETIME:	50 YEARS	WIND SPEED:	160KM/H
ULTIMATE TENSILE STRENGTH:	490-620MPA
High Light:	30m solar power light pole , 30m solar panel light pole , polygon solar power light pole

Specifications:

Mast’s height

15m to 35m

Shape of mast

Polygon

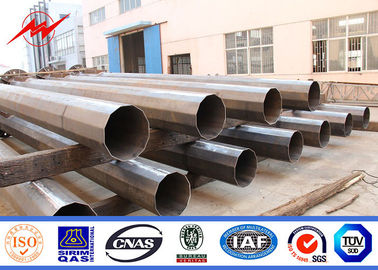

Shafts are made of steel sheet that folded into required shape and

welded longitudinally by automaticarc welding machine

Head frame

The style according to client's requests and dimension as per customers

requirement

Length

Within 14m once forming without slip joint

Wall thickness

4mm to 20mm

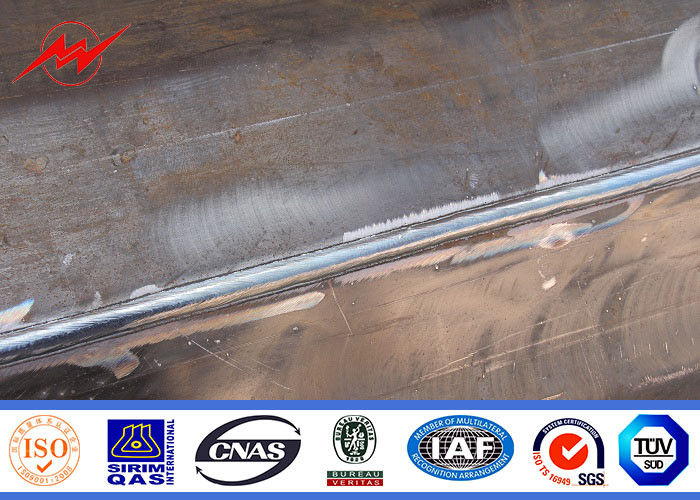

Welding

It has past flaw testing.Internal and external double welding makes the

welding beautiful in shape.

And confirms with international welding standard of CWB

Jointing

Slip Joint

Jointing of pole with insert mode, innerflange mode, face to face joint mode.

Base plate mounted

Base plate is square or round in shape with slotted holes for anchor bolt

and dimension as per customers requirement.

Ground mounted

The length buried underground as per customers requirement.

Galvanizing

Hot dip galvanization with thickness of 80-100µm average in accordance

with Chinese standardGB/T 13912-2002 or American standard ASTM A123,

IS: 2626-1985.

Powder coating

Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance

Aganist wind pressure of 160Km/h

Manufacturing

According to GB/T 1591-1994.

Quality Control

We control the quality according to the flow of ISO9001-2008. Quality is

employed at every stage of production to ensure

the product compliance to the specifications/standards. Careful inspections

are carried out by highly trained inspection engineers as per the defined

procedures from raw material stage to finished product and delivery.

Prototype assembly of towers is carried out in

the plant.

Certificates

ISO9001-2008 Audited Supplier

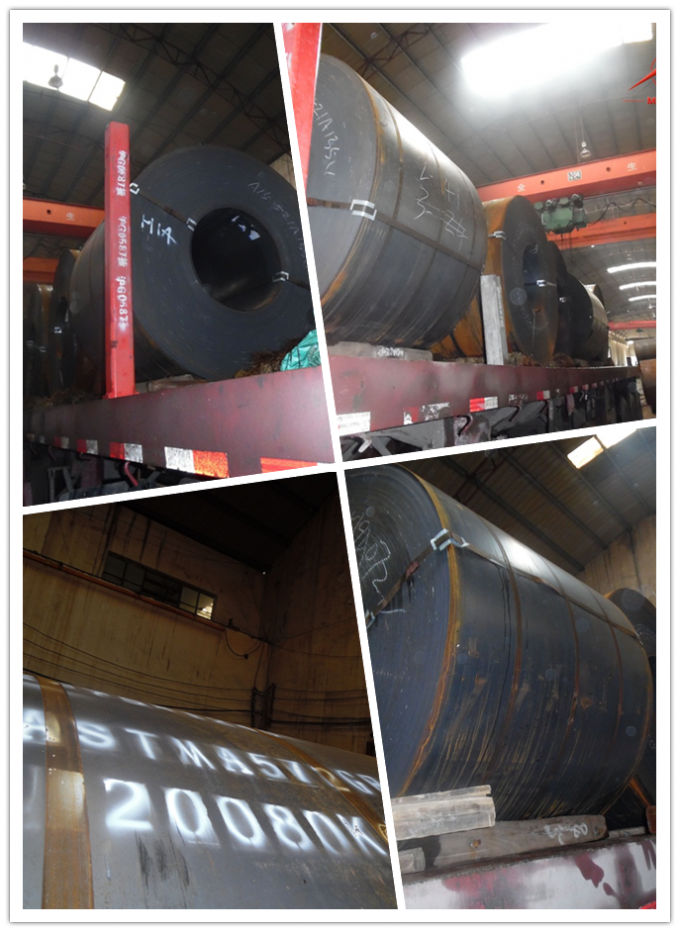

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

30M 3 Sections Parking Lot Lighting Solar Power Light Pole With Round Lamp Panel 0

Feature:

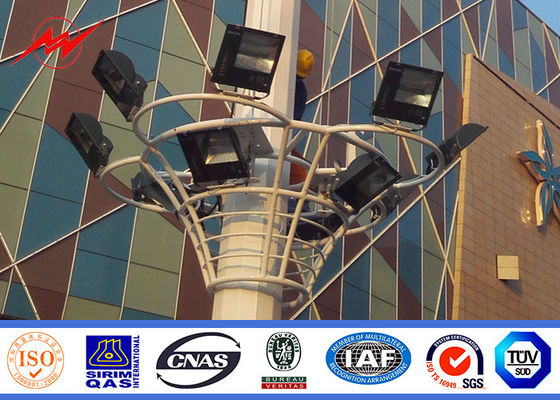

Special designed for stadium to provide high-power, large- area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for i nstallation and maintenance purposes

Light source :400w-1000w sodium light

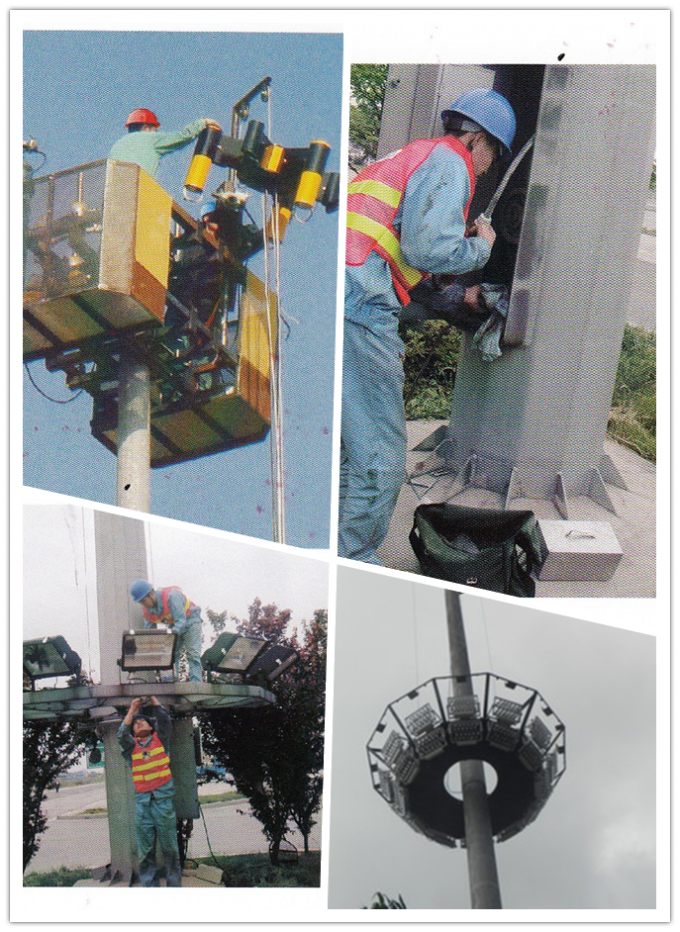

Installation:
1. high-pressure sodium lamp with external ballast and Triggers installed in light tray.
2. when replacing or repairing light and other electrical appliances, you should use special wrench to open it.
3. control box installed at the poles or the lower part of the poles
30M 3 Sections Parking Lot Lighting Solar Power Light Pole With Round Lamp Panel 1

Company instruction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
