Product Details:
Payment & Shipping Terms:
|
| MATERIAL: | S355JR | APPLICATION: | ELECTRICITY DISTRIBUTION |
|---|---|---|---|
| THICKNESS: | 2.5-10MM | SHAPE: | POLYGON |
| GALVANIZATION: | ASTM A123,average Coationg Not Less Than 85um | WELDING: | AWS D1.1,penetration 100% |
| LIFETIME: | 50 YEARS | WIND SPEED: | 160KM/H |
| ULTIMATE TENSILE STRENGTH: | 490-620MPA | ||
| High Light: | 65ft electrical power pole,2 sections electrical power pole,hot dip galvanized electrical power pole |
||
Description:
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street
,road ,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV
transmission poels ,our products have been deliveried to more than 70 contries and areas ,including
America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on

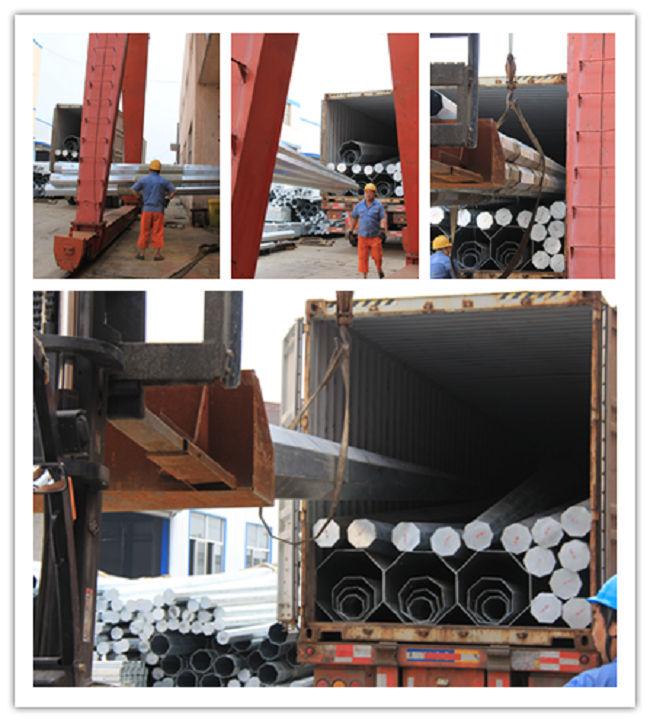

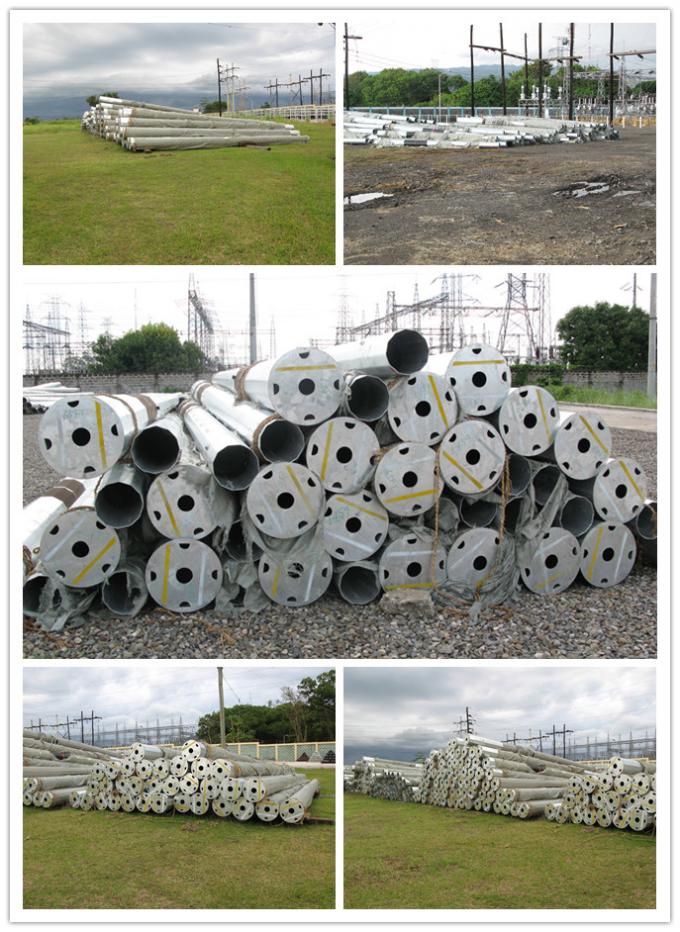

Packaging & shipping:
Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles
to avoide the damage on the galvanization of the pole ,anyway also can following by client required ,
The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification
and data.
Production Process:
As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel
pole ,and we can assure the pole we offered is of sound quality which made from qualified material with
our professional workers and advance equipment .
Specifications:
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
| Lamp power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
| Torlance of the dimenstion | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment | Hot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode . |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength |
490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal ) →Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Material:
All of our material are purchased from famous mill factory to assure the quality.
1.A mill certificate issued by the mill factory with stamp and signature must be provided before unload
the material in our factory ,otherwise we have our reason to refuse the material .
2.Before put into production ,all the material must pass the chemical and physical analysis to make
sure that they have meet the requested strength and component.
Inspection:
To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,
especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate.
3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed
QC in every manufacure steps and beofore every shipment
