Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized

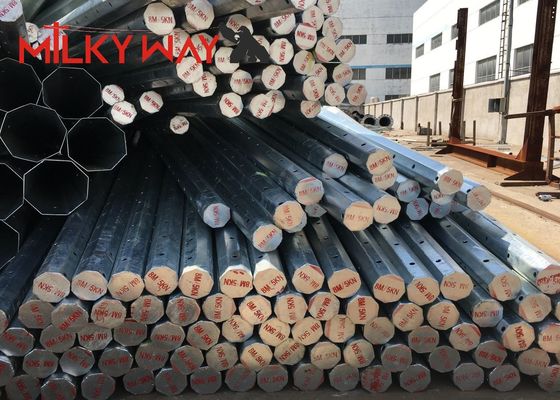

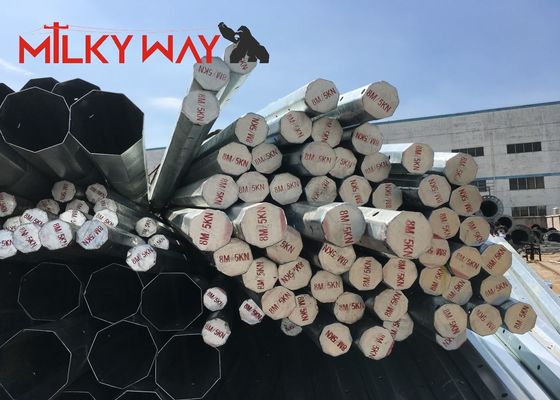

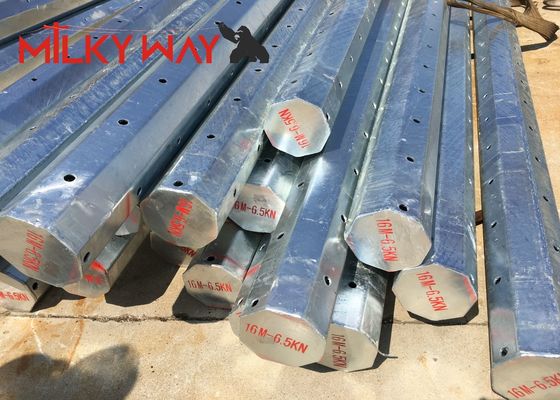

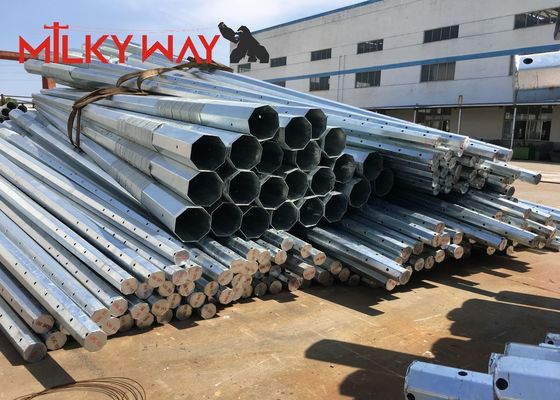

Large Image : Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized

Product Details:

Place of Origin:	China
Brand Name:	MilkyWay
Certification:	ISO9001/BV/
Model Number:	Galvanized Steel Pole

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T,L/C at sight
Supply Ability:	300pcs per day

Contact Now

Detailed Product Description

Product Name:	Galvanized Steel Pole	Application:	Tranmission Line
Design:	Customized	Surface Treatment:	Hot Dip Galvanization
Welding Standard:	AWS D1.1	Galvanization Thickness:	Average 86um
Material:	Q345
Highlight:	galvanized steel transmission pole , Q345 power transmission pole , hot dip galvanized steel pole

Strong and Sturdy Power Transmission Poles Made from Q345B/A572 and Q235B/A36 Materials

Product Specifications

Attribute	Value
Product Name	Galvanized Steel Pole
Application	Transmission Line
Design	Customized
Surface treatment	Hot dip galvanization
Welding standard	AWS D1.1
Galvanization Thickness	Average 86um
Material	Q345

Technical Specifications

Feature	Specification
Suitable For	11M 836kg Load Weight Transmission Distribution
Shape	Conoid, Multi-pyramidal, Columniform, Polygonal or Conical
Material Options	Q345B/A572 (min yield strength ≥345N/mm²), Q235B/A36 (min yield strength ≥235N/mm²), Q460, ASTM573 GR65/GR50, SS400, SS490, ST52
Dimension Tolerance	±2%
Power Capacity	10KV ~550KV
Safety Factors	8 for conducting wire, 8 for grounding wire
Design Load	300~1000kg applied 50cm from pole top
Surface Treatment	Hot dip galvanized (ASTM A123), color polyester powder, or client-specified
Joint Types	Insert mode, inner flange mode, face-to-face joint mode
Structural Design	Earthquake resistant (8 grade), withstands 160km/h (30m/s) winds
Material Strength	Min yield: 355MPa, Min tensile: 490MPa, Max tensile: 620MPa
Standards	ISO 9001, AWS D1.1 welding standard

10 Advantages of Steel Utility Poles

Easy to Handle
Light Weight
Long Life
Cost Effective
Low Maintenance
Sustainable
Durable
Safe
Aesthetic
Engineered for Strength

Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized 0

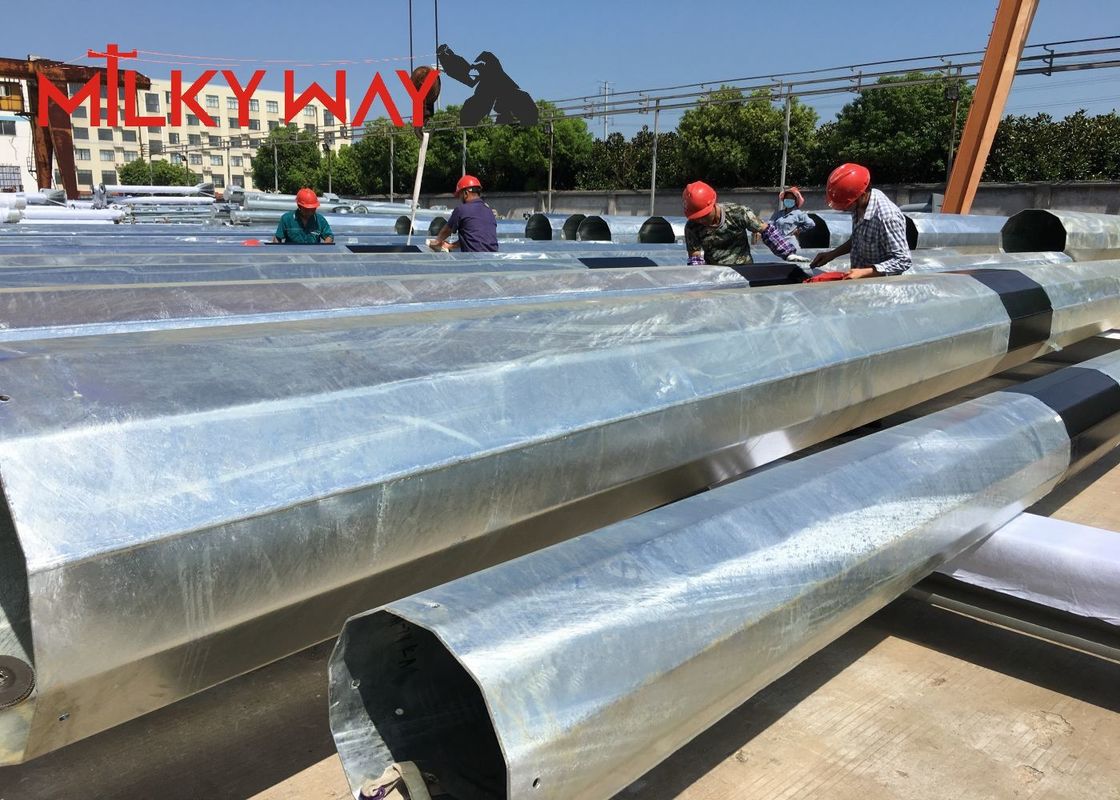

Production Process

Raw material test

Cutting

Bending

Longitudinal welding

Dimension verification

Flange welding

Hole drilling

Sample assembly

Surface cleaning

Galvanization/powder coating/painting

Recalibration

Packaging

Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized 1

Company Profile

JiangSu Milky Way Steel Poles Co., Ltd. was established in 1988 and is located in Yixing City, Jiangsu Province. With a facility covering 35,000 square meters and annual output value reaching 200 million, we have over 20 years of experience in design and production.

Our product range includes power poles, communication towers, street lighting poles, and steel brackets. We maintain strong technical capabilities, advanced production equipment, and a comprehensive quality management system, ensuring our products meet international advanced standards.
