Product Details:
Payment & Shipping Terms:
|
| Galvanization Standard: | ASTM A123 | Surface: | Hop Dip Galvanization |
|---|---|---|---|
| Thickness: | Customized | Material: | Q345, Gr65, S500 |
| Tolerance: | +/-2% | Design Load In Kg: | 300~ 1000 Kg Applicated To 50cm From The To Pole |
| High Light: | 11m utility transmission pole,110kv utility transmission pole,tapered electric transmission pole |
||

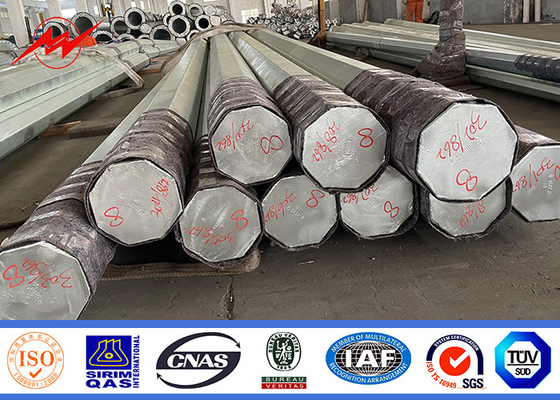

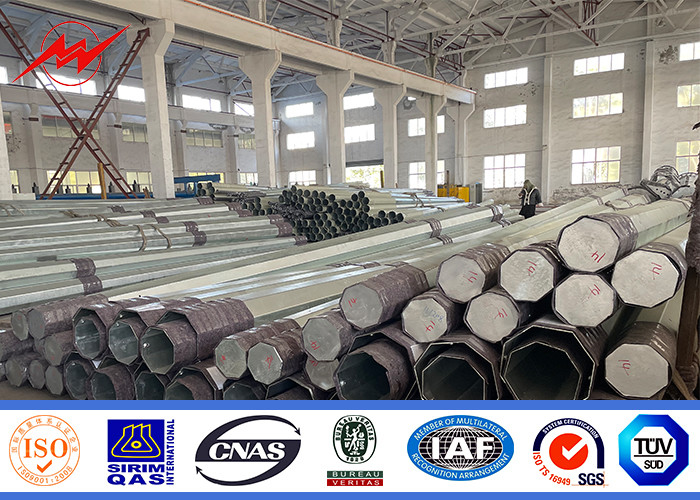

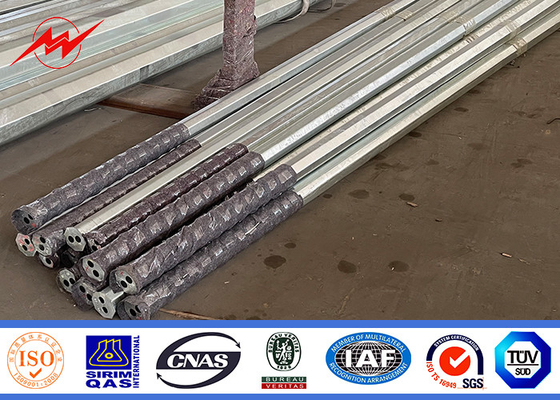

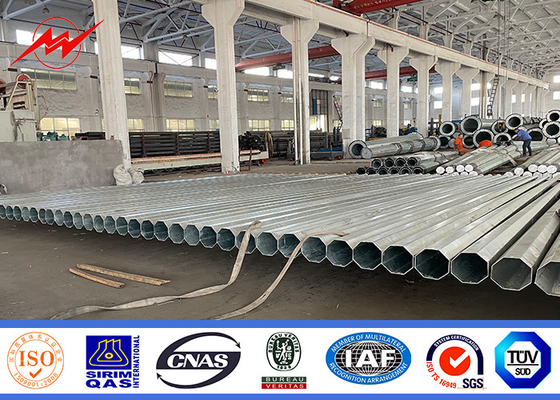

11m Q345 Gr65 material 110kv manufacturing steel pole for transmission line
To assure our products qualified ,we take steps as follows :
| Management team | We have employ the foreign export to take charge of the overall management ,especially the technical management and quality management |
| Certificate | Introducing ISO management ,We are award ISO 9001:2008 certificate |
| QC inspection | It is our company policy that all the finish product should be inspected by our specialized QC in every manufacture steps and before every shipment |
Production Process
Raw material test → Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Features
| We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole | |
| Matercial | Hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3 |
| Surface | Hot dip galvanized Following ASTM A 123 or any other stardand by client required |
| Packing | Plastic bulble , Mat &Straw Bale or following client required |
| Length | within 16meters once forming( single section) |
| Thickness | From 1mm to 25mm |
| Shape | Polygonal(6-side,8side,12-side,16side) round tapered. |
Installation
| 1 | Remove all the equipment on the pole during Assembly |
| 2 | Circle a sling around th epole shaft of each section |
| 3 | Fix the sling on top section to one pulley block. |
| 4 | The sling on the bottom section is tightly fixed and fixed at the center of gravity |
| 5 | Make the steel pole vertical by tighten the sling of the top section |
| 6 | Fix the steel pole |
| 7 | Remove the sling |
