Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Q345 | Height: | 8-12m |
|---|---|---|---|
| Thickness: | 1-30mm | Standard: | ISO 9001:2015 |
| Length Of Per Section: | Witnin 14m | Lamp Power: | 20-400W |
| Voltage: | 220V (+-10%) /50Hz | Suit For: | Square, Highway ,street Way Etc |
| High Light: | conoid steel power pole,12 m steel power pole,street light galvanised pole 12m |
||
15 years warranty 8-12m street light steel pole steel road lamp pole
Parameter
| Suit for | Airport ,seaport, plaza, stadium ,square, highway ,street way etc |
| Shape |
Conoid ,Multi-pyramidal, Columniform , polygonal or conical
|
| Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
| Lamp power |
20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
| Tolerance of the dimension | +- 2% |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade Ⅰ |
| The casing anti-corrosion performance | Class Ⅱ |
| Working atmosphere of lighting fixture | -35 °C~+45 °C |
| Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
|
| Joint of Poles |
Insert mode, inner flange mode ,face to face joint mode .
|
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001:2015 |
| Length of per section | Within 14m once forming without slip joint |
| Welding |
We has past flaw testing. Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS (American Welding Society ) D 1.1
|
| Thickness | 1 mm to 30 mm |

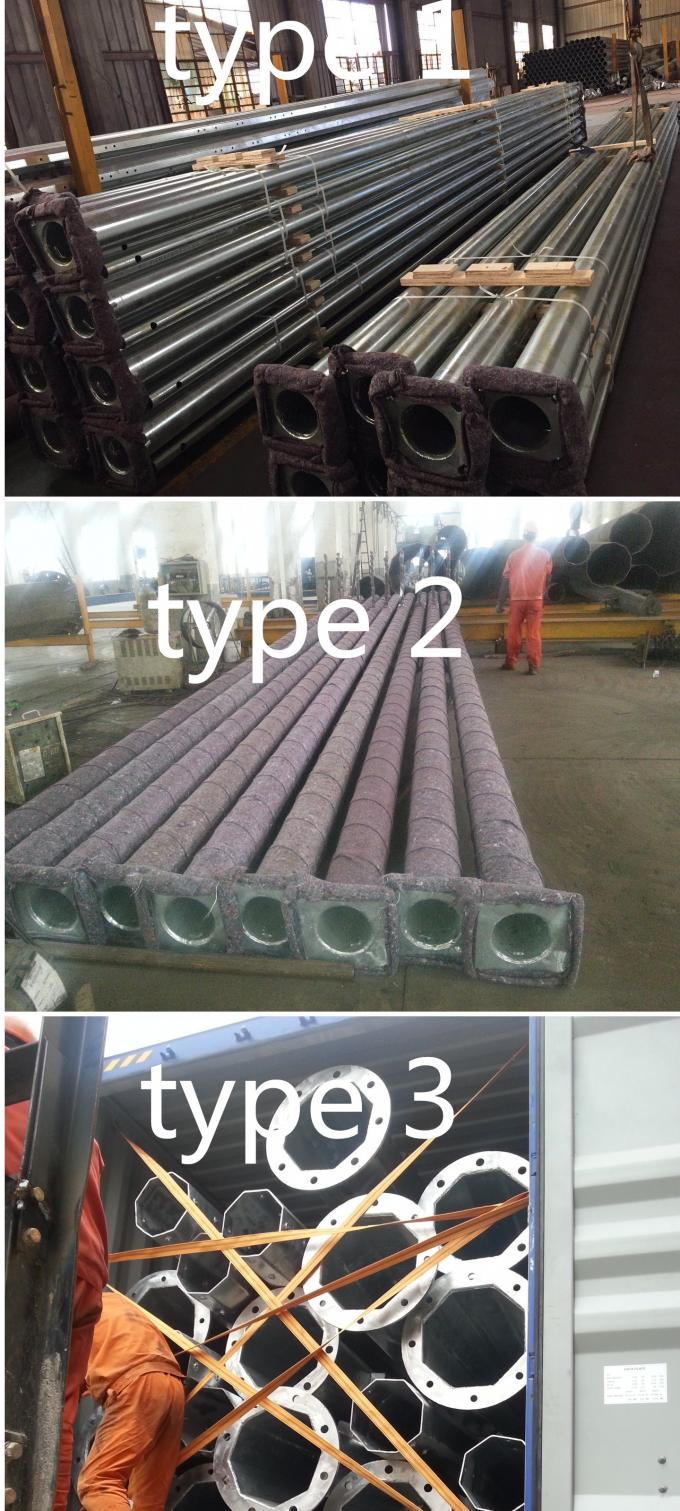

Package and delivery
The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the
top and bottom and wood between the poles to avoid the damage on the galvanization of the pole ,
anyway also can following by client required , The loading capacity of 40HC or OT an be calculated
calculation base on the client actually specification and data.
Why choose us?
| 1.Easy work: more than 23 years pole field. quickly understand your meaning and let you get your result. |
| 2.Lowest MOQ: lowest quantity from 1Ton depends on different style . |
| 3.OEM Accepted: We can produce any pole of your design. |
| 4.Good Service: We treat clients as friends. |
| 5.Good Quality: We have very strict quality control system .Good reputation in the market. |
| 6.Fast & Cheap Express service: We have big discount from forwarder (Long-term Contract with TNT,DHL,UPS,FEDEX,EMS ). |
| 7.Manufacturer Capacity : 300 pieces/day. |
Jiangsu Milky Way Steel Poles Co.,Ltd.
Estabilshed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi ,East of China ,near one of the largest sea port of China ,Shanghai ,Port .
Our Products have been widely used in the power transmission ,signal transmission and lighting for street ,road ,square ,palaestra . and so on
We have plenty of export experience . Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles ,our products have been deliveried to more than 70 countries and areas ,including America ,Australia ,Russia ,Genmery ,Span, Philippines ,Malaysia and so on
As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .
FAQ
|
Q1. How can I get a price of needed pole? |
|
A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price. 2. You can send us a drawing; we can according to your drawing give you one price. |
| Q2. I am a small wholesaler, do you accept small order? |
| A: It's no problem if you are a small wholesaler; we would like to grow up with you together. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true. |
| Q4. We want be your agent of our area. How to apply for this? |
| A: Please send your idea and your profile to delia @yin-he.com |
| Q5. Tell me about your company? |
|
A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole, power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas. |
| Q6. Do you have some special policies for Brand company? |
|
A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market. |
| Q7. Can you make Door to Door service? Because i don't know how to do customs clearance. |
|
A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time also money. |
