Product Details:
Payment & Shipping Terms:
|
| Tolerance Of Dimension: | +- 2% | Wind Resistance: | 3-500km/h |
|---|---|---|---|
| Material: | GR50 GR65 S500 S355 | Height: | 16m 18m |
| Welding: | Welding Confirms With International Welding Standard Of CWB | Powder Coating: | Pure Polyester Powder Painting, Color Is Optional |
| Design: | Against 8 Grade Of Earthquake | Product Name: | 16m 18m Height Conical Electrical Power Pole 5mm Thickness ASTM A123 Galvanization Standard |

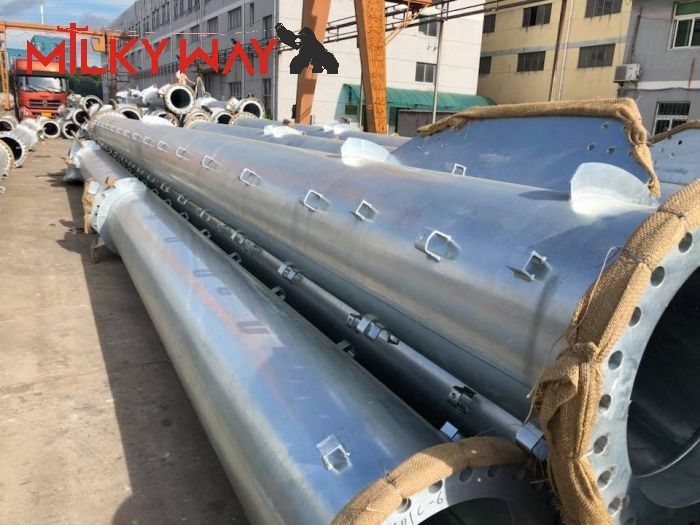

Milky Way fabricates a variety of poles for the utility industry. These steel poles are designed and tested to ensure bend resistance, load capacity, and height all meet the requirements for the application of the tower. Anchored and/or direct embed styles available.
General Notes:
Manufacturer drawings available for all poles
Poles can be modified to any configuration
Transmission and distribution arms available for any requirements
Additional surplus poles are in the process of being catalogued and added to this list
Call us to sell your surplus steel poles.
Additional 30 eliptical poles with thick shaft plate available for tight areas, especially behind sidewalks.
Technical Data Sheet(F=5KN)
| Dimension | 10m | 11m | 11.8m | 13m | 14m | 16m | 18m |
| DI(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| D2(mm) | 360 | 380 | 400 | 400 | 410 | 445 | 475 |
| T(mm) | 3 | 3 | 3 | 3 | 3.5 | 3.75 | 3.75 |
| h(m) | 1.6 | 1.8 | 1.9 | 2.1 | 2.3 | 2.6 | 3 |
Connection Type
1. Joint Type

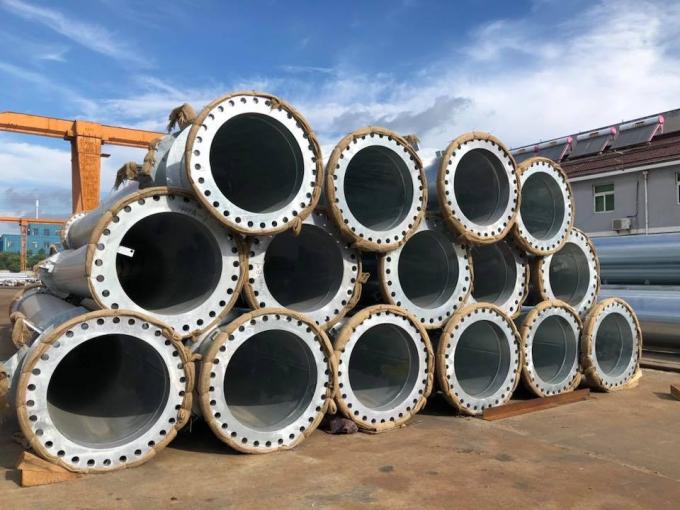

2. Flange Type
Standard Accessory
-Top plate

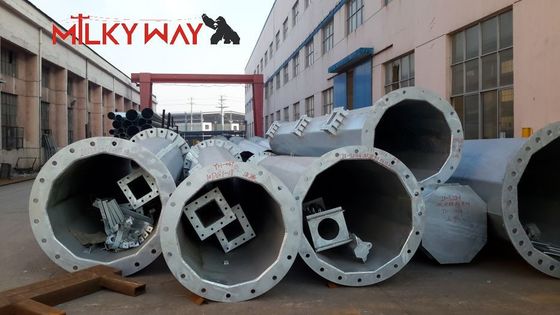

-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
Available Foundation Types
Direct Embedment
Anchor Bolt/Base Plate
Vibratory Steel Caisson
Available Finishes
Galvanized per ASTM A123
Paint over galvanized,paint over black steel
Powder Coating
