60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions

one 40HQ
MOQ
negotiation
Price
60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions
Features Gallery Product Description Request A Quote
Features
Specifications
Tolerance Of Dimension: +- 2%
Wind Resistance: 3-500km/h
Material: GR50 GR65 S500 S355
Height: 69KV 16m
Welding: Welding Confirms With International Welding Standard Of CWB
Powder Coating: Pure Polyester Powder Painting, Color Is Optional
Design: Against 8 Grade Of Earthquake
Product Name: 60FT 70FT Single Or Double Crossarm Steel Power Pole With Customizable Dimensions
Basic Infomation
Place of Origin: China
Brand Name: Milky Way
Certification: ISO//BV
Model Number: 60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions
Payment & Shipping Terms
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Product Description





Product Description


Features:



Pole’s height All available
Type Straight Pole ,Tensile Pole ,Turn Pole,etc
Shape of pole Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
Crossarm Single or double crossarm, dimension as per customers’ requirement
Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65
Wall thickness ≥2.5mm
Once forming 13m without joint



Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.
Joint Joint with insert mode, flange mode.
Base plate mounted Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanizing Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.
Voltage 10KV~550KV
Certificates ISO9001-2008 , AAA credit rating, etc
Protection Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area





Specification



60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 0





Packing & shipping





We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.

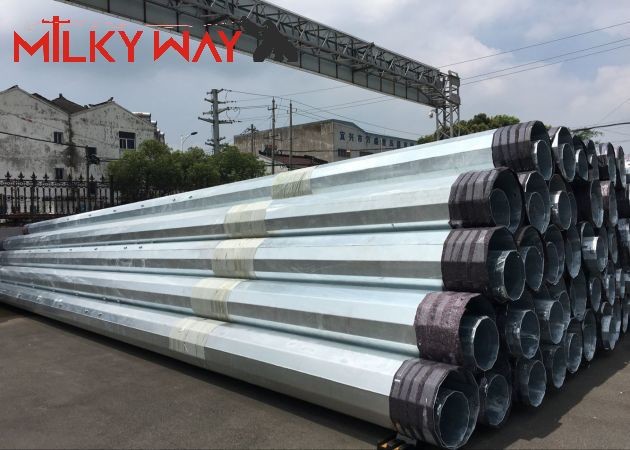

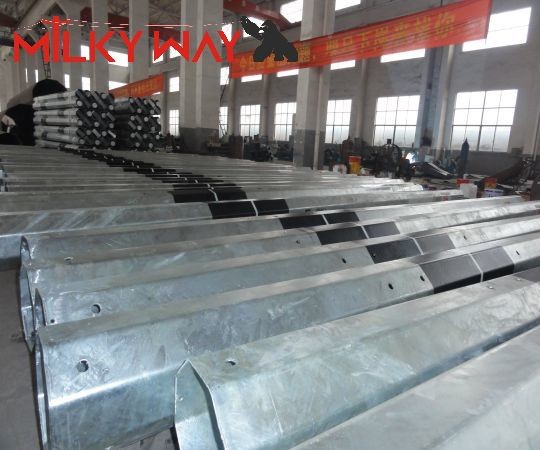

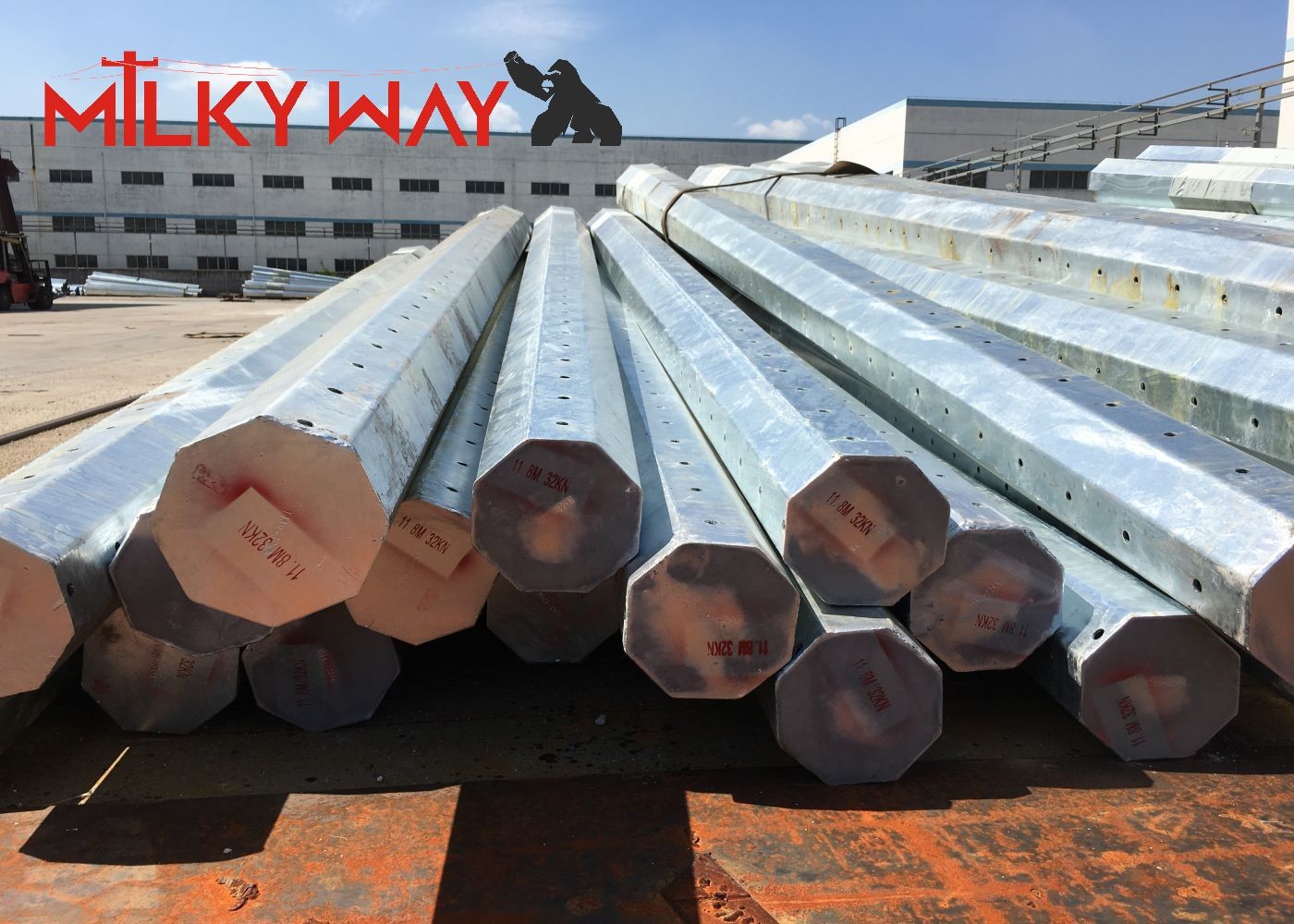

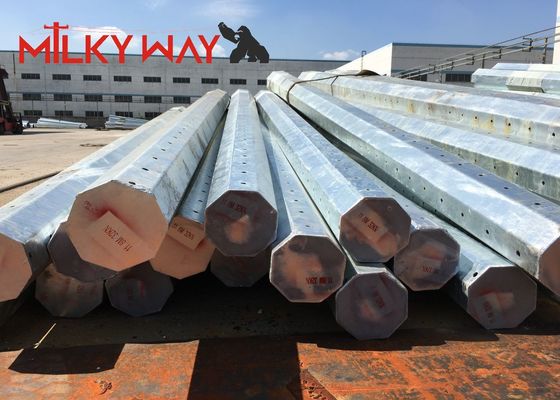

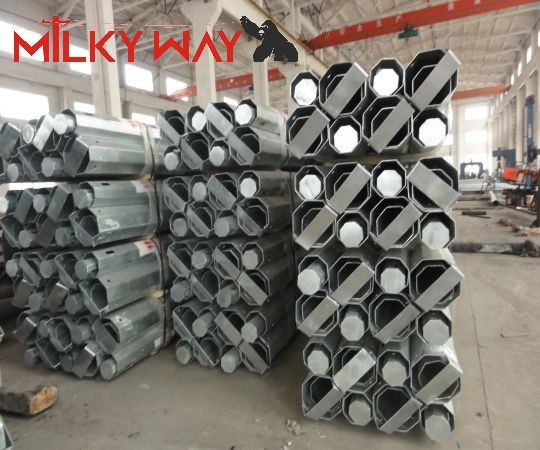

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 1



60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 2
