Product Details:
Payment & Shipping Terms:
|
| Feature: | 20-90ft | Application: | Electrical Power Transmission |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanization | Thickness: | 1-30mm |
| Protective Level: | IP65 | Shape: | Round Polygonal |
| Size: | Customized Drawing | Voltage: | 10-550kv |
| Certification: | ISO BV | ||
| High Light: | 33kv Steel Power Pole,Philippines Steel Power Pole,90ft Steel Power Distribution Pole |
||

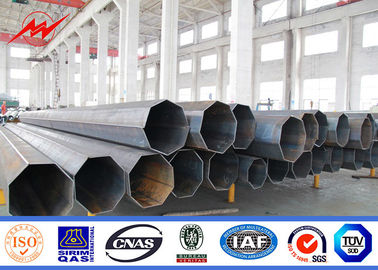

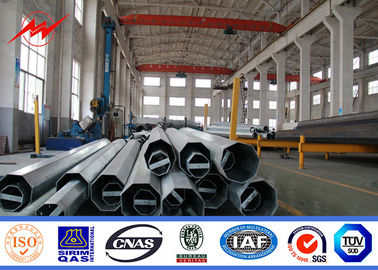

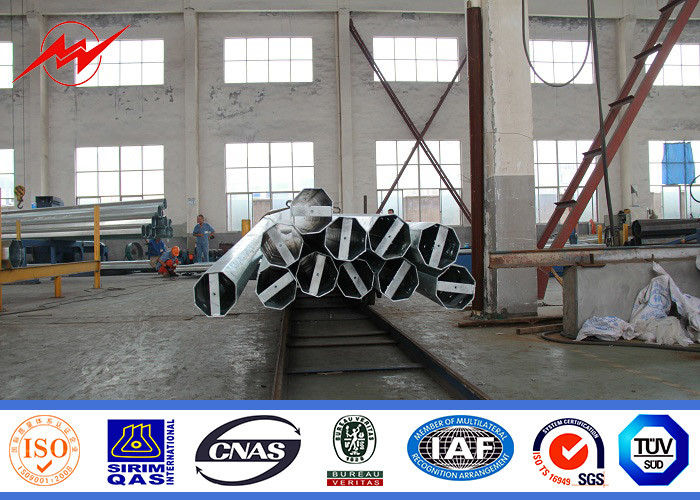

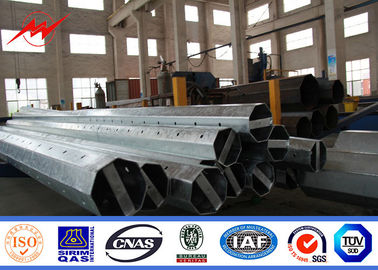

33kv Philippines Steel Power Pole With Angle Arms For Power Distribution
Product Description
Type | Straight Pole ,Tensile Pole ,Turn Pole |
Material: | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
Marks | Nane plate through rivert or glue ,engrave ,emboss as per customer requirement |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Insert mode,inner flange mode,face to face joint mode . |
Design of pole | Against earthquake of 8 grade |
Length of per section | Within 14m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |

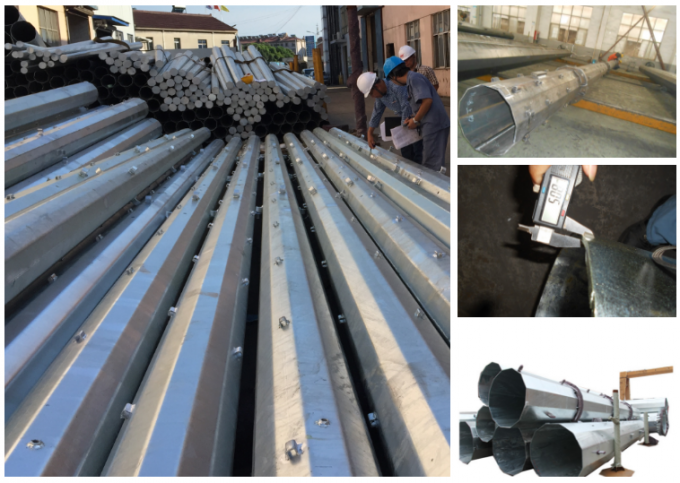

Production Process | Raw material test → Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Minimum yield strength | 355mpa |
Minimum ultimate tensile strength | 490mpa |
Max ultimate tensile strength | 620mpa |
Asides above, we can also supply the poles based on customer's request. And different specification poles with different price. On the other side, the price is according to each pole weight. The heavier the more expensive. So to save the cost, our factory has the professional technical team to design the practical poles and save the cost for our clients.
FAQ
Q1. How can I get a price of needed pole?
A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price.
2. You can send us a drawing; we can according to your drawing give you one price.
Q2. I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler; we would like to grow up with you together.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.
Q4. We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to delia @yin-he.com
Q5. Tell me about your company?
A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole,power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas.
Q6. Do you have some special policies for Brand company?
A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market.
Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.
A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time also money.
